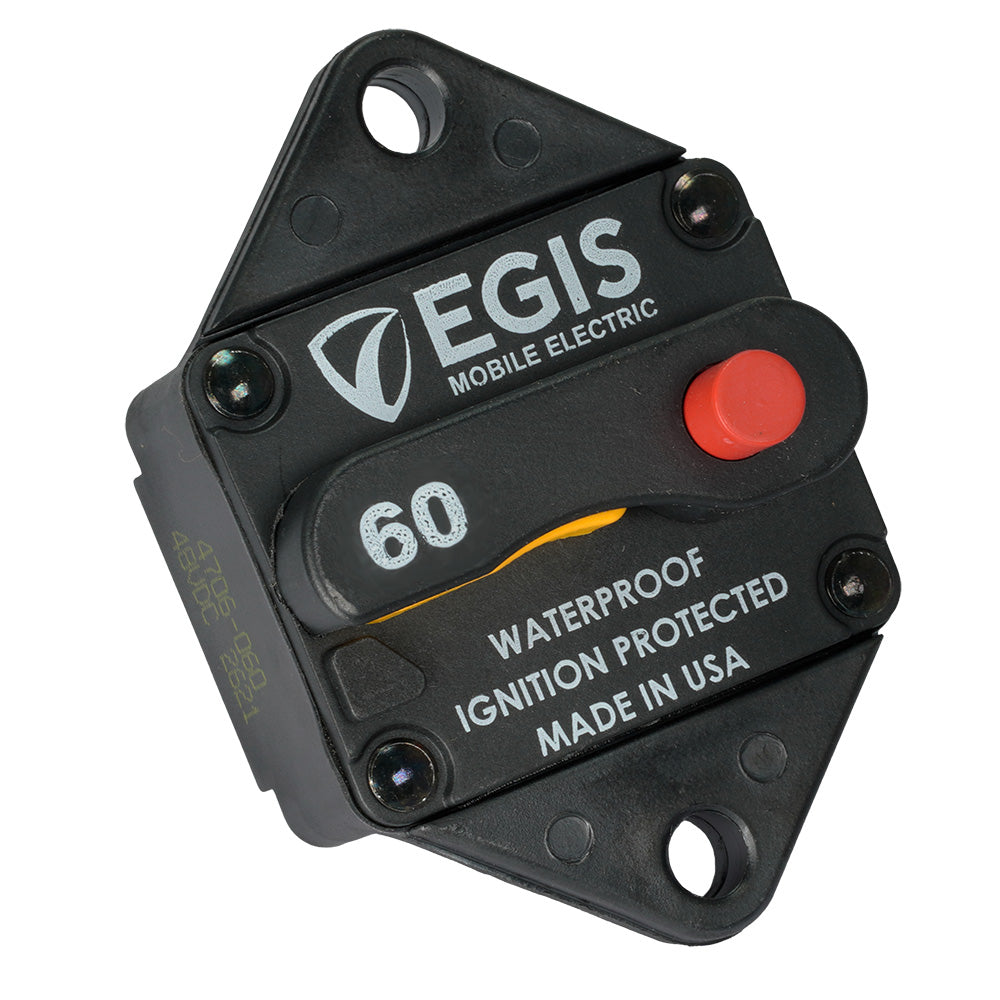

Egis 60A Panel Mount Circuit Breaker - 285 Series

This 60A Egis panel mount circuit breaker is specifically designed for marine and boating applications, providing robust protection for your vessel’s electrical systems. Engineered to prevent short-circuits and over-current scenarios, it safeguards your wiring from overheating and potential damage, ensuring reliable performance even in the harshest marine environments.

Applications

• Integrates automatic circuit protection with manual on/off switching for dual functionality in a compact, reliable unit.
• Enables easy isolation and maintenance of electrical circuits, allowing for safe switching and protection adjacent to battery systems, regardless of their location on the vessel.

Features

• Durable Sealing: IP67 rated to protect against dust and water intrusion, ensuring long-lasting performance in marine conditions.
• High Voltage Rating: Supports up to 48 Vdc, ideal for 12V and 24V systems, and provides enhanced protection for 36V and 48V setups without the need for fuses.
• Exceptional Switching Endurance: Capable of handling 6,000 manual switching cycles at full current, ensuring dependable operation over time.
• High Interrupt Current Capacity: Safeguards circuits connected to large paralleled battery banks with substantial available power.
• 4-Year Warranty: Backed by Egis, ensuring confidence in the product’s ability to meet your marine electrical needs.

Specifications

Parameter	Specification
Continuous Current	60A
Max Voltage	48 Vdc
Cycling Endurance	6,000 cycles
Interrupt Current @16 Vdc	5,000 A
Interrupt Current @28 Vdc	3,000 A
Ingress Protection Rating	IP67
Box Dimensions	3"H x 3"W x 4"L
Weight	0.2 lbs
UPC	850035199046

Focal Features

ON/OFF High Visibility Controls

Designed with high-visibility switches, this circuit breaker allows for easy operation and quick identification of the circuit state. Its sealed construction prevents dust and moisture ingress, making it suitable for all installation locations with high-temperature resistance.

Panel Mount Flange

Offers flexible installation options with both rear and front panel mounting capabilities, ensuring seamless integration into your vessel’s electrical panel.

Stainless Steel Hardware & KEPS Locking Nuts

Constructed with corrosion-resistant stainless steel hardware and secure KEPS locking nuts to withstand the vibrations and harsh conditions typical in marine environments.

Proudly Made in the USA

Manufactured in the USA using premium quality components, ensuring top-notch reliability and performance for your marine electrical systems.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Specifications

• Amperage: 60A
• Box Dimensions: 3"H x 3"W x 4"L
• Weight: 0.2 lbs
• UPC: 850035199046

Download the Quick Guide (PDF)
