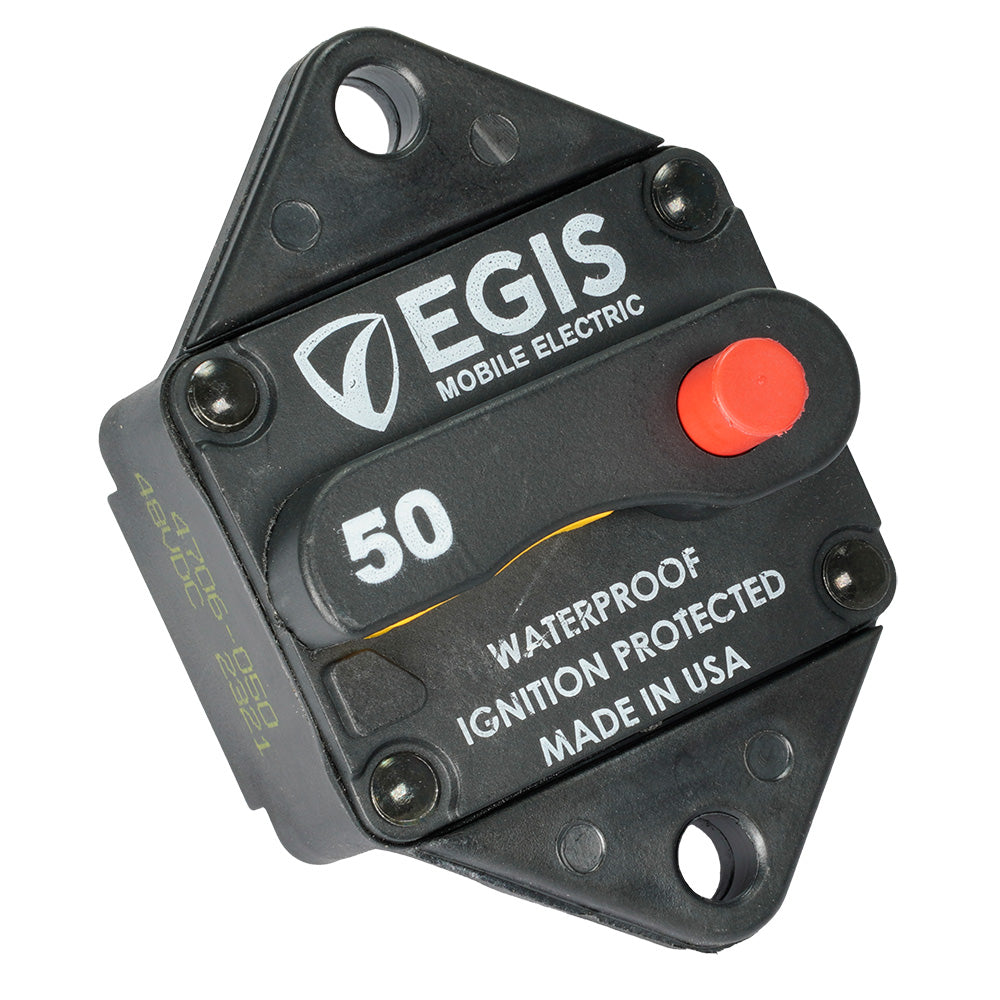

Egis 50A Panel Mount Circuit Breaker - 285 Series

The 50A Panel Mount Circuit Breaker - 285 Series is essential for safeguarding your marine electrical systems. Designed specifically for the demanding environments of boating, this circuit breaker ensures reliable protection against short circuits and over-current scenarios, preventing potential damage to your vessel's wiring and electrical components.

Reliable Marine Electrical Protection

Equip your boat with the 50A Egis panel mount circuit breaker to ensure the safety and longevity of your electrical installations. Whether you're cruising the open seas or navigating coastal waters, this circuit breaker offers robust protection and seamless integration into your marine electrical setup.

Applications

• Combines automatic circuit protection with manual on/off switching for dual functionality in a compact, space-saving design.
• Enables easy isolation and maintenance of load circuits, allowing you to manage and service your boat's electrical systems efficiently.

Features

• Sealed Construction: Protected against dust and water ingress with an IP67 rating, ensuring reliable operation in harsh marine environments.
• High Voltage Rating: Supports up to 48 Vdc, making it ideal for 12V and 24V marine applications while providing enhanced protection for 36V and 48V systems compared to traditional fuses.
• Durable Switching Mechanism: Rated for 6,000 manual switching cycles at full current, ensuring long-lasting performance even with frequent use.
• High Interrupt Current: Capable of safely interrupting up to 5,000 Amps at 16 VDC and 3,000 Amps at 28 VDC, protecting circuits connected to large battery banks with substantial power availability.
• 4-Year Warranty: Backed by Egis, guaranteeing the product's reliability and performance for your marine electrical needs.

Specifications

Parameter	Value
Continuous Current Amps	50A
Maximum Voltage	48 Vdc
Cycling Endurance	6,000 cycles
Interrupt Current @16 VDC	5,000 Amps
Interrupt Current @28 VDC	3,000 Amps
Ingress Protection Rating	IP67
Box Dimensions	3"H x 3"W x 5"L
Weight	0.3 lbs
UPC	850035199039

Key Features for Marine Use

High Visibility Controls: Easily monitor and control your electrical circuits with clearly marked ON/OFF switches, ensuring safe operation even in low-light conditions.

Flexible Panel Mounting: The included flange allows for both rear and front panel installation, providing versatile mounting options to fit your boat's electrical panel layout.

Marine-Grade Hardware: Stainless steel hardware and KEPS locking nuts resist corrosion and vibration, making this circuit breaker ideal for the harsh, saltwater-exposed environments common in marine settings.

Made in the USA: Proudly manufactured in the USA using high-quality components, ensuring top-notch reliability and performance for your marine electrical systems.
