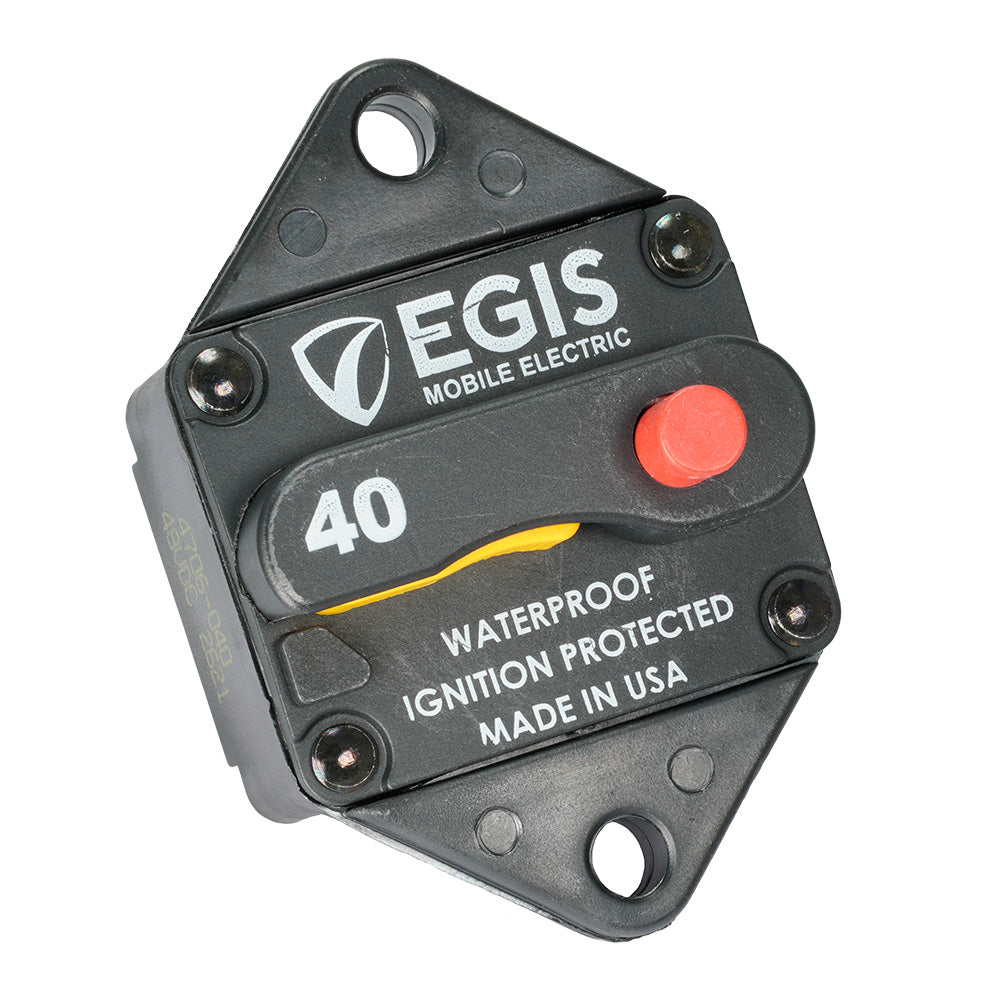

Egis 40A Panel Mount Circuit Breaker - 285 Series

The 40A Egis Panel Mount Circuit Breaker - 285 Series is an essential component for marine electrical systems, providing robust protection against short circuits and over-current scenarios. Designed specifically for the harsh marine environment, this circuit breaker ensures the safety and reliability of your boat’s electrical installations.

Key Features

• Dual Functionality: Combines automatic circuit protection with manual on/off switching, offering a reliable and compact solution for marine applications.
• Easy Circuit Isolation: Facilitates maintenance and load circuit management with convenient switching, ideal for installation adjacent to battery systems in any location on your vessel.

Advanced Protection

• Durable Sealing: Engineered to be dust and water-resistant (IP67 rating), ensuring long-lasting protection in the marine environment.
• High Voltage Rating: Supports 12V and 24V DC applications effortlessly, while providing enhanced protection for 36V and 48V DC systems compared to traditional fuses.
• Superior Endurance: Capable of handling up to 6,000 manual switch cycles at full current, ensuring longevity and reliability.
• High Interrupt Current: Effectively safeguards circuits connected to large paralleled battery banks with significant power availability.
• 4-Year Warranty: Egis guarantees the product’s performance, standing behind its quality and reliability for marine users.

Technical Specifications

Specification	Details
Continuous Current (Amps)	40A
Maximum Voltage	48 VDC
Cycling Endurance	6,000 cycles
Interrupt Current @16 VDC	5,000 Amps
Interrupt Current @28 VDC	3,000 Amps
Ingress Protection Rating	IP67
Box Dimensions	3" H x 3" W x 5" L
Weight	0.3 lbs
UPC	850035199022

Focal Features

• High Visibility Controls: Clearly marked ON/OFF switches for easy operation in low-light marine settings. Sealed against dust and moisture with a high-temperature rating suitable for all installation locations.
• Flexible Mounting Options: Panel mount flange allows for both rear and front panel installation, providing versatility in your boat’s electrical setup.
• Premium Hardware: Stainless steel hardware and KEPS locking nuts offer corrosion and vibration resistance, perfect for the demanding marine environment.
• Made in the USA: Manufactured in the USA using high-quality components, ensuring durability and performance for your marine electrical systems.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF)
