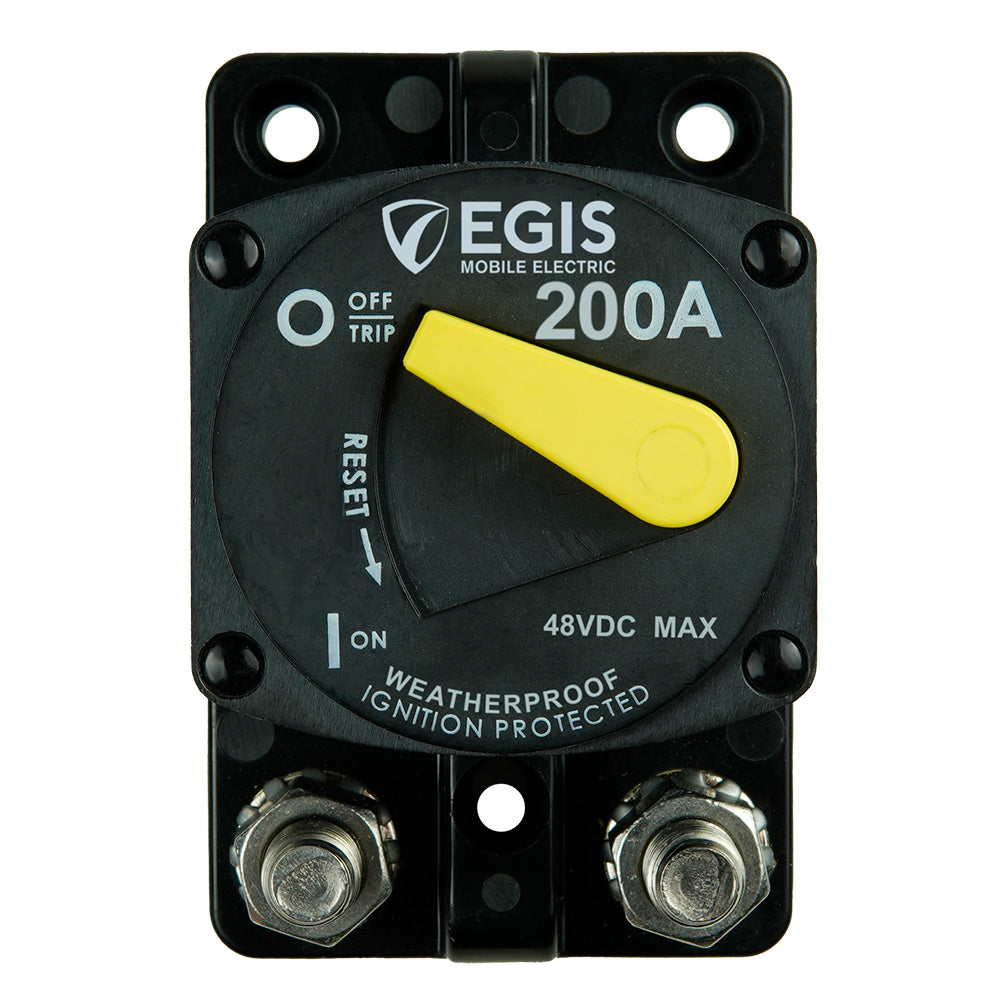

Egis 200A Surface Mount 87 Series Circuit Breaker

The 200A Surface Mount 87 Series Circuit Breaker from Egis is an essential component for marine and boating electrical systems, providing robust protection against short circuits and over-current loads. Designed to prevent wire insulation overheating and potential damage, this circuit breaker ensures the safety and reliability of your vessel's electrical installations.

Key Applications

• Combines automatic circuit protection with manual on/off switching, offering dual functionality in a compact and reliable design ideal for marine environments.
• Facilitates circuit isolation and maintenance of load circuits, featuring convenient switching and integral protection suitable for mounting near battery systems in various locations on your boat.

Outstanding Features for Marine Use

• IP66 Sealing: Fully sealed against dust and water intrusion, ensuring dependable circuit protection even in harsh marine conditions.
• High Voltage Rating: Supports up to 48 Vdc, making it compatible with 12V and 24V DC applications commonly found in marine electrical systems, while providing advanced protection for 36V and 48V DC setups.
• Durable Switching Endurance: Capable of 2,000 electrical/manual switching cycles at full current, ensuring long-lasting performance in demanding marine environments.
• High Interrupt Current: Effectively safeguards circuits connected to large, paralleled battery banks, which are typical in marine setups with substantial available power.
• 4-Year Warranty: Backed by Egis's commitment to quality, offering peace of mind for your maritime electrical installations.

Technical Specifications

Specification	Details
Continuous Current (Amps)	200A
Maximum Voltage	48 Vdc
Cycling Endurance	2,000 cycles
Interrupt Current @14 Vdc	5,000 Amps
Interrupt Current @28 Vdc	3,000 Amps
Ingress Protection Rating	IP66
Box Dimensions	3"H x 3"W x 4"L
Weight	0.6 lbs
UPC	850035199381

Focal Features for Optimal Marine Performance

High Visibility ON/OFF Controls

Featuring clearly marked controls that are easy to identify and operate, even in low-light conditions common on boats. The unit is sealed against dust and moisture, ensuring reliable performance in all weather conditions.

Reinforced Mounting

Equipped with reinforced mounting tabs designed to withstand the vibration and movement typical in marine environments, ensuring long-term structural reliability.

Stainless Steel Hardware & Serrated Flange Nuts

Constructed with corrosion-resistant stainless steel hardware and serrated flange nuts, this circuit breaker is built to endure the harsh, salty conditions of maritime settings.

Proudly Made in the USA

Manufactured in the USA using high-quality components, ensuring superior craftsmanship and adherence to strict quality standards.

Additional Resources

Download the Quick Guide (PDF)
