Egis 200A Panel Mount 87 Series Circuit Breaker

The 200A Egis Mobile 187 Series Circuit Breaker is engineered specifically for marine and boating applications, ensuring optimal protection and reliable performance for your vessel’s electrical systems. Designed to safeguard your boat’s circuits from short circuits and thermal overloads, this robust circuit breaker also provides dependable manual switching, allowing for seamless live load management even in demanding marine environments.

Applications

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent damage.
• Combines automatic circuit protection with manual on/off switching, delivering dual functionality in a compact and reliable solution.
• Enables circuit isolation and maintenance of load circuits with convenient switching, making it ideal for installation adjacent to battery systems regardless of vessel location.

Features

• IP66 Sealed: Provides complete protection against dust and water intrusion, ensuring reliable circuit protection throughout the life of your marine electrical system.
• High Voltage Rating: Rated for 48 Vdc, it easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc systems.
• Durable Switching Endurance: Delivers up to 2,000 manual switching cycles at full current, ensuring long-lasting performance even in harsh marine conditions.
• High Interrupt Current Capability: Safely protects circuits connected to large paralleled battery banks with significant available power, essential for high-demand marine setups.
• 4-Year Warranty: Backed by Egis, this circuit breaker is built to meet and exceed your marine electrical needs.

Specifications

Specification	Details
Continuous Current	200A
Maximum Voltage	48 Vdc
Cycling Endurance	2,000 cycles
Interrupt Current @14 Vdc	5,000 Amps
Interrupt Current @28 Vdc	3,000 Amps
Ingress Protection Rating	IP66
Box Dimensions	3"H x 3"W x 4"L
Weight	0.4 lbs
UPC	850053879128

Focal Features

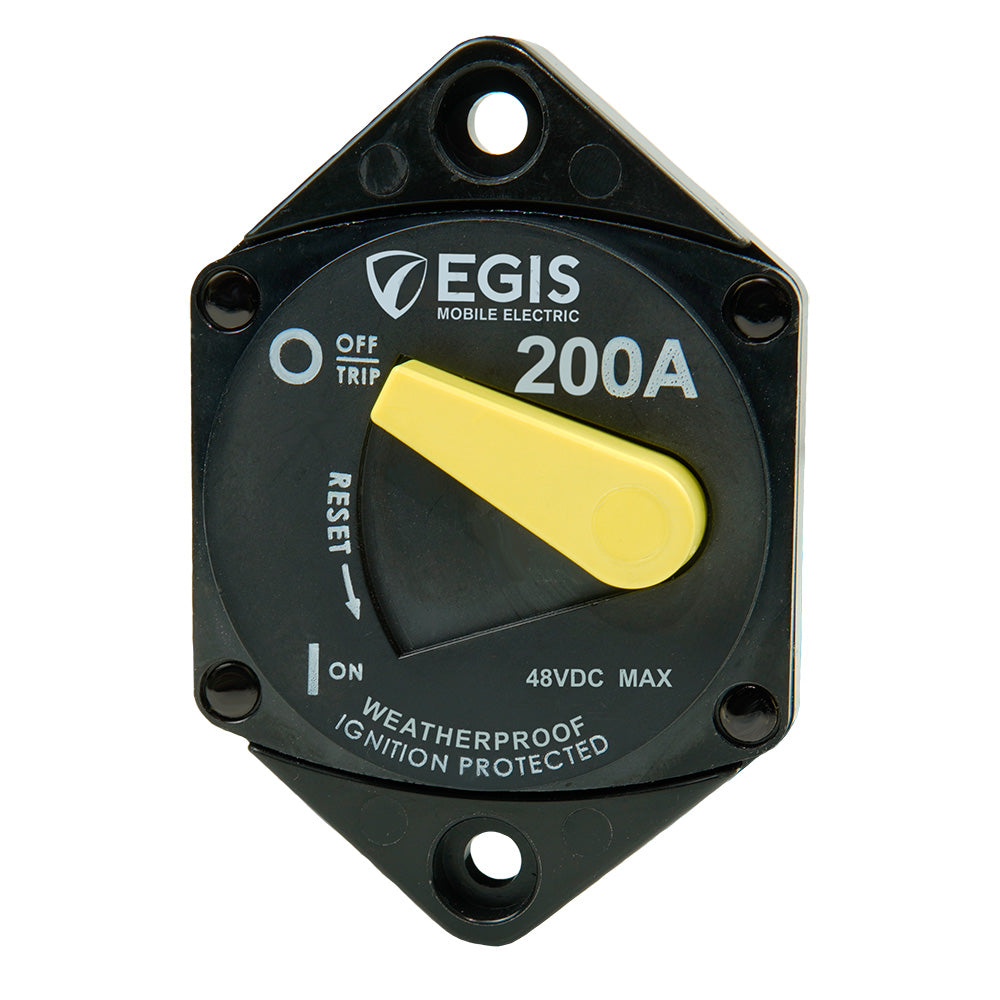

ON/OFF High Visibility Controls

Designed with high-visibility controls, this circuit breaker ensures easy operation even in low-light conditions common on boats. The unit is sealed against dust and moisture, and it has a high-temperature rating suitable for all installation locations on your vessel.

Circular Design

The circular design is compatible with round cutout panel installations, making it straightforward to mount the breaker into your chosen marine panels.

Stainless Steel Hardware

Equipped with stainless steel hardware and serrated flange nuts, this circuit breaker offers exceptional resistance to corrosion and vibration, essential for the harsh and variable conditions experienced at sea.

Proudly Made in the USA

Manufactured in the USA using high-quality components, the Egis Mobile 187 Series Circuit Breaker stands as a testament to reliable American engineering and craftsmanship.

Warranty

4-Year Warranty - Egis stands behind the quality and durability of its circuit breakers, offering a comprehensive warranty to ensure customer satisfaction and product reliability.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)
