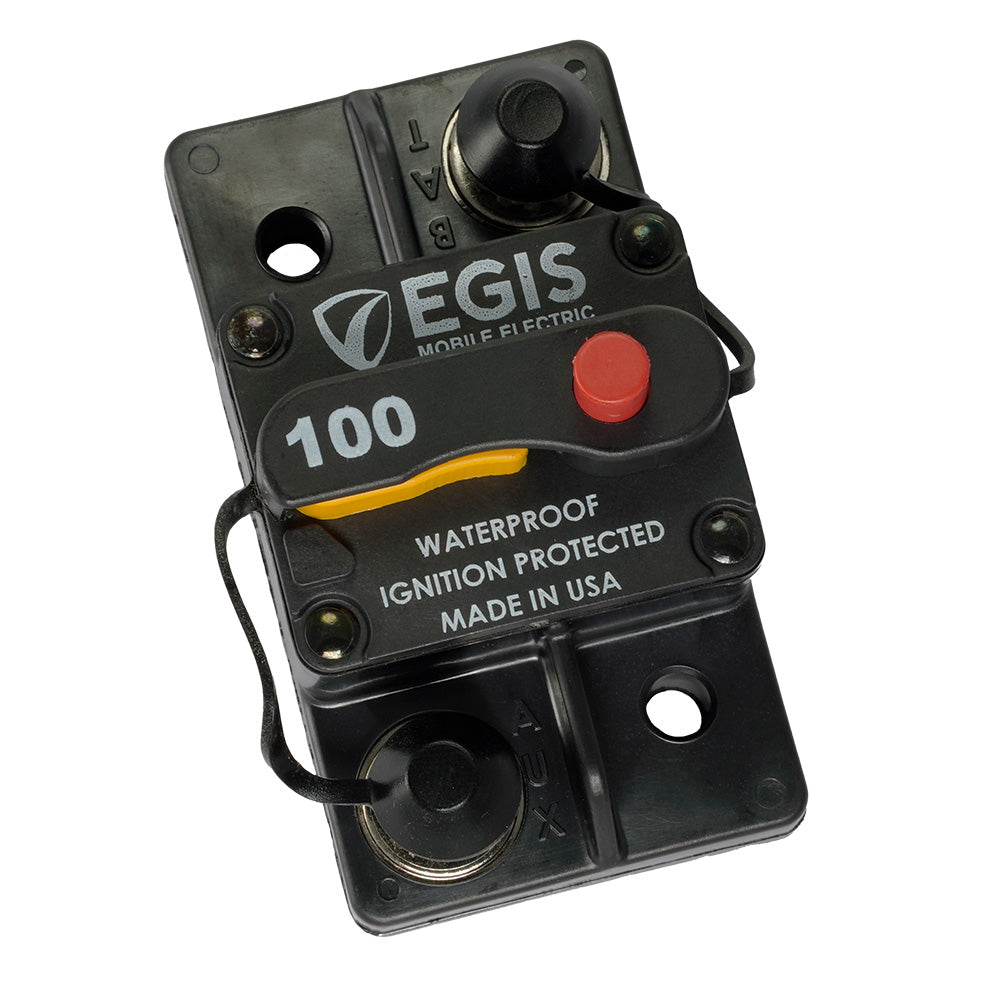

Egis 100A Surface Mount Circuit Breaker - 285 Series

The Egis 100A Surface Mount Circuit Breaker - 285 Series is an essential component for marine electrical systems, ensuring robust protection against short circuits and over-current conditions. Designed specifically for the demanding environments of boating and marine applications, this circuit breaker guarantees the safety and longevity of your vessel's electrical infrastructure.

Key Features

• Dual Functionality: Combines automatic circuit protection with manual on/off switching in a single, compact device.
• Marine-Grade Durability: Sealed against dust and water intrusion with an IP67 rating, ensuring reliable performance in harsh marine environments.
• High Voltage Rating: Supports up to 48 Vdc, making it versatile for 12V and 24V DC applications while providing advanced protection for higher voltages.
• Long-Lasting Performance: Endures up to 6,000 switching cycles at full current, ensuring longevity even with frequent use.
• Superior Interrupt Current: Capable of handling high interrupt currents, protecting circuits connected to large paralleled battery banks with significant power availability.
• Integrated Safety Features: Includes terminal insulators to prevent accidental shorts and stainless steel hardware with serrated flange nuts for enhanced corrosion and vibration resistance.
• Warranty: Backed by a 4-year warranty, demonstrating Egis's commitment to quality and reliability.
• Made in the USA: Crafted from high-quality components to meet rigorous marine standards.

Applications

Ideal for a wide range of marine and boating electrical systems, the Egis 100A Surface Mount Circuit Breaker is perfect for:

• Protecting critical electrical circuits from short-circuit and over-current events.
• Isolating and maintaining load circuits with convenient switching capabilities.
• Mounting adjacent to battery systems in any location on your vessel.
• Ensuring safe operation of large paralleled battery banks in marine setups.

Technical Specifications

Specification	Details
Continuous Current	100A
Maximum Voltage	48 Vdc
Cycling Endurance	6,000 cycles
Interrupt Current @16 Vdc	5,000 Amps
Interrupt Current @28 Vdc	3,000 Amps
Ingress Protection Rating	IP67
Box Dimensions	3"H x 3"W x 5"L
Weight	0.2 lbs
UPC	850035199176

Focal Features

ON/OFF High Visibility Controls

Designed for easy operation, the high-visibility controls allow quick identification of the circuit status. The unit is sealed against dust and moisture, ensuring reliable performance in all installation locations, even those exposed to high temperatures.

Integrated Terminal Insulators

Advanced insulation prevents accidental shorts by protecting the positive terminals from coming into contact with adjacent grounded surfaces, enhancing the overall safety of your marine electrical system.

Stainless Steel Hardware & Serrated Flange Nuts

Constructed with corrosion-resistant stainless steel hardware and serrated flange nuts, this circuit breaker withstands the harsh, salty marine environment and vibrations typical on boats.

Made in the USA

Manufactured in the United States using high-quality components, the Egis 100A Surface Mount Circuit Breaker ensures dependable performance and supports local manufacturing standards.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For a quick start, refer to the Quick Guide (PDF).
