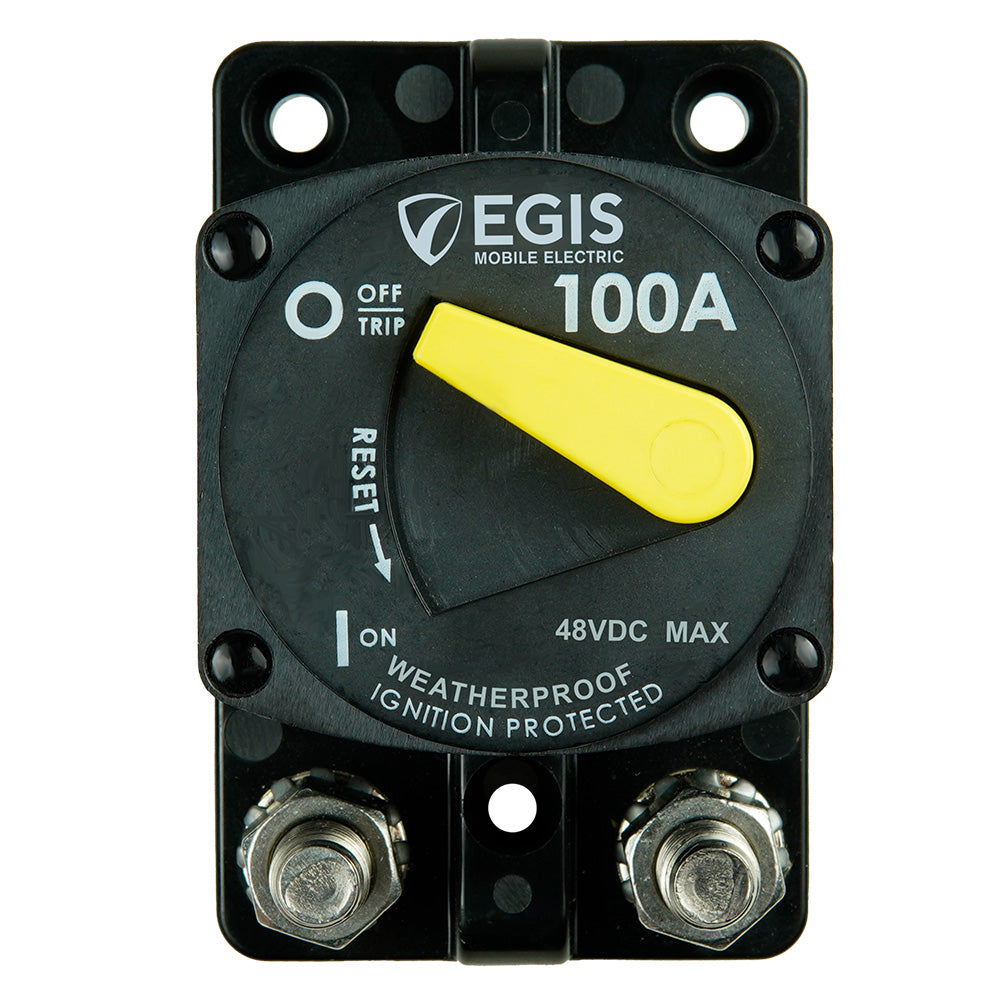

Egis 100A Surface Mount 87 Series Circuit Breaker

The 100A Egis Surface Mount 87 Series Circuit Breaker is an essential component for marine electrical systems, providing reliable protection against short-circuits and over-current situations to ensure the safety and longevity of your boat's electrical infrastructure.

Key Features

• IP66 Rated: Sealed against dust and water intrusion, ensuring dependable circuit protection in harsh marine environments.
• High Voltage Compatibility: Supports 12V and 24V DC applications with advanced protection for 36V and 48V DC systems.
• Durable Switching Endurance: Capable of 2,000 electrical and manual switching cycles at full current, ensuring long-term reliability.
• High Interrupt Current: Safeguards circuits connected to large paralleled battery banks with significant available power.
• 4-Year Warranty: Backed by Egis, assuring the product meets your marine electrical protection needs.

Applications

• Provides automatic circuit protection combined with manual on/off switching in one compact and reliable unit.
• Enables circuit isolation and maintenance, allowing for safe servicing of load circuits without interrupting the entire system.
• Designed for mounting adjacent to battery systems, adaptable to various locations on your vessel.

Specifications

Specification	Details
Continuous Current Amps	100A
Maximum Voltage	48 VDC
Cycling Endurance	2,000 cycles
Interrupt Current @14 VDC	5,000A
Interrupt Current @28 VDC	3,000A
Ingress Protection Rating	IP66
Box Dimensions	3"H x 3"W x 4"L
Weight	0.6 lbs
UPC	850035199350

Enhanced Features for Marine Use

• High Visibility Controls: Easy-to-see ON/OFF switches, ensuring quick operation even in low-light conditions.
• Reinforced Mounting: Built with reinforced mounting tabs to withstand vibration and stress common on vessels.
• Stainless Steel Hardware & Serrated Flange Nuts: Resistant to corrosion and vibration, ideal for harsh marine environments.
• Made in the USA: Constructed with high-quality components for reliable performance on your boat.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Download the Quick Guide (PDF)
