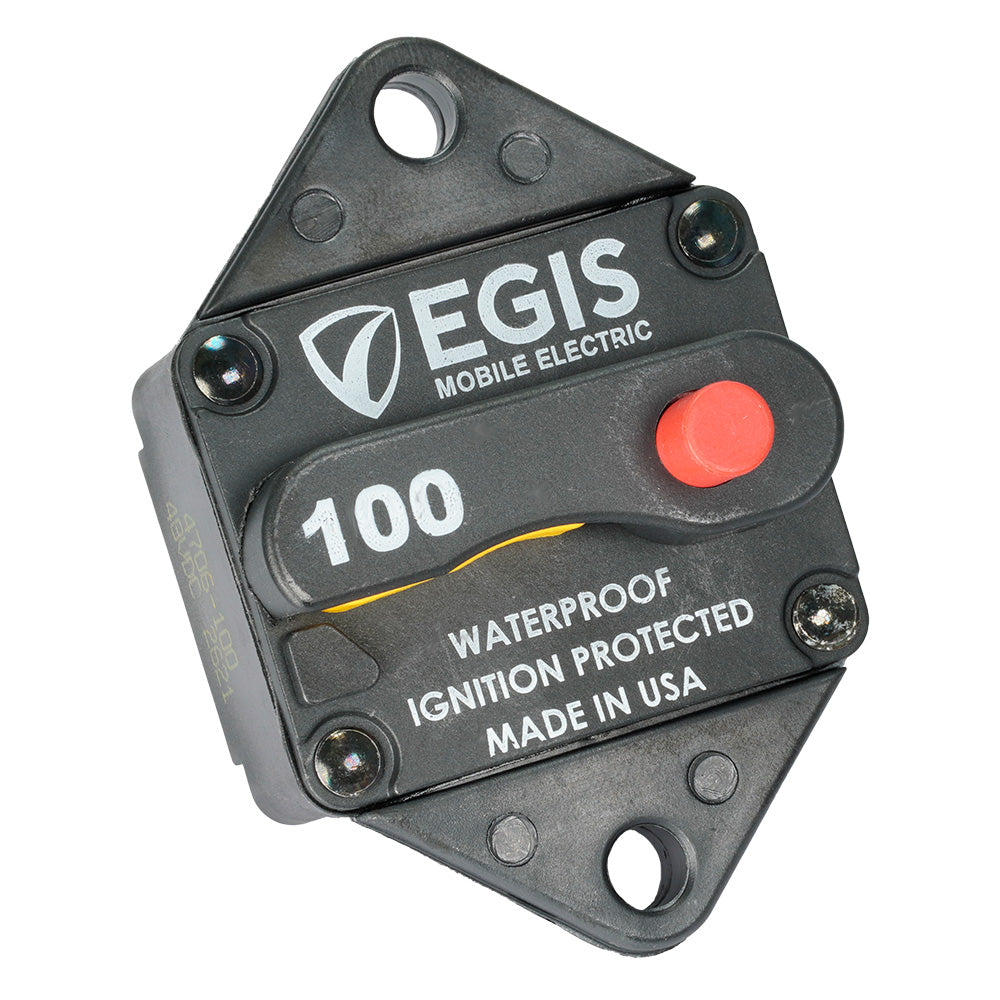

Egis 100A Panel Mount Circuit Breaker - 285 Series

Enhance the safety and reliability of your marine electrical systems with the 100A Panel Mount Circuit Breaker - 285 Series. Designed specifically for demanding marine environments, this circuit breaker ensures optimal performance and protection for your boat's electrical circuits.

Key Benefits

• Protects against short-circuits and over-current, preventing wire insulation damage and potential electrical failures.
• Combines automatic circuit protection with manual on/off switching for versatile and compact control.
• Facilitates easy circuit isolation and maintenance, allowing for hassle-free management of your boat's electrical load.
• Durable construction suitable for harsh marine environments, ensuring long-term reliability.

Applications

• Ideal for marine electrical systems, including battery banks, navigation equipment, and onboard electronics.
• Perfect for both recreational and commercial vessels requiring robust electrical protection.
• Suitable for installation adjacent to battery systems, regardless of their location on the boat.

Features

• Sealed Construction: IP67 ingress protection ensures resistance against dust and water, providing reliable circuit protection in maritime conditions.
• High Voltage Rating: Rated for 48 Vdc, it efficiently supports 12V and 24V applications while offering superior protection for 36V and 48V systems, outperforming traditional fuses.
• Exceptional Endurance: Delivers up to 6,000 manual switching cycles at full current, ensuring longevity and consistent performance.
• High Interrupt Current Capacity: Capable of safely managing large paralleled battery banks with significant power availability, safeguarding your electrical infrastructure.
• 4-Year Warranty: Backed by Egis, guaranteeing product reliability and customer satisfaction.

Specifications

Attribute	Details
Continuous Current Amps	100A
Maximum Voltage	48 Vdc
Cycling Endurance	6,000 cycles
Interrupt Current @16 Vdc	5,000 Amps
Interrupt Current @28 Vdc	3,000 Amps
Ingress Protection Rating	IP67
Box Dimensions	3"H x 3"W x 4"L
Weight	0.2 lbs
UPC	850035199077

Focal Features

High Visibility ON/OFF Controls

Designed with clear, high-visibility controls, making it easy to monitor and manage your circuits even in low-light conditions.

Panel Mount Flange

Offers versatile installation options with both rear and front panel mounting capabilities, adapting seamlessly to your boat's layout.

Durable Hardware

Equipped with stainless steel hardware and KEPS locking nuts, providing excellent resistance to corrosion and vibration in harsh marine environments.

Proudly Made in the USA

Manufactured in the USA using high-quality components, ensuring superior build quality and reliability for your marine applications.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF)
