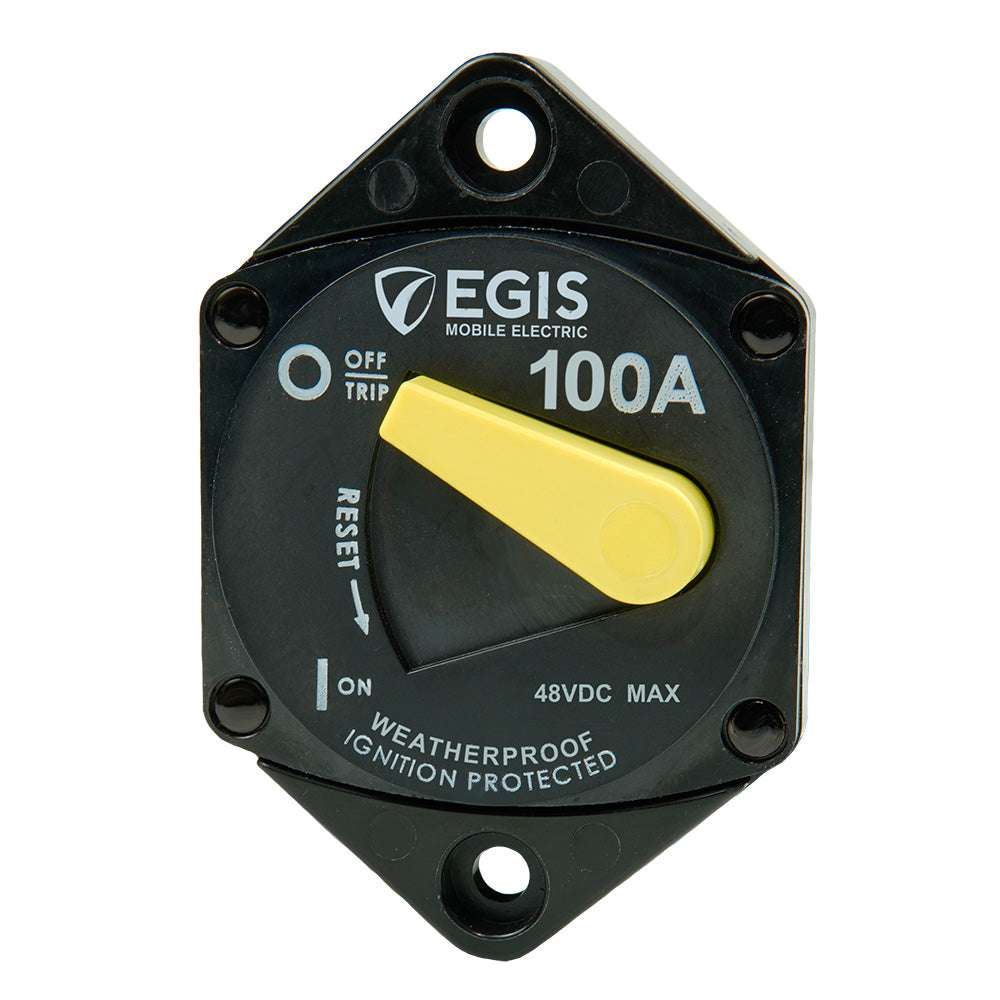

Egis 100A Panel Mount 87 Series Circuit Breaker

The Egis Mobile 187 Series 100A Panel Mount Circuit Breaker is a vital component for marine electrical systems, offering robust protection against short circuits and thermal overloads. Designed for the demanding conditions of boating, it ensures reliable live load switching and seamless integration into your vessel's electrical panels.

Marine Applications

• Safeguards boat electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and potential damage
• Combines automatic circuit protection with manual on/off switching for a versatile and compact solution
• Enables easy isolation and maintenance of load circuits, providing convenient switching and integral protection adjacent to battery systems regardless of their location on the vessel

Key Features

• IP66 Sealed Design: Protects against dust and water intrusion, ensuring reliable circuit protection in harsh marine environments
• High Voltage Rating (48 Vdc): Supports 12V and 24V applications while offering advanced protection for 36V and 48V systems commonly found in boats
• Durable Switching Endurance: Delivers up to 2,000 manual and electrical switching cycles at full current, ideal for frequent use on vessels
• High Interrupt Current Capability: Safely manages circuits connected to large, paralleled battery banks with significant available power
• 4-Year Warranty: Egis stands behind the product’s durability and performance to meet the rigorous demands of marine applications

Specifications

Attribute	Details
Continuous Current Amps	100A
Maximum Voltage	48 Vdc
Cycling Endurance	2,000 cycles
Interrupt Current @14 VDC	5,000 Amps
Interrupt Current @28 VDC	3,000 Amps
Ingress Protection Rating	IP66
Box Dimensions	3" H x 3" W x 4" L
Weight	0.4 lbs
UPC	850053879081

Focal Features

High Visibility ON/OFF Controls

Designed with high-visibility controls that are easy to operate, even in low-light conditions. The unit is sealed against dust and moisture, making it reliable for all marine installation locations with high-temperature resistance.

Circular Mounting Design

The circular cutout design allows for effortless installation into your boat’s existing panels, providing a secure and neat fit.

Stainless Steel Hardware

Equipped with corrosion-resistant stainless steel hardware and serrated flange nuts, this circuit breaker withstands the harsh, saltwater environment typical in marine settings.

Proudly Made in the USA

Manufactured in the USA using high-quality components to ensure longevity and dependable performance for your marine electrical systems.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
