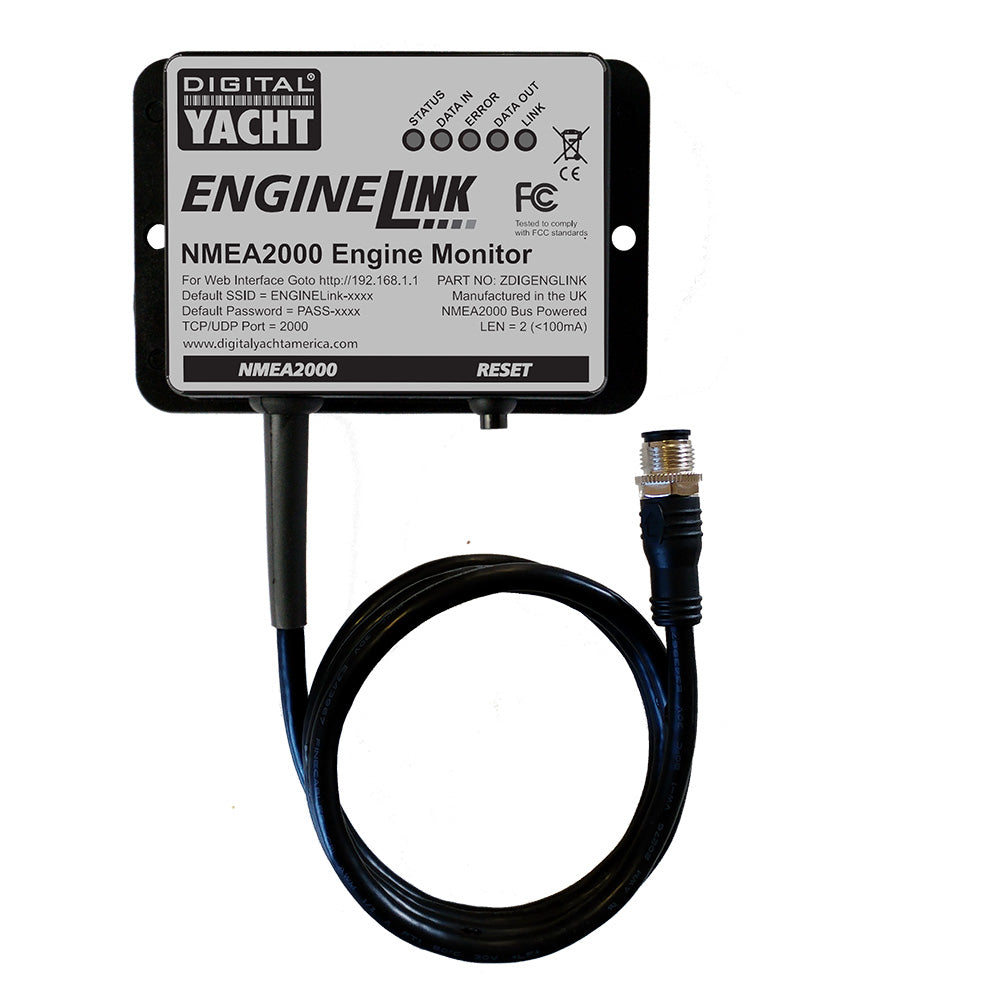

Digital Yacht Engine Link NMEA 2000 Engine Monitor

Upgrade your boating experience with the ENGINELink NMEA 2000 Engine Monitor, a cutting-edge wireless device that seamlessly integrates engine data with your favorite marine apps. This versatile monitor allows you to view real-time engine performance metrics alongside navigation information on your mobile devices, enhancing both safety and efficiency on the water.

Key Features

• Seamless integration with any NMEA 2000-ready engine or network
• Embedded web-based gauge display eliminates the need for proprietary apps
• Supports single or dual-engine configurations
• Customizable gauges to monitor essential parameters such as RPM, temperature, pressure, and battery voltage
• Set alarm and alert thresholds for proactive maintenance and safety
• TCP/UDP streaming of critical navigation data (GPS, AIS, Depth) compatible with popular apps like Navionics, NavLink, iNavX, SavyNavy, AquaMaps, and more
• Monitor tank levels, fuel flow, and utilize trip computer functionalities
• Compatible with NMEA 2000 systems for tilt, trim tabs, and jack plates
• Supports manufacturer-specific engine modes for tailored performance monitoring

Specifications

Feature	Details
Power Source	Powered directly from the NMEA 2000 Network – simple plug-in installation
Wireless Interface	Password-protected 802.11b/g/n Wi-Fi network
Network Modes	Access Point (AP) or Station (STA) mode, enabling integration with existing boat Wi-Fi networks
Data Streaming Protocols	TCP/IP and UDP for versatile compatibility with third-party applications
Supported PGNs (First Release)	127488, 127489, 127493, 130312, 130316, 127505, 130576, 128780
Display Options	Preset gauge displays from leading manufacturers or fully customizable dashboards
Upgradeability	Flexible and upgradeable interface for future enhancements

Target Markets & Applications

• Enhances data accessibility by bringing engine metrics to mobile and tablet devices
• Ideal for the US center console and sports fishing markets, catering to outboard-powered vessels equipped with NMEA 2000 networks
• Compatible with both inboard and outboard engine installations
• Provides additional data displays and functionality beyond traditional Multi-Function Displays (MFDs)
• Offers a cost-effective dashboard repeater accessible from anywhere on board
• Essential tool for service technicians for diagnostics and testing
• Prepares for the future with support for electric propulsion PGN implementations
• Enables logging and replay of engine and navigation data for comprehensive onshore analysis
• Supports the latest PGNs for jack plates and trim tabs to optimize boat performance
• Integrates seamlessly with over 100 navigation apps for AIS, GPS, and depth data visualization

Easy Setup and Installation

Installing the ENGINELink monitor is straightforward—simply connect it to your boat's NMEA 2000 backbone using a T-connector. The device is self-powered from the network, creating a secure, password-protected Wi-Fi network capable of supporting up to seven connected devices simultaneously. Whether you’re configuring single or dual-engine setups, ENGINELink offers flexibility and ease of use without the need for complex programming software or additional apps.

User-Friendly Configuration

Configure your ENGINELink device effortlessly through its intuitive web interface. Access the settings by entering the device's IP address into your web browser, where you can customize and arrange your dashboard displays. iOS and Android devices can display a navigation app alongside the engine instrument displays, providing a comprehensive overview of both your vessel's performance and navigational data in real-time.

Reliable Data Access and Security

Maintain control over your network with customizable options such as changing the network name and password, or merging with an existing onboard Wi-Fi network. ENGINELink ensures reliable data access and security, allowing you to view and log NMEA 2000 data directly in your web browser. This feature simplifies troubleshooting and fault finding, as well as enabling the display and interrogation of engine-generated diagnostic alerts.

Stay Ahead with ENGINELink

The ENGINELink NMEA 2000 Engine Monitor is at the forefront of marine technology, offering robust features and seamless integration for boaters seeking enhanced engine monitoring and navigation data access. Whether you're a recreational angler, a professional service technician, or a boating enthusiast, ENGINELink delivers the performance and reliability you need on the water.
