Digital Yacht 5G Xtream System w/3 Antennas 7M Cable

The 5G Xtream System by Digital Yacht is the ultimate solution for boat owners seeking ultra-fast and reliable internet connectivity on board. Combining cutting-edge 4G and 5G technologies with seamless Starlink satellite integration, the 5G Xtream ensures that you stay connected no matter where your maritime adventures take you.

Key Features

• Ultra-fast 5G internet with speeds up to 3.1 GB/s
• Integrated 4G Cat 20 modem offering speeds up to 2 GB/s and a range of up to 25NM from shore
• Triple external antenna setup with dual high-gain vertical antennas and a compact dome antenna for optimal MIMO performance
• Dual SIM slots supporting auto failover and manual operator switching
• Dual-band Wi-Fi router (2.4 GHz & 5 GHz) with up to 150 connections
• 4 LAN ports and 1 WAN port optimized for Starlink satellite connectivity
• Integrated GPS for SMS reporting, geofencing, and drift settings
• Advanced user management with VPN support, blacklists, and IoT applications
• Compatible with marina Wi-Fi hotspots and supports the latest 5 GHz marina services
• Robust construction with IPX4 protection and operating temperatures from -40 to +75°C

Performance

The 5G Xtream excels in delivering high-speed internet connectivity both nearshore and offshore. Shore-based 5G connections can reach speeds up to 3.1 GB/s, while the integrated 4G Cat 20 modem provides reliable internet up to 25 nautical miles from shore with speeds up to 2 GB/s. This dual-band capability ensures that you have the fastest possible connection in various maritime environments.

Connectivity Options

Equipped with three external antennas, the 5G Xtream utilizes dual high-gain vertical antennas along with a compact dome antenna specifically designed for higher 5G frequencies. This MIMO technology setup ensures optimal signal reception and performance. Additionally, the system supports dual SIMs, allowing automatic failover or manual switching between different network operators for uninterrupted connectivity.

User Interface

Managing the 5G Xtream is straightforward thanks to its intuitive web interface. Any device connected to the local network can access the password-protected interface by entering the IP address. From there, users can easily configure settings, monitor traffic and logs, and manage Wi-Fi connections. Once configured, the system operates seamlessly, requiring user interaction only for diagnostics and adjustments.

Advanced Features

The 5G Xtream offers a range of advanced features tailored for marine use:

• User management with VPN support for secure connections
• Blacklist functionality to control network access
• IoT application support for enhanced control and automation
• Integration with NMEA 0183/2000 data through Digital Yacht’s LANLink devices
• SMS capabilities for boat position reporting and geofencing

Specifications

Specification	Details
Operating Temperature	-40 to +75°C
Dimensions	180 x 125 x 55 mm
Weight	3.8 kg
Protection	IPX4
Technology	5G Sub-6GHz SA/NSA, 4G (LTE) CAT 20
5G/LTE Speeds	Up to 3.3 Gbps downlink (5G), up to 2 GB/s (4G)
Supported Bands	5G (NSA & SA), 4G (LTE-FDD & LTE-TDD)
Antennas	Dual wideband high-gain MIMO, 1 dome antenna for 5G
Interfaces	4x LAN 10/100 Ethernet, 1x WAN Ethernet, Wi-Fi 802.11 b/g/n/ac

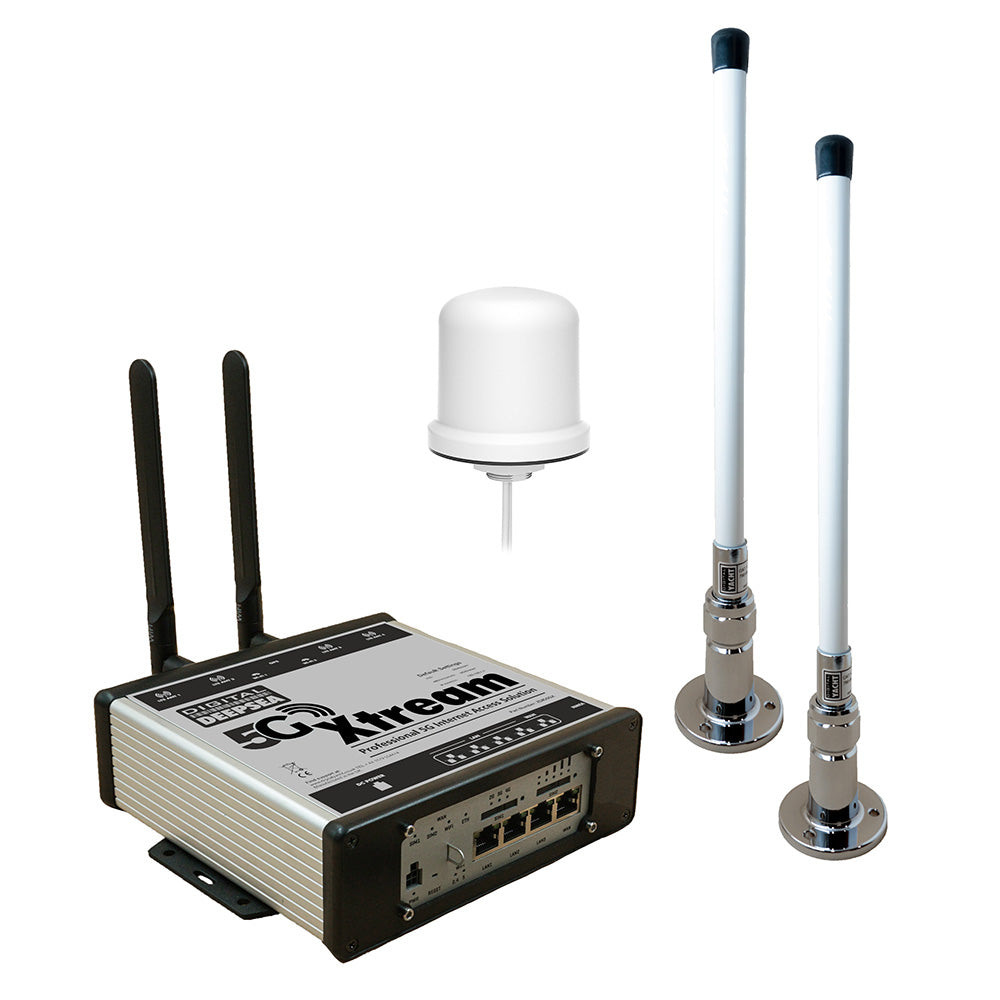

What's in the Box?

• 1 x 5G Xtream Modem Unit
• 1 x DC Power/IO Cable
• 2 x External Antennas
• 2 x E179F Antenna Bases
• 2 x 7m LMR200 Antenna Cables (N male to N male)
• 1 x 5G Dual Element Dome Antenna with Pole/1” Adaptor Mount and Integrated 7m Cables
• 2 x Internal Wi-Fi Antennas
• 1 x Internal GPS Antenna

Optional Accessories

• 1” Antenna Adaptors and a Range of Mounts
• 10m & 20m LMR400 Antenna Cable Packs for 4G Antennas
• AC 110/220V Power Adaptor
• 4GXWL High Power External Wi-Fi Option
• LANLink NMEA 0183/2000 Interface

Additional Specifications

• Speed: Max 3.1 GB/s
• Wireless: Yes
• Box Dimensions: 4" H x 10" W x 27" L
• Weight: 10.15 lbs
• UPC: 703791696659
