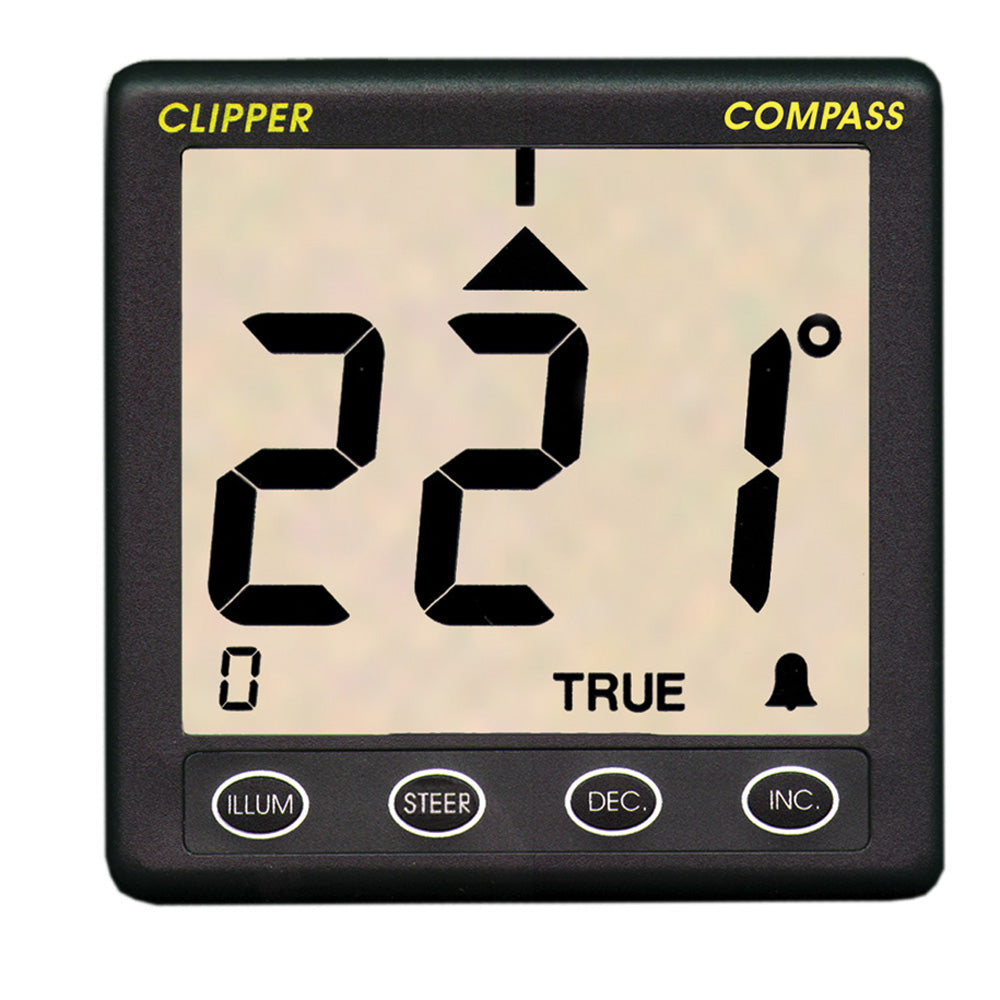

Clipper Compass System w/Remote Fluxgate Sensor

The Clipper Compass is an advanced electronic navigation tool designed specifically for marine and boating enthusiasts. Equipped with a remote fluxgate sensor and a crystal-clear display, this compass ensures precise heading information, whether you're charting a course across calm waters or navigating through challenging conditions. Its robust construction and user-friendly features make it an indispensable addition to any vessel, enhancing both safety and navigation efficiency.

Key Features

• Remote Fluxgate Sensor: Ensures accurate readings by minimizing the impact of stray magnetic fields.
• Large Clear Display: Offers 7 levels of illumination and displays both True and Magnetic headings with a resolution of 1 degree.
• Gimballed Sensor: Mounted with ±45 degrees of pitch and roll tolerance to maintain accuracy in various vessel movements.
• Electronic Auto Calibration: Automatically adjusts to cancel out minor errors, ensuring consistent performance.
• Steer to Course Function: Visual indicators help you correct your course effortlessly.
• Adjustable Damping: Customize the compass's responsiveness to suit your sailing style.
• Off-Course Alarm: Alerts you when heading deviates beyond a set threshold, enhancing safety when not actively steering.
• Low Power Consumption: Operates efficiently with a nominal 12V DC supply and minimal power usage.
• Compact Design: Fits seamlessly behind panels with a depth of just 30mm.
• Extension Cables Available: Customize installation based on your vessel's layout.

Steer to Course Function

The Steer to Course feature simplifies navigation by visually indicating steering errors. When activated, a series of chevrons display the direction and magnitude of any course deviation. To realign, simply turn the wheel in the direction of the chevrons until they disappear. This intuitive system allows for precise course correction, ensuring you stay on your intended path with ease. Additionally, the steering sensitivity can be adjusted to match your specific requirements, providing a tailored navigation experience.

Technical Specifications

Specification	Details
Supply Voltage Nominal	12V DC
Power Consumption	120mA+ (25mA for display illumination max)
Fluxgate Accuracy	±1 degree
Display Resolution	1 Degree
Display Case Size	110 x 110 mm
Depth Behind Panel	30mm
Fluxgate Dimensions	175mm diameter x 95mm
Sensor Cable Length	5 meters
Included Accessories	Face Cover
Additional Options	Extension Cables Available

Please note: This product may not be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

Download the Owner's Manual (PDF)
