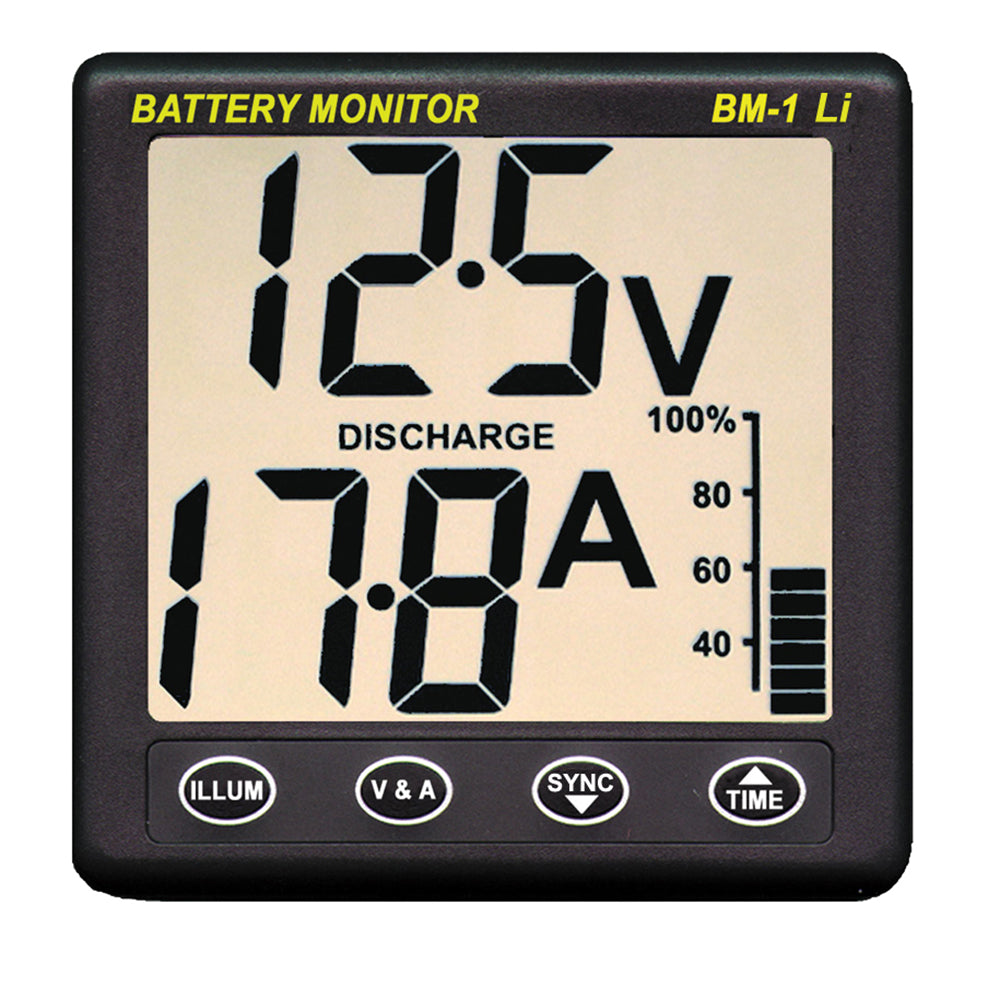

Clipper BM-1 LI Battery Monitor f/12V Lithium

The BM-1 LI Battery Monitor is an essential tool for marine and boating enthusiasts, designed to keep a close eye on your 12V battery systems. Whether you're sailing across the lake or navigating the open sea, this monitor ensures your batteries perform optimally, extending their lifespan and preventing unexpected failures.

Key Features

• Comprehensive monitoring of your entire domestic battery bank
• Tracks voltage levels of your engine's starter battery
• Includes a precision 100 AMP shunt for accurate measurements
• Prefabricated cable assembly allows for straightforward DIY installation
• High-contrast, backlit LCD display optimized for low-light marine environments
• Real-time monitoring of voltage, current (charge/discharge), amp-hours, state of charge, and remaining time for charge/discharge cycles
• Low power consumption minimizes battery drain

Technical Specifications

Specification	Details
Supply Voltage	12V: 8 – 16 Volts DC 24V: 16 – 32 Volts DC
Supply Current	1.5 milliamps
Battery Capacity	5 – 600 Amp Hours
Load Current Capacity	100 Amps Maximum
Charge Current Capacity	100 Amps Maximum
Shunt	Standard 50 millivolt @ 100 AMP

Included Cables

• 100 AMP shunt connected to an M8 ring terminal with a 5-meter cable from the display unit to the battery, featuring ring terminals, a fuse holder, and an M8 ring terminal for secure battery connections
• Display Unit:
  • Standard 110mm square Clipper case
  • High-contrast, backlit LCD for easy viewing at night
  • Minimum voltage visual alarm for instant alerts
  • Intuitive operation with 4 buttons to navigate backlight, Volt/Amp/State of Charge screens, AMP hours, and Time to run

How It Works

The BM-1 LI Battery Monitor provides a clear and intuitive display of your marine battery’s vital statistics, including voltage, charge/discharge current, state of charge, and remaining time to charge or discharge. It alerts you when the battery charge drops below a safe level, allowing you to shed loads or initiate charging to protect your investment.

Featuring a resettable Amp Hour counter, the monitor helps you assess the efficiency of your charging system and track power consumption patterns, ensuring optimal battery management. Additionally, a second input allows you to monitor the engine's starter battery voltage separately.

The BM-1 LI employs advanced algorithms, integrating amp-hours over charge and discharge cycles and utilizing an adaptive internal mathematical battery model. This dual-algorithm approach ensures continuous performance updates, eliminating the need for manual synchronization and maintaining accuracy across varying load currents through the inclusion of Peukert's equation.

Despite its sophisticated features, the BM-1 LI maintains a low power draw of just 1.5 milliamps, making it an energy-efficient addition to your marine setup. Its easy installation process and comprehensive monitoring capabilities make it an excellent value for boaters seeking reliable battery management.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
