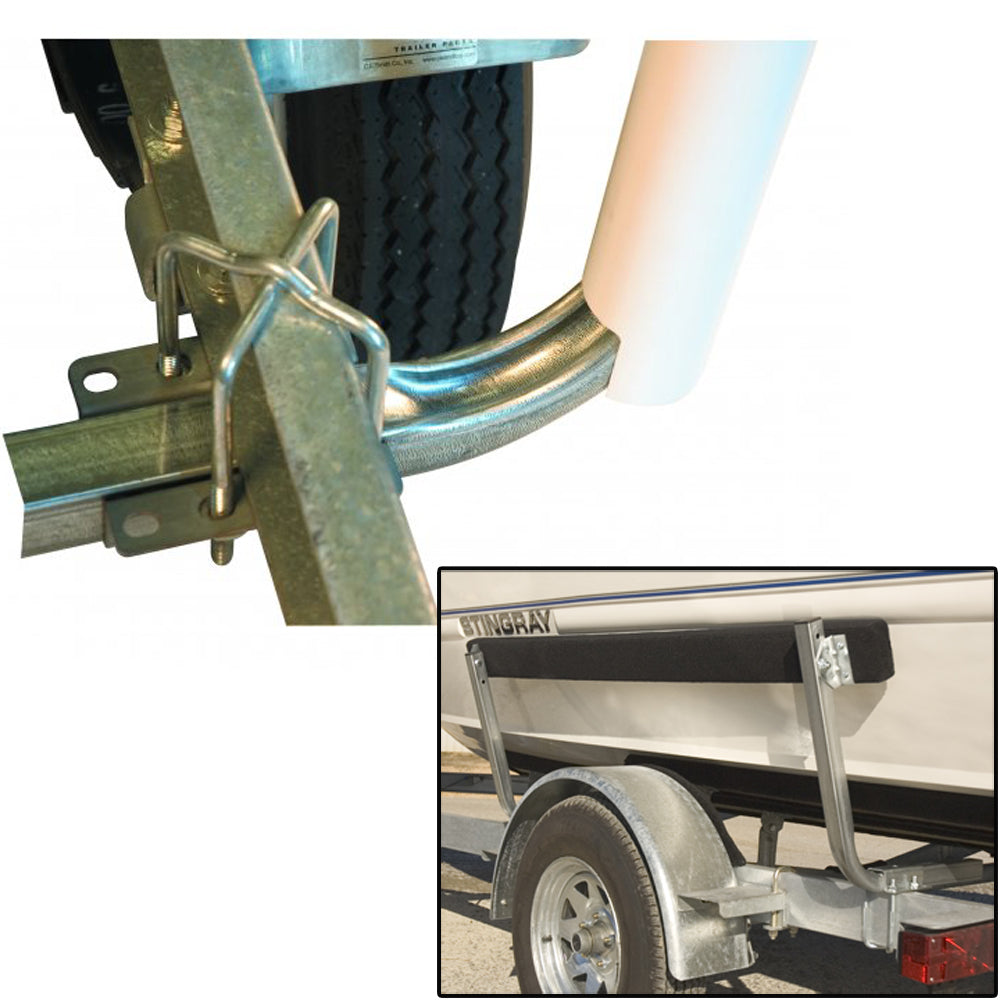

C.E. Smith 5' Bunk Board Guide-On

Ensure your vessel achieves optimal stability and performance with our 5' Bunk Board Guide-On. Specifically designed for marine applications, these high-quality bunkboards provide reliable center loading, even in challenging wind or side current conditions, enhancing your boating experience.

Product Features

• Durable Uprights: 1-1/2" square pre-galvanized uprights angled outward at 75° for enhanced stability.
• Marine-Grade Boards: 2" x 4" x 60" boards that tilt to conform to the hull, covered with high-grade marine carpet for added grip and protection.
• Quality Material: Made from untreated Southern yellow pine, ensuring strength and longevity in marine environments.
• Adjustable Height: Total height of 21" with the ability to adjust out to 13" from the frame on each side for customized fit.
• Versatile Mounting: Can be mounted on top of the frame for additional height as needed.
• Complete Hardware: Includes all necessary mounting hardware to fit frames up to 3" wide x 4-1/4" high.

Specifications

Uprights	1-1/2" square pre-galvanized
Angle	75° outward
Boards	2" x 4" x 60", marine carpeted
Height	21" standard, adjustable up to 34" total
Mounting Compatibility	Frames up to 3" wide x 4-1/4" high

Installation Instructions

Installing the 5' Bunk Board Guide-On is straightforward with the included mounting hardware. Follow these steps to ensure a secure fit:

1. Measure your frame to confirm compatibility with boards designed for frames up to 3" wide x 4-1/4" high.
2. Position the uprights at a 75° angle outward from the frame.
3. Secure the boards to the uprights using the provided hardware, ensuring they tilt to hug the hull for maximum stability.
4. Adjust the height to your preference, extending up to 13" from the frame on each side if needed.
5. For additional height, mount the boards on top of the existing frame securely.

Safety Information

WARNING: This product can expose you to chemicals including ARSENIC, CADMIUM, which are known to the State of California to cause cancer or other reproductive harm, and BERYLLIUM, COBALT METAL POWDER, NICKEL (METALLIC) which are known to the State of California to cause cancer, and Chromium (hexavalent compounds), LEAD which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
