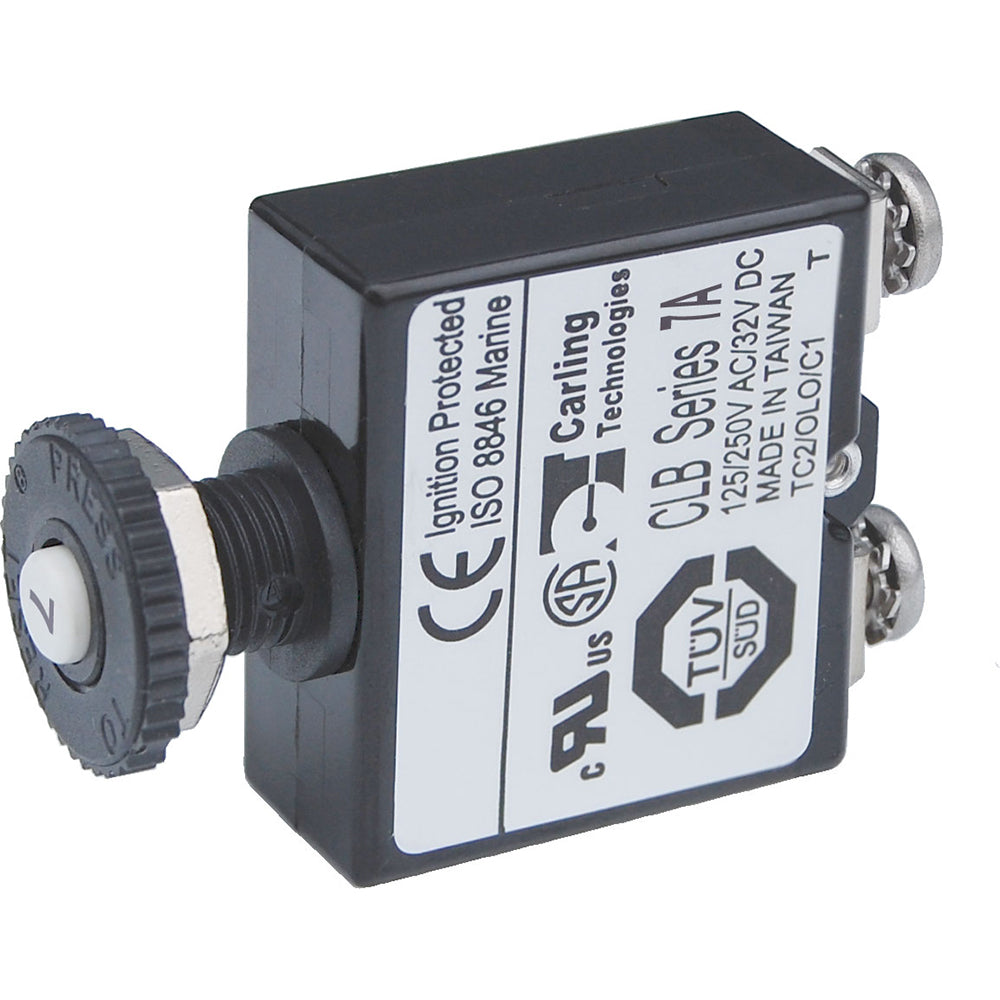

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 7 Amps

The Blue Sea Systems 7 Amp Push Button Reset Circuit Breaker is engineered to provide dependable protection for your boat’s electrical system. Specifically designed for marine environments, this compact and ignition-protected breaker ensures safe and efficient management of your vessel's electrical circuits, offering peace of mind during your maritime adventures.

Features

• Provides reliable branch circuit protection, suitable for continuous 24-hour use.
• Compatible with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels featuring quick connect terminals.
• Compact design allows for high-density circuit protection configurations, maximizing panel space.
• Easy push-to-reset operation simplifies maintenance and troubleshooting onboard.
• Trip Free design ensures the circuit breaker cannot be held in the "ON" position during fault conditions, enhancing safety.
• Ignition protected, making it safe for installation aboard gasoline-powered boats.
• Optional Push Button Waterproof Boot provides additional protection in wet environments, replaces traditional dress nut mounting, and resists discoloration and cracking.

Specifications

Amperage	7A
Maximum Voltage	32V DC
Mounting	Panel Mount 3/8-27 UNS
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Type	#8 Screw
Interrupt Capacity	3000A @ 14.7V / 2500A @ 28V
Operating Temperature	-10° C to 60° C
Screw Terminal Torque	6 in-lb (0.68 Nm)
Weight	0.09 lb (0.04 kg)
Box Dimensions	1"H x 3"W x 5"L
UPC	632085021313
