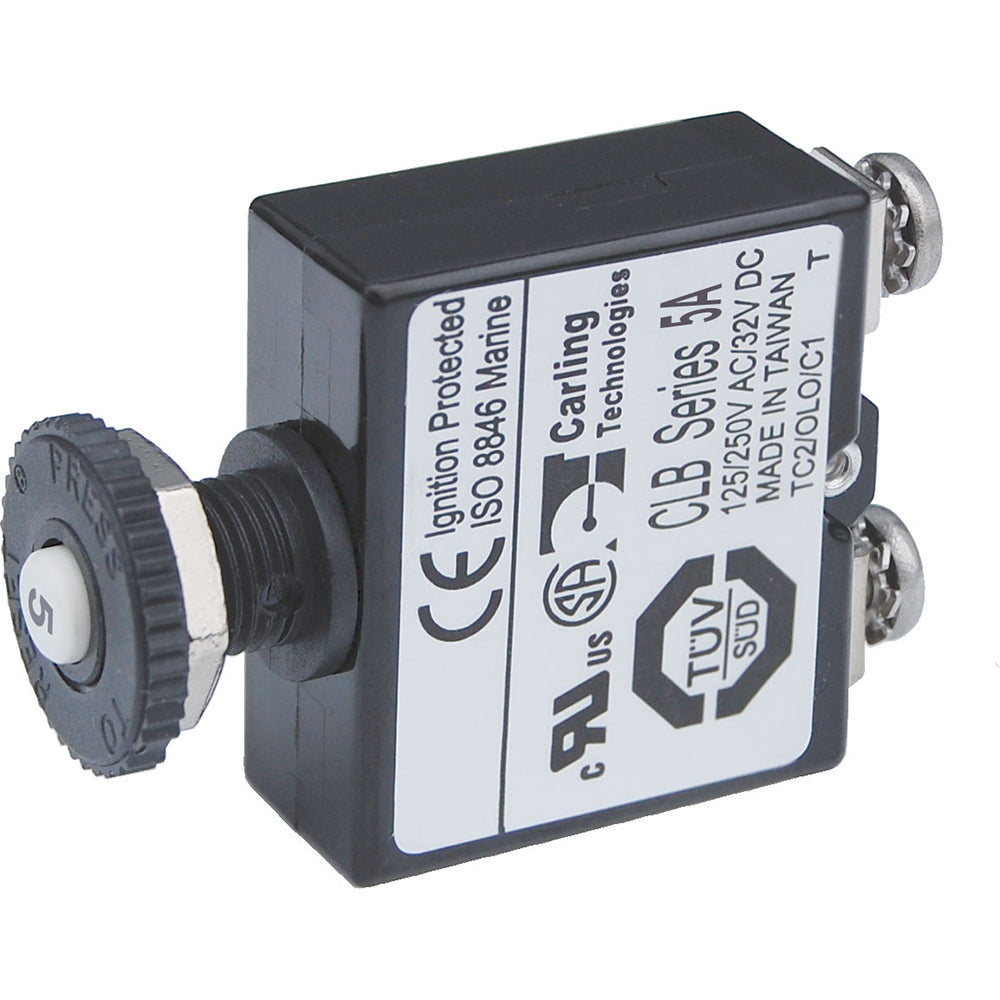

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 5 Amps

Ensure the safety and reliability of your boat's electrical system with our Push Button Reset Only Screw Terminal Circuit Breaker. Designed specifically for marine applications, this 5 Amp circuit breaker provides robust protection against electrical faults, ensuring peace of mind on every voyage.

Features

• Ideal for branch circuits and 24-hour circuit protection.
• Compatible with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels through quick connect terminal style.
• Compact design allows for high-density circuit protection configurations, saving valuable space on your vessel.
• Convenient push-to-reset operation for easy maintenance and resets after tripping.
• "Trip Free" design ensures the breaker cannot remain ON during fault current conditions, enhancing safety.
• Ignition protected, making it safe for installation on gasoline-powered boats by preventing ignition sources.
• Optional Push Button Waterproof Boot available to protect the circuit breaker in wet environments. This boot replaces the dress nut mounting on circuit breakers and is designed to resist discoloration and cracking.

Specifications

Parameter	Details
Amperage	5A
Maximum Voltage	32V DC
Mounting	Panel Mount 3/8-27 UNS
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Type	#8 Screw
Interrupt Capacity	3000A @ 14.7V / 2500A @ 28V
Operating Temperature	-10°C to 60°C
Screw Terminal Torque	6 in-lb (0.68 Nm)
Weight	0.09 lb (0.04 kg)
Box Dimensions	1"H x 3"W x 5"L
UPC	632085021306

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
