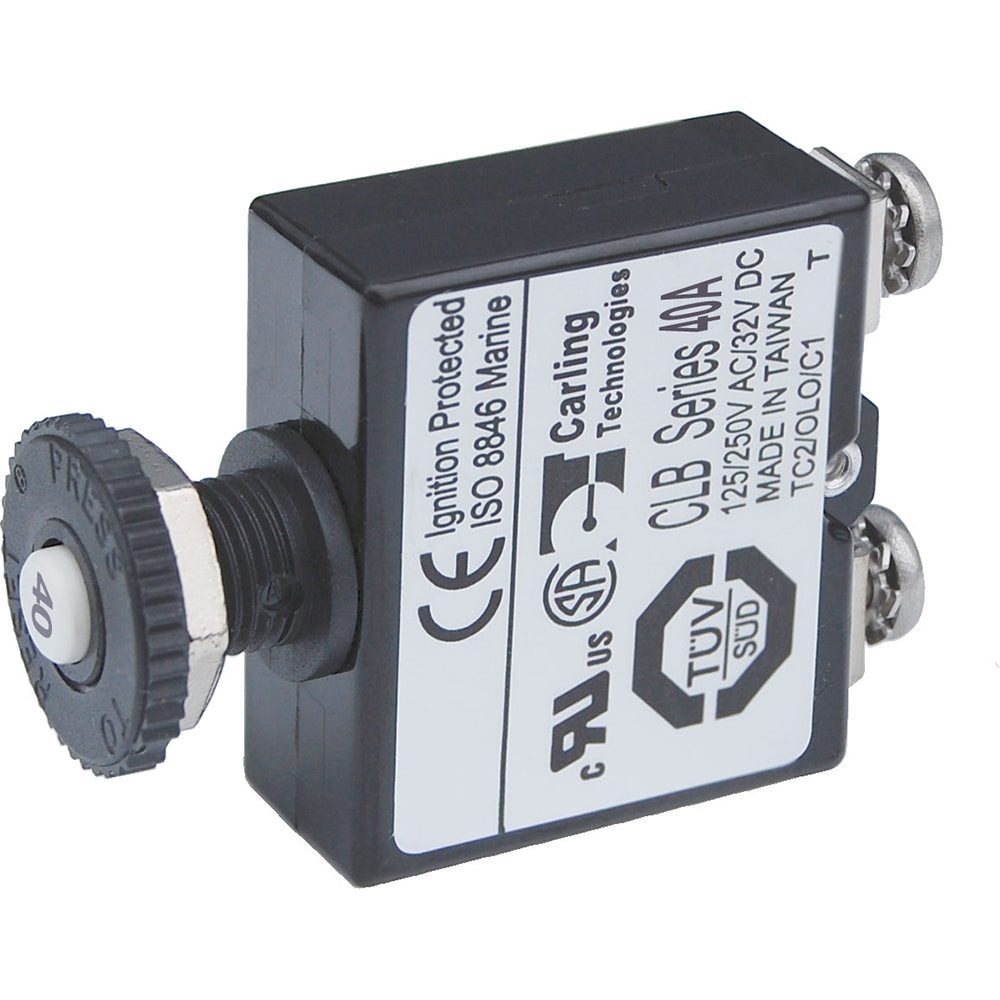

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 40 Amps

The Push Button Reset Only Screw Terminal Circuit Breaker - 40 Amps is an essential component for marine electrical systems, providing reliable and efficient protection for your boat's electrical circuits. Designed specifically for the demanding marine environment, this circuit breaker ensures safety and durability, making it an ideal choice for both novice boaters and seasoned mariners.

Features

• Designed for branch circuit protection and suitable for 24-hour circuit safeguarding.
• Compatible with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels through quick connect terminal style.
• Compact design allows for high-density circuit protection configurations, maximizing space on your vessel.
• Easy push-to-reset operation ensures quick and hassle-free resetting after a trip.
• "Trip Free" mechanism prevents the breaker from being held "ON" during fault conditions, enhancing safety.
• Ignition protected, making it safe for installation on gasoline-powered boats.
• Optional Push Button Waterproof Boot available to protect the circuit breaker in wet environments, replaces dress nut mounting, and resists discoloration and cracking.

Specifications

Amperage	40A
Maximum Voltage	32V DC
Mounting	Panel Mount 3/8-27 UNS
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Type	#8 Screw
Interrupt Capacity	3000A @ 14.7V / 2500A @ 28V
Operating Temperature Range	-10° C to 60° C
Screw Terminal Torque	6 in-lb (0.68 Nm)
Weight	0.09 lb (0.04 kg)
Box Dimensions	1" H x 3" W x 5" L
UPC	632085021375

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
