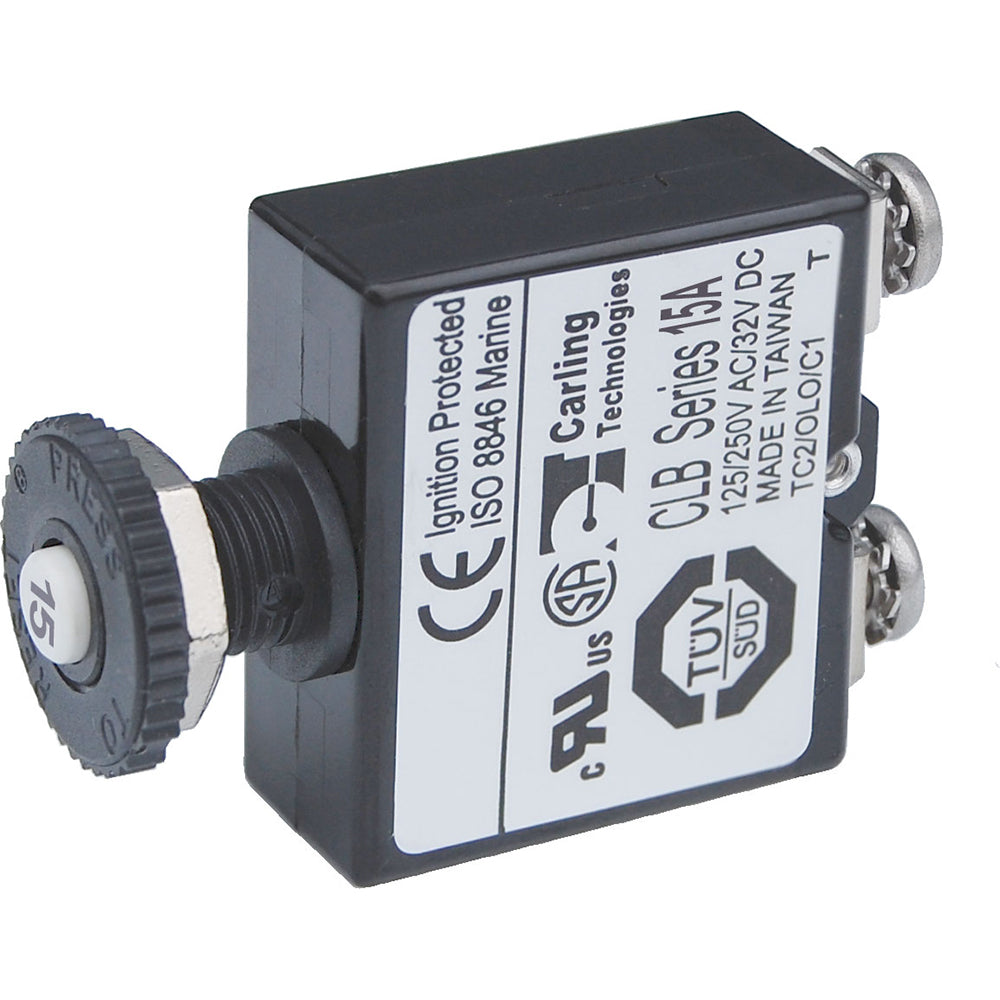

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 15 Amps

The Push Button Reset Only Screw Terminal Circuit Breaker - 15 Amps is engineered for marine and boating enthusiasts seeking dependable and streamlined circuit protection. Its compact design and robust features ensure enhanced safety and efficient power management on your vessel.

Features

• Versatile Protection: Suitable for branch circuits and 24-hour circuit protection, ensuring continuous and reliable power management.
• Seamless Integration: Compatible with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels through quick connect terminal style.
• Compact Design: Optimized for high-density circuit protection configurations, allowing you to maximize panel space efficiently.
• Easy Reset: Features a push-to-reset operation for simple and quick restoration of power after a trip.
• Enhanced Safety: "Trip Free" design ensures the breaker cannot remain "ON" during fault conditions, preventing potential electrical hazards.
• Marine-Grade Protection: Ignition protected, making it safe for installation aboard gasoline-powered boats.
• Weather-Resistant Option: Optional Push Button Waterproof Boot protects the circuit breaker in wet environments, replaces dress nut mounting, and resists discoloration and cracking.

Specifications

Amperage	15A
Maximum Voltage	32V DC
Mounting	Panel Mount 3/8-27 UNS
Circuit Breaker Type	Thermal trip, manual push-button reset only
Terminal Type	#8 Screw
Interrupt Capacity	3000A @ 14.7V / 2500A @ 28V
Operating Temperature	-10° C to 60° C
Screw Terminal Torque	6 in-lb (0.68 Nm)
Weight	0.09 lb (0.04 kg)
Box Dimensions	1" H x 3" W x 4" L
Box Weight	0.2 lbs
UPC	632085021337

Important Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
