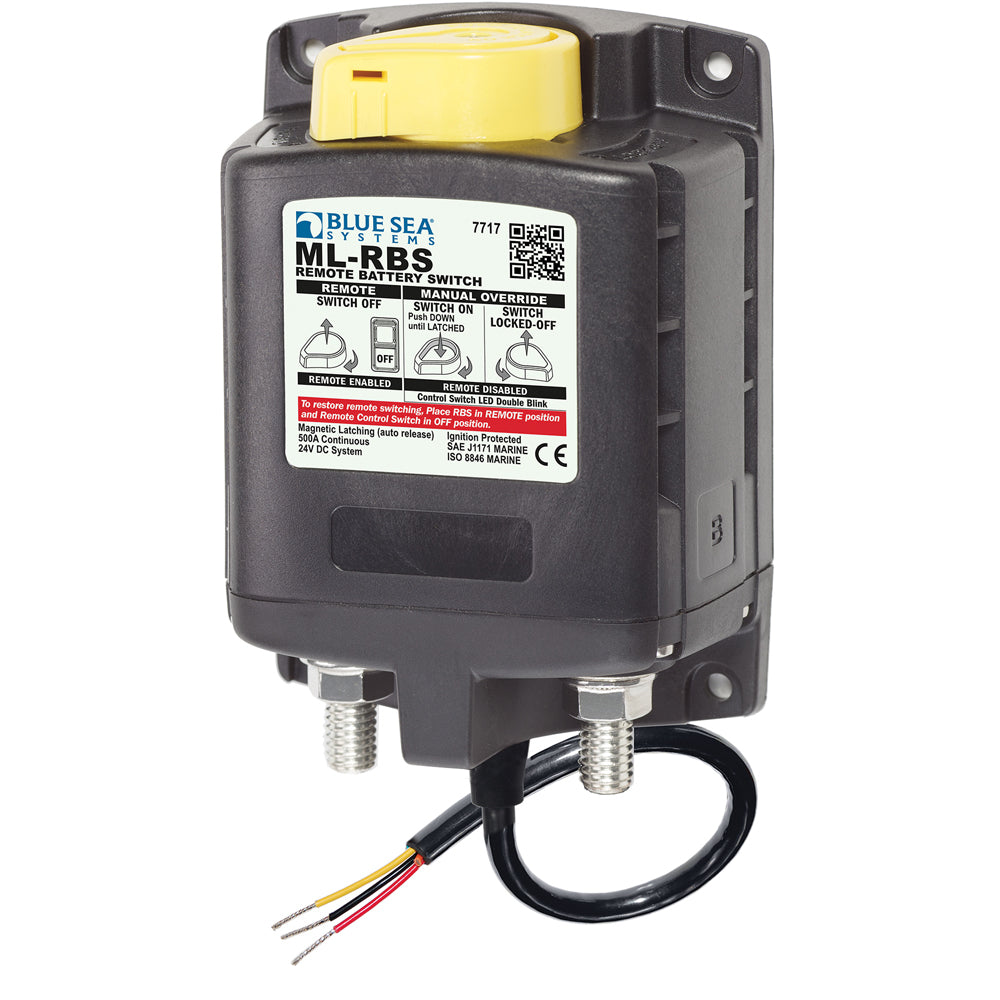

Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V
Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release - 24V is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Ensure uninterrupted power supply and enhanced safety for your marine vessel with the ML-RBS Remote Battery Switch. Designed specifically for 24V systems, this switch offers both manual and automatic control, making it an essential component for managing your boat's electrical systems efficiently and reliably.
Key Features

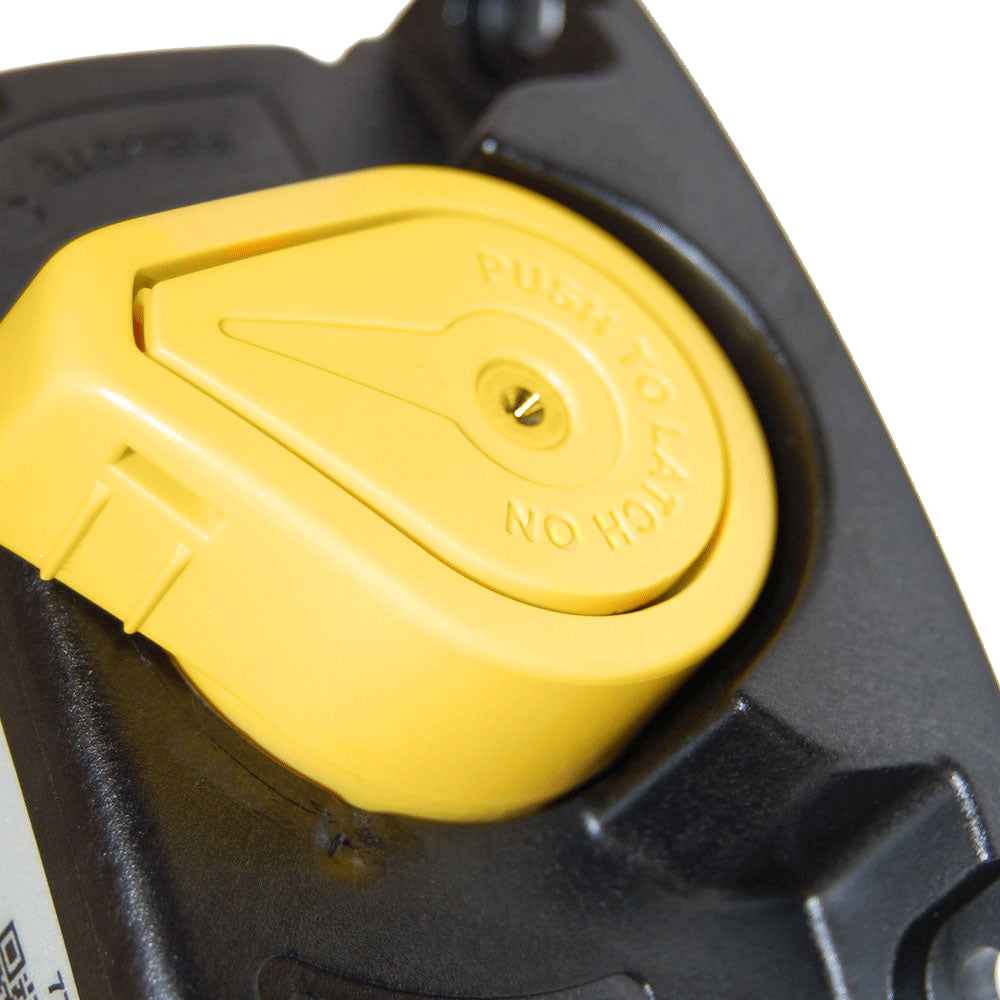

- Manual Override Knob: Adds an extra layer of safety by allowing you to control the battery switch with or without power. The LOCKED OFF capability ensures safe servicing.
- LED Output Indicator: Remotely displays the switch state, enabling easy monitoring of your battery status. (Optional LED required)
- High-Quality Construction: Equipped with 3x 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, ideal for harsh marine environments.
- Flexible Connectivity: The 7/8" (22mm) stud length accommodates multiple cable terminals, simplifying your wiring setup onboard.
- Easy Identification: Label recesses facilitate straightforward circuit identification, aiding in maintenance and troubleshooting.
- Durable Contacts: Silver alloy contacts provide high reliability for switching live loads, ensuring consistent performance under demanding conditions.
Technical Specifications
| Control Circuit Connection | Tinned Wire |
|---|---|
| Nominal Voltage | 24V DC |
| Manual Control | Yes |
| Coil Function | Auto releasing |
| Mounting Size | #10 |
| Operating Current (OFF) | 8mA |
| Operating Current (ON) | 13mA |
| Operating Current (State Change) | <4A (40 ms) |
| Control Circuit Voltage Range | 20.2 to 32.9V DC |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating (10 sec) | 2500A |
| Cranking Rating (1 min) | 1100A |
| Operating Temperature Range | -10°C to 50°C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC, 10,000 Cycles |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Switching Cycles | 100,000 |
| Terminal Ring Diameter Clearance | 1.18" (29.97mm) |
| Terminal Stud Length | 0.875" (22.23mm) |
| Terminal Stud Size | 3/8-16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Weight | 1.75 lb (0.79 kg) |
| Box Dimensions | 3"H x 7"W x 12"L |
| Box Weight | 2.2 lbs |
| UPC | 632085077143 |
Auto Releasing Functionality
The ML-RBS Remote Battery Switch features an auto-releasing mechanism, ensuring your marine electrical systems can be automatically controlled or manually overridden as needed. It supports SPST and SPDT switch control options, making it compatible with normally open relay applications commonly used in marine setups.
Regulatory Compliance
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which the State of California has identified as a substance that can cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Additional Features
- Lockable: Yes
- Continuous Amperage: 500A
- Box Dimensions: 3"H x 7"W x 12"L
- Weight: 2.2 lbs
- UPC: 632085077143
