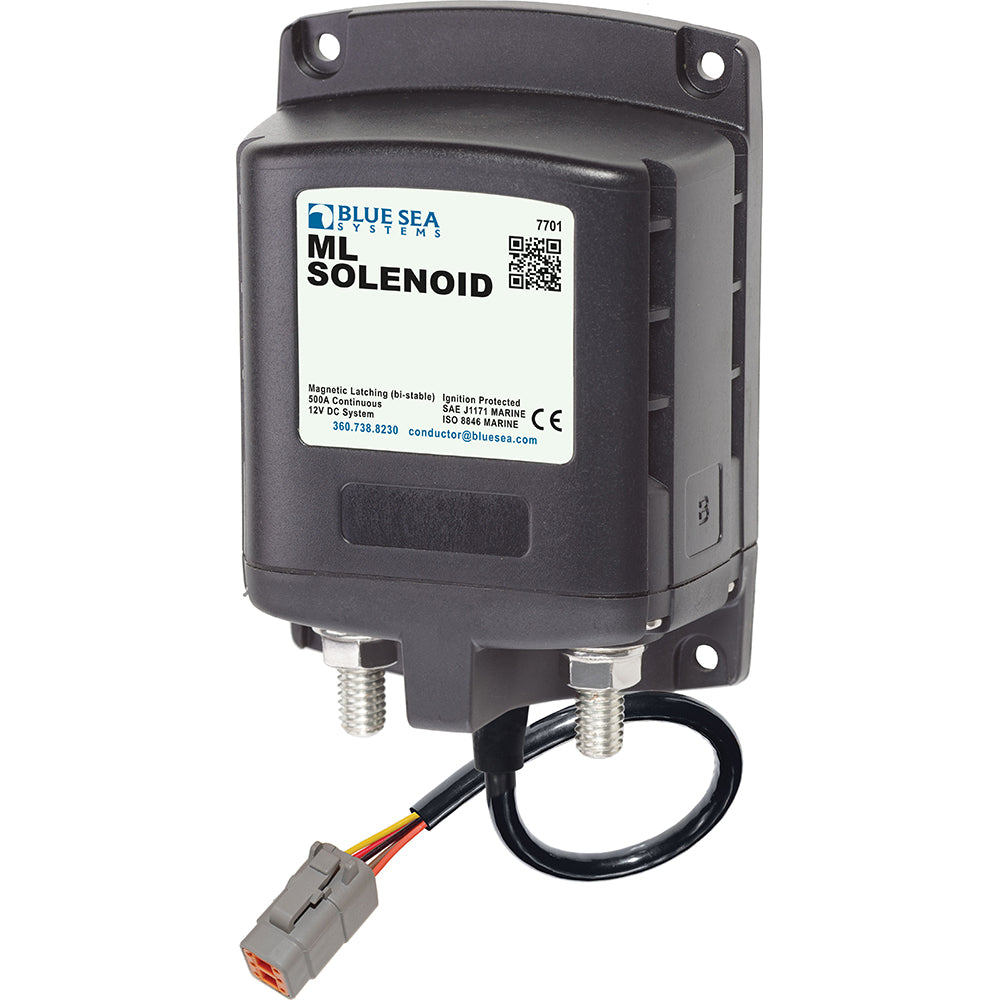

Blue Sea 7701100 ML Solenoid 12V 500A w/Deutsch Connector

The 7701100 ML Solenoid 12V 500A with Deutsch Connector is a robust and reliable solution for managing high-current electrical systems on boats and marine vessels. Designed to provide efficient switching under load without the need for manual intervention, this magnetic latching solenoid ensures your marine power systems operate seamlessly and safely.

Key Features

• High Current Capacity: With a continuous rating of 500 Amperes, this solenoid is perfect for handling engine starters, inverter systems, house loads, and emergency battery connections on your boat.
• Energy-Efficient Magnetic Latching: The bi-stable design minimizes power consumption by only drawing current when changing the switch state, keeping your vessel's power usage optimal.
• Durable Silver Alloy Contacts: Provides exceptional reliability and longevity for switching live loads, ensuring consistent performance in harsh marine environments.
• Corrosion-Resistant Studs: 3/8" -16 tin-plated copper studs deliver maximum conductivity while resisting corrosion from saltwater exposure.
• Flexible Terminal Connections: The 7/8" (22mm) stud length accommodates multiple cable terminals, allowing for versatile wiring configurations suited to complex marine electrical systems.
• Easy Circuit Identification: Label recesses allow for clear circuit labeling, simplifying maintenance and troubleshooting of your marine electrical setup.
• Remote Control Integration: Comes with a Remote Control Contura Switch in the retail package, or available separately for OEM bulk purchases, offering convenient control over your solenoid from various locations on your vessel.

Technical Specifications

Control Circuit Connection	Deutsch DTM
Nominal Voltage	12VDC
Manual Control	No
Coil Function	Bi-Stable
Mounting	#10
Amperage Operating Current Continuous	0A
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cable Size to Meet Ratings	2x (4/0)
Stud Material	Tinned Copper
Terminal Ring Diameter Clearance	1.18" (29.97 mm)
Terminal Stud Length	0.875" (22.23 mm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	1.75lb (0.79 kg)
