Blue Sea 7635 m-LVD Low Voltage Disconnect
Blue Sea 7635 m-LVD Low Voltage Disconnect is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The m-LVD Low Voltage Disconnect is an essential device for marine and boating enthusiasts, designed to protect your battery from unexpected drain and ensure reliable performance during your adventures on the water. By intelligently managing your battery's power, the m-LVD helps prevent stranded situations and extends the life of your battery.
Key Features
- Automatically senses low battery voltage and disconnects non-essential devices to preserve battery life.
- Prevents dead battery situations, one of the most common reasons for towing.
- Ideal for single battery setups in boats and vehicles, ensuring you never get stranded with a dead battery.
- Waterproof design with an IP67 rating, suitable for temporary immersion in marine environments.
- Versatile mounting options: surface, front panel, or rear panel installation.
- Rear insulating cover protects rear contacts from environmental factors.

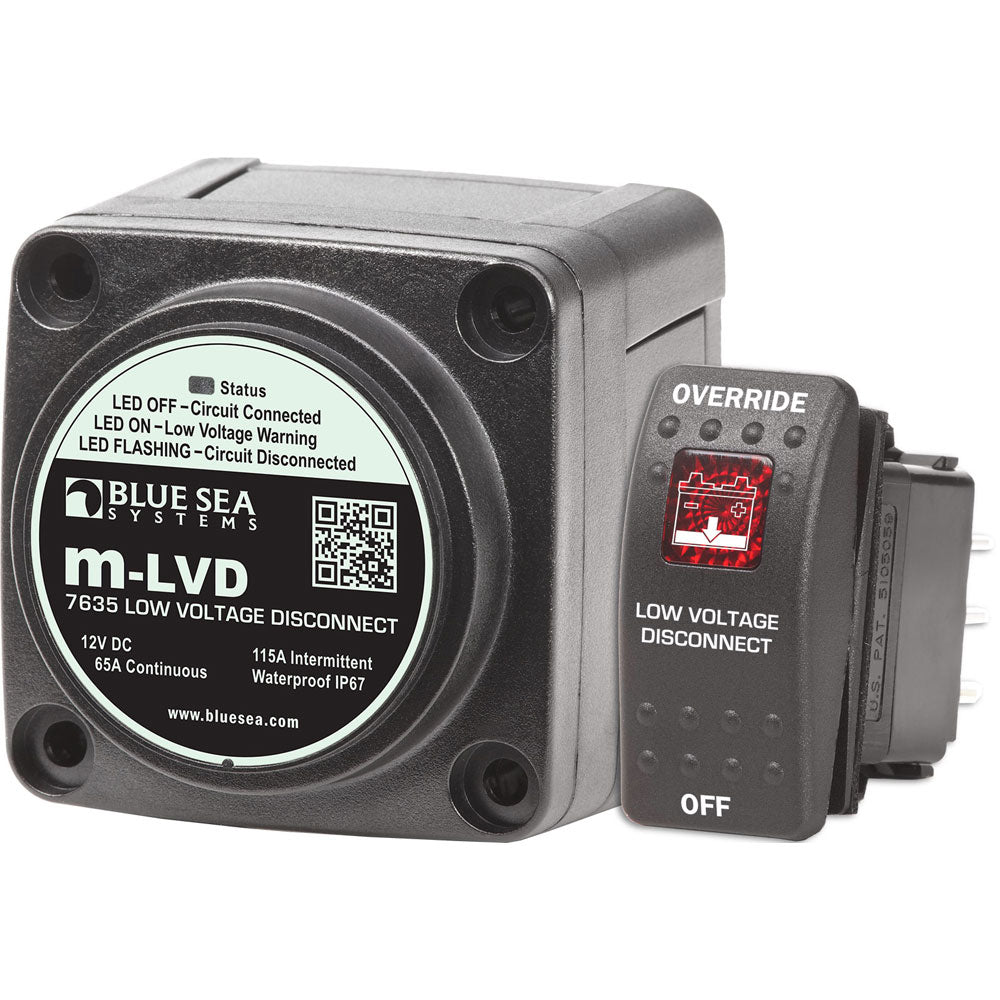

Remote Control Switch Functions
The Remote Control Switch enhances the functionality of the m-LVD by providing intuitive control over your battery management system. The switch includes the following features:
| Function | Description |
|---|---|
| Disconnect Voltage Adjustment | Sets the desired voltage level at which the m-LVD will disconnect non-essential devices. |
| Override | Temporarily delays the circuit disconnect for 10 minutes, allowing you to maintain power temporarily. |
| OFF | Temporarily disconnects circuits until the battery voltage rises above the set threshold. |
| Override or OFF | Silences the alarm (requires an optional alarm module). |
Additional Features
- Status Indicators: Both the m-LVD unit and the Remote Control Switch are equipped with status lights that provide visual warnings of low voltage states prior to disconnecting.
- Audible Warnings: An optional alarm output is available to provide audible warnings when the battery voltage is low.

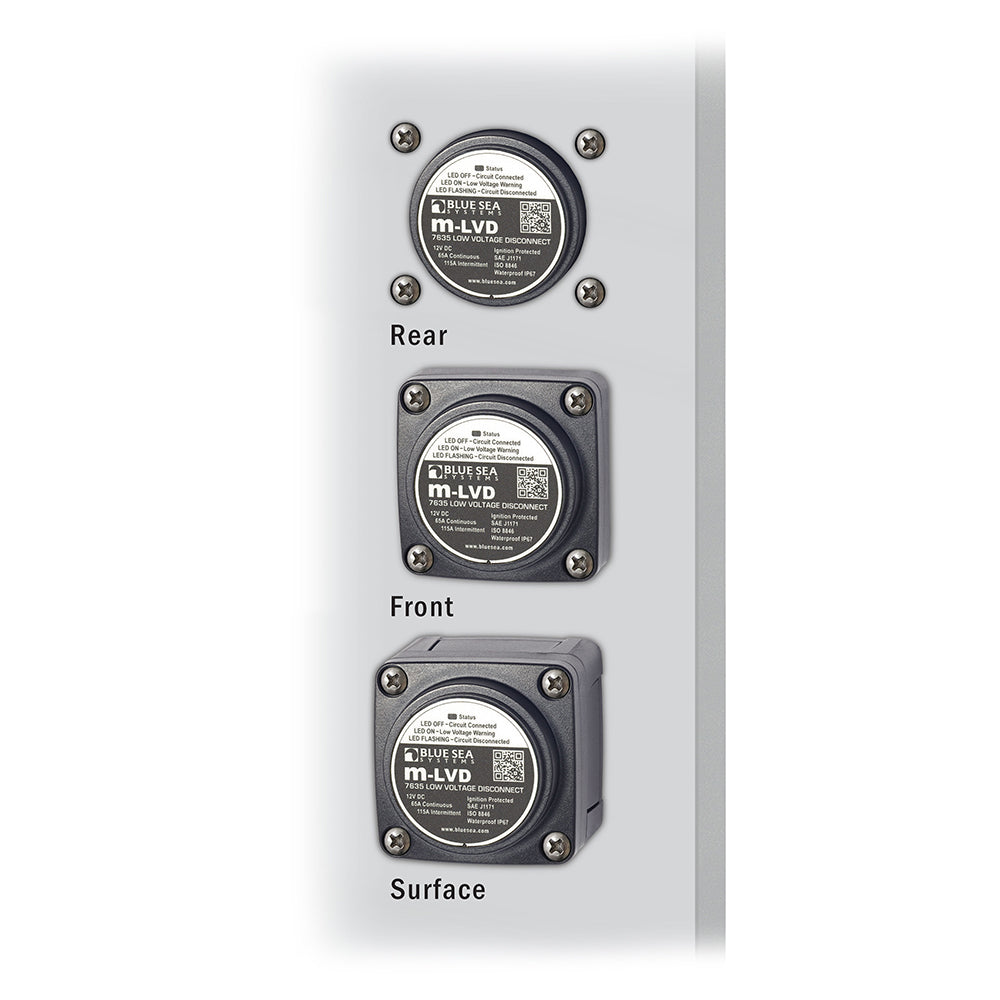

Installation and Mounting
The m-LVD is designed for easy installation in various environments. Its versatile case design allows for mounting on the surface, front panel, or rear panel of your vessel or vehicle. Additionally, the rear insulating cover ensures that the contacts are protected from moisture and corrosion.
Specifications
| Specification | Details |
|---|---|
| Voltage Range | Adjustable disconnect voltage |
| Alarm | Optional audible alarm output |
| Mounting Options | Surface, front panel, or rear panel |
| Waterproof Rating | IP67 certified |
| Override Duration | 10 minutes |
Safety and Compliance
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
