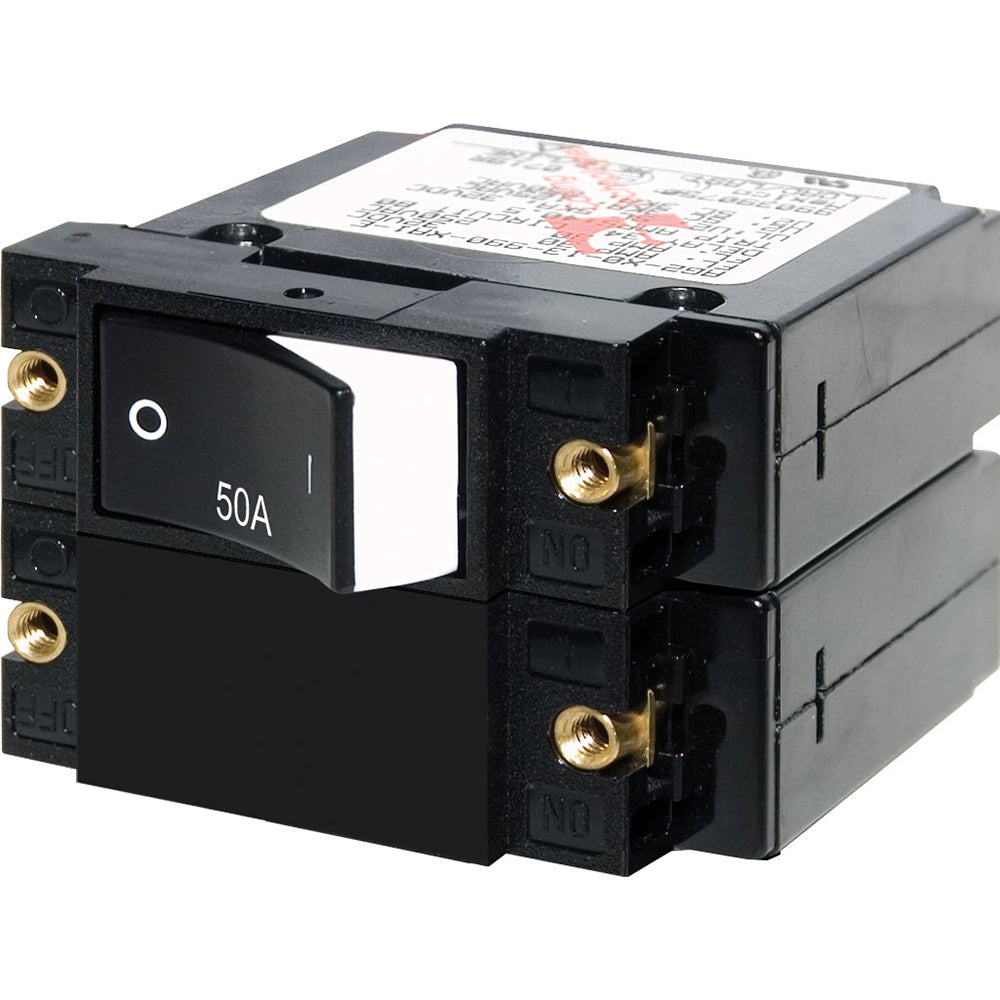

Blue Sea 7577 A-Series Raised Rocker Circuit Breaker - Double Pole - 50A

The A-Series Raised Rocker Circuit Breaker is a reliable and robust double pole 50A circuit breaker designed specifically for marine and boating applications. Engineered to ensure safety and enhance the electrical system of your vessel, this circuit breaker provides superior performance in demanding marine environments.

Features

• Color Actuator: Clearly indicates the "OFF" position for easy monitoring.
• Trip Free Design: Ensures the breaker cannot be held "ON" during fault current conditions, enhancing safety.
• Universal Symbols: International ON/OFF symbols support both vertical and horizontal mounting configurations.

Specifications

Amperage	50A AC / 50A DC
Actuator Style	Raised Rocker
Poles	2
Maximum Voltage	120V AC / 240V AC / 32V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Interrupt Capacity	3000A @ 240V AC / 1500A @ 240V AC [TUV] / 5000A @ 32V DC
Operating Temperature	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10,000
Terminal Screw	#10-32 Stainless Steel
Weight	0.38 lb (0.17 kg)
Box Dimensions	2"H x 3"W x 5"L
UPC	632085075774

Why Choose the A-Series Raised Rocker Circuit Breaker?

Designed for the unique challenges of marine environments, the A-Series Raised Rocker Circuit Breaker offers exceptional durability and performance. Its magnetic hydraulic trip-free mechanism ensures quick and reliable protection against electrical faults, preventing potential hazards on board. The compact design and easy mounting options make it an ideal choice for various marine electrical setups.

Installation and Maintenance

Installing the A-Series Raised Rocker Circuit Breaker is straightforward with its user-friendly design. Ensure you use the recommended #6-32 stainless steel mounting screws and adhere to the specified torque settings for secure installation. Regular maintenance checks are advised to ensure optimal performance and longevity of the circuit breaker.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
