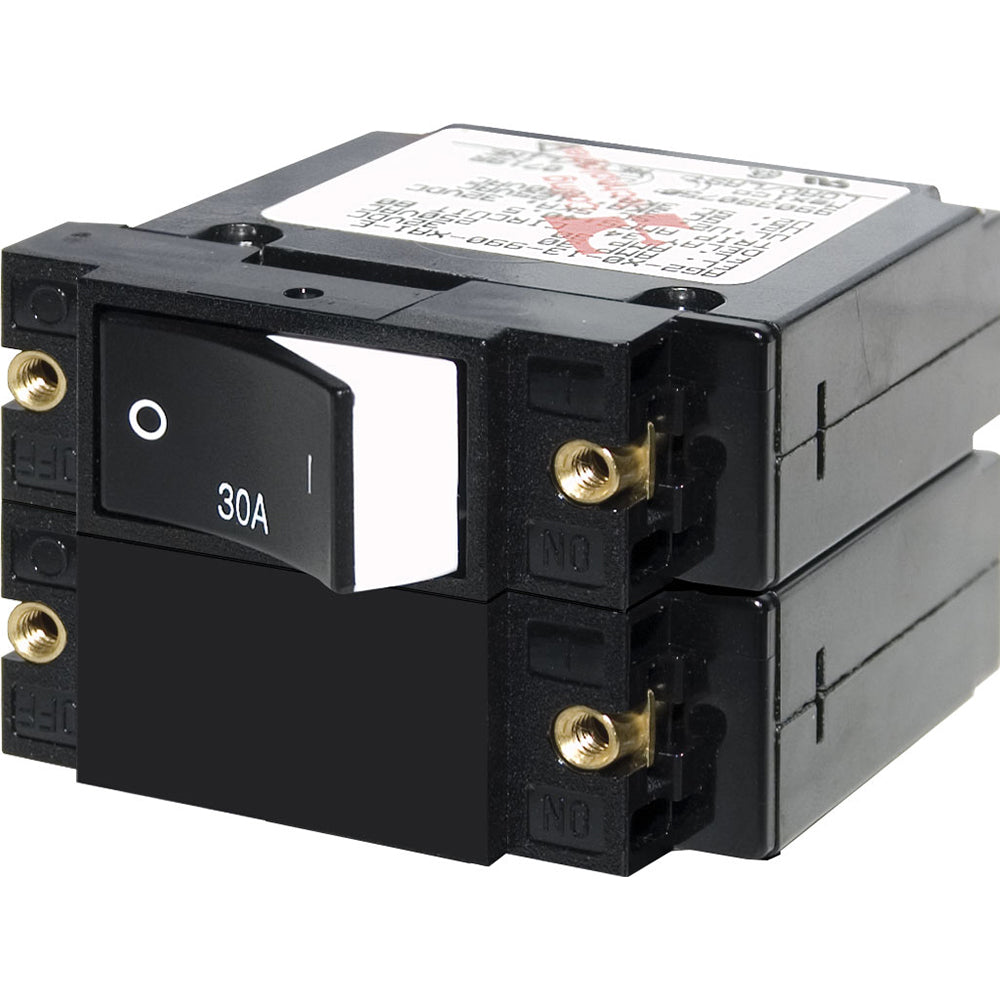

Blue Sea 7574 A-Series Raised Rocker Circuit Breaker - Double Pole - 30A

Introducing the A-Series Raised Rocker Circuit Breaker, a dependable and high-performance double pole 30A solution tailored for marine and boating applications. Designed to withstand the demanding conditions of marine environments, this circuit breaker ensures the safety and reliability of your vessel’s electrical systems.

Key Features

• Color Actuator: Clearly indicates the "OFF" position for easy identification.
• Trip Free Design: Prevents the breaker from being held "ON" during fault current conditions, enhancing safety.
• Versatile Mounting: International ON/OFF symbols support both vertical and horizontal installations, allowing flexible placement in your marine setup.

Technical Specifications

Amperage	30A AC / 30A DC
Actuator Style	Raised Rocker
Poles	2
Maximum Voltage	120V AC / 240V AC / 32V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Interrupt Capacity	3000A @ 240V AC / 1500A @ 240V AC [TUV] / 5000A @ 32V DC
Operating Temperature	Min: -40°C / Max: 85°C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10,000
Terminal Screw	#10-32 Stainless Steel
Weight	0.38 lb (0.17 kg)
Box Dimensions	2" H x 4" W x 5" L
UPC	632085075743

Compliance and Safety

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
