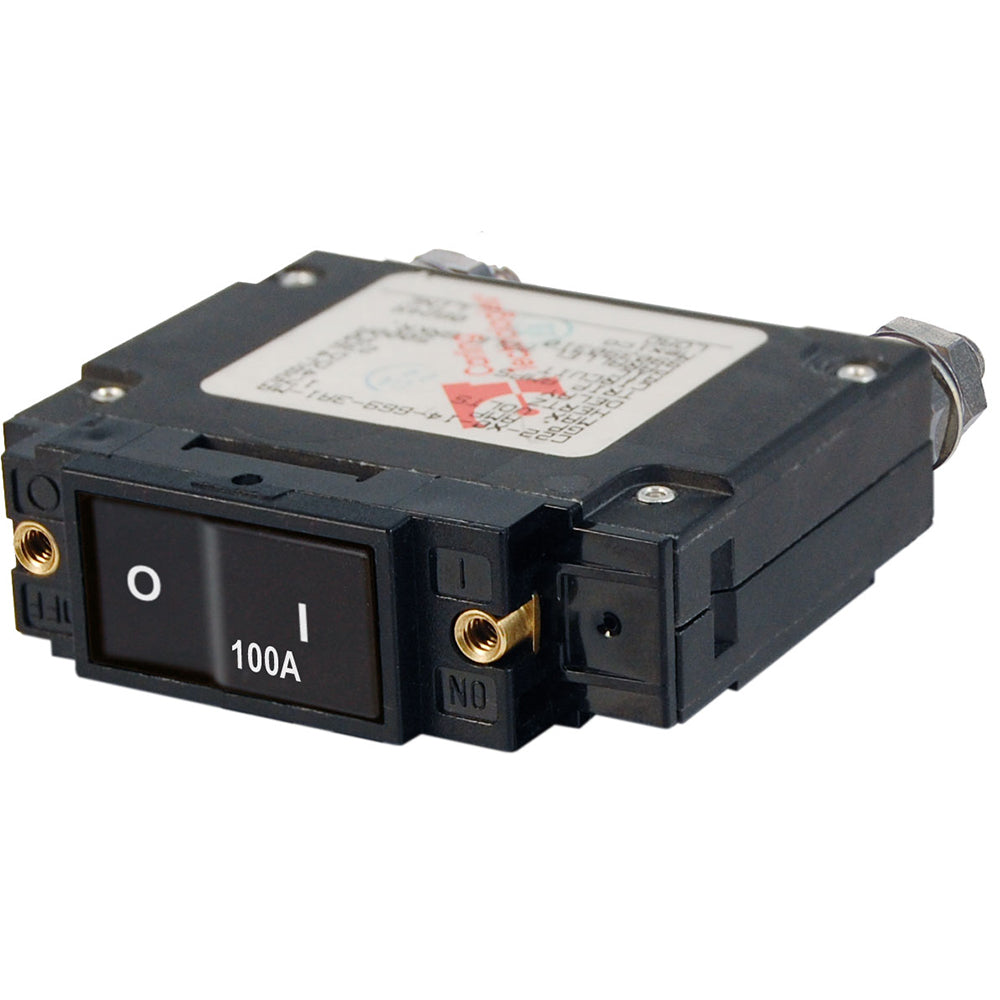

Blue Sea 7549 C-Series Flat Rocker Circuit Breaker - Single Pole - 100A

The C-Series Flat Rocker Circuit Breaker - Single Pole - 100A is engineered for marine and boating applications, providing reliable overcurrent protection and seamless integration into your vessel's electrical system. Its robust design ensures safety and durability, making it an essential component for inverters, bow thrusters, windlasses, and other critical marine equipment.

Features

• Rocker actuator remains flush in the "ON" position, minimizing the risk of accidental switching
• Color-coded actuator clearly indicates the "OFF" position for easy identification
• Provides essential overcurrent protection for inverters, bow thrusters, windlasses, and other marine equipment
• Integrates switching and circuit protection into a single, compact device
• "Trip Free" mechanism ensures the breaker cannot be held closed after tripping, enhancing safety
• Ignition protected for safe installation aboard gasoline-powered boats

Technical Specifications

Amperage	100A AC / 100A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Operating Temperature	Min: -40° C Max: 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10,000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.38 lb (0.17 kg)
Box Dimensions	2" H x 3" W x 5" L
UPC	632085075491
