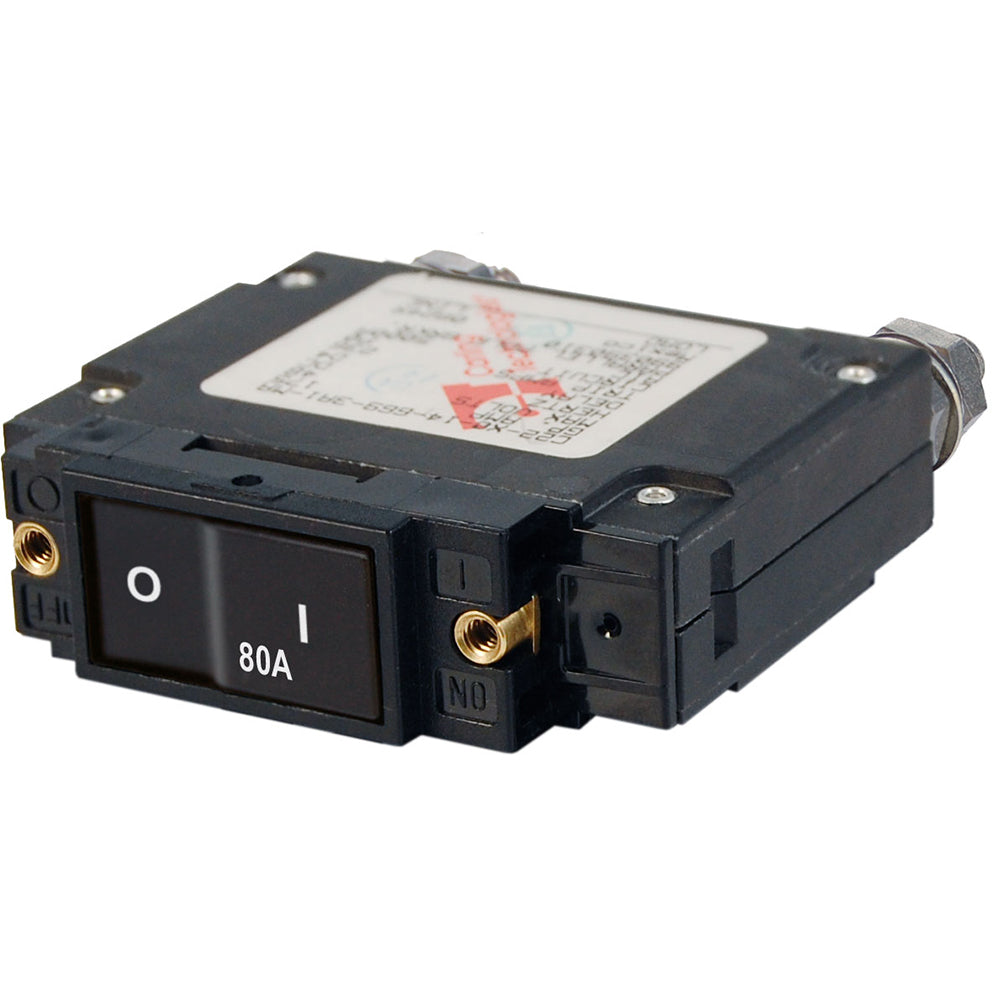

Blue Sea 7548 C-Series Flat Rocker Circuit Breaker - Single Pole - 80A

The C-Series Flat Rocker Circuit Breaker is a reliable and efficient solution designed specifically for marine applications. Engineered to provide superior overcurrent protection, this single-pole breaker is ideal for safeguarding critical systems such as inverters, bow thrusters, and windlasses aboard your boat.

Features

• Rocker actuator remains flush in the "ON" position, preventing accidental switching
• Color-coded actuator clearly indicates the "OFF" position for easy identification
• Offers comprehensive overcurrent protection for essential marine equipment including inverters, bow thrusters, and windlasses
• Integrates switching and circuit protection into a single, compact device for streamlined installation
• "Trip Free" design ensures the breaker cannot be held closed after tripping, enhancing safety
• Ignition protected, making it safe for installation on gasoline-powered boats

Specifications

Amperage	80A AC / 80A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Operating Temperature Range	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10,000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.38 lb (0.17 kg)
Box Dimensions	2"H x 3"W x 5"L
UPC	632085075484
