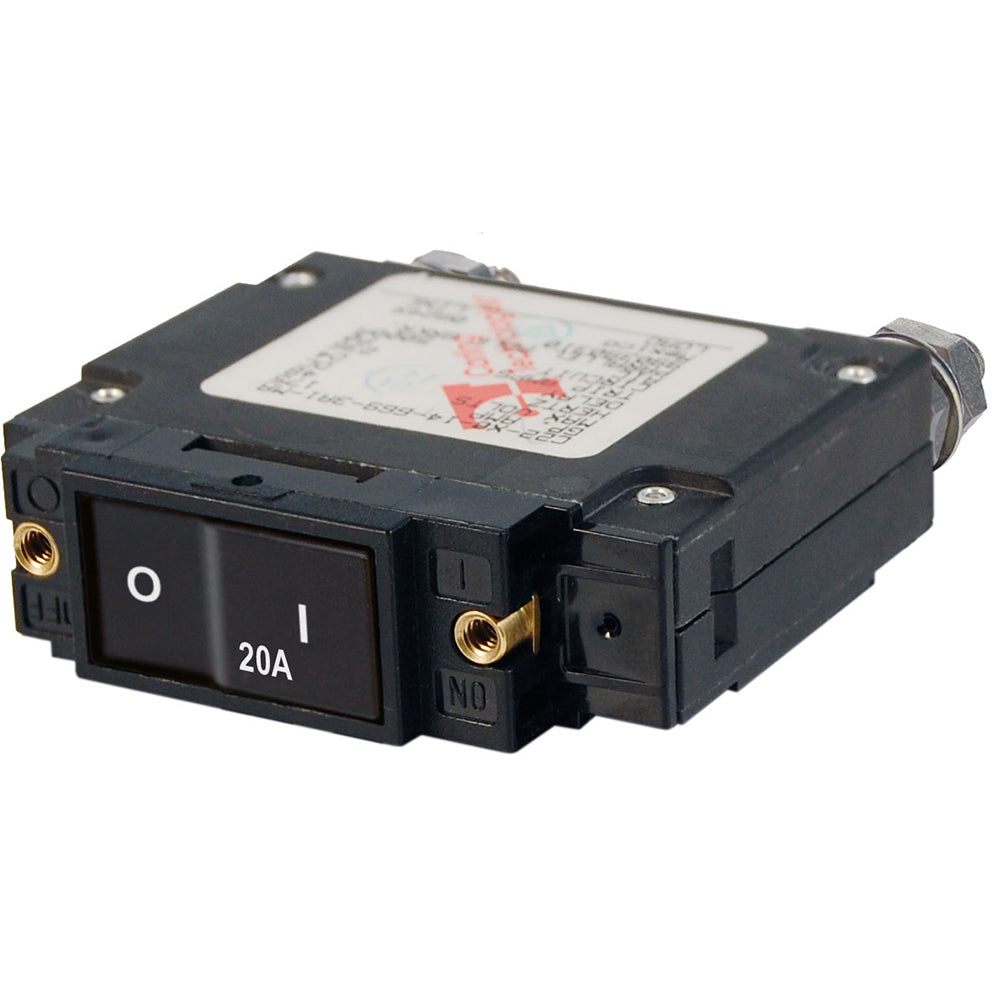

Blue Sea 7543 C-Series Flat Rocker Circuit Breaker - Single Pole - 20A
Blue Sea 7543 C-Series Flat Rocker Circuit Breaker - Single Pole - 20A is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Ensure reliable and safe power management on your marine vessel with the C-Series Flat Rocker Circuit Breaker. Designed specifically for the demanding environment of boats, this single pole 20A breaker combines robust circuit protection with easy operation, making it an essential component for your boat's electrical system.
Features
- Rocker actuator remains flush in the "ON" position, preventing accidental switching
- Color-coded actuator clearly indicates the "OFF" position
- Provides overcurrent protection for essential marine equipment such as inverters, bow thrusters, and windlasses
- Merges switching and circuit protection into one compact device
- "Trip Free" design ensures the breaker cannot be held closed after tripping, enhancing safety
- Ignition protected, making it safe for installation aboard gasoline-powered boats
Specifications
| Amperage | 20A AC / 20A DC |
|---|---|
| Actuator Style | Flat Rocker |
| Poles | 1 |
| Maximum Voltage | 240V AC / 48V DC |
| Circuit Breaker Type | Magnetic Hydraulic - Trip Free |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC |
| Operating Temperature Range | -40°C to 85°C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10,000 |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Weight | 0.38 lb (0.17 kg) |
| Box Dimensions | 2"H x 3"W x 4"L |
| UPC | 632085075439 |
