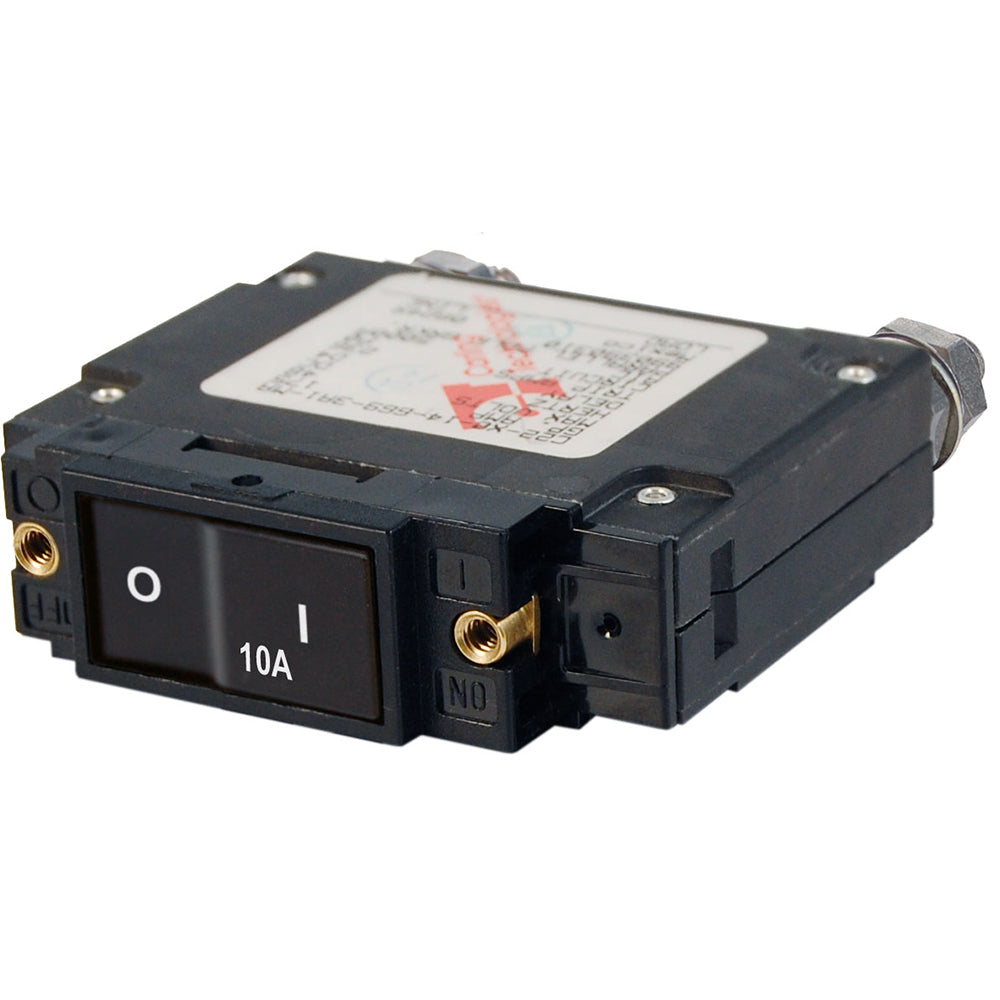

Blue Sea 7541 C-Series Flat Rocker Circuit Breaker - Single Pole - 10A

The C-Series Flat Rocker Circuit Breaker is engineered specifically for marine and boating applications, providing reliable overcurrent protection for essential equipment such as inverters, bow thrusters, and windlasses. Its robust design ensures safety and efficiency, making it an ideal choice for seaworthy vessels.

Key Features

• Rocker actuator remains flush in the "ON" position, preventing accidental switching
• Color-coded actuator clearly indicates the "OFF" position for easy identification
• Combines switching and circuit protection in a single, compact device
• Offers "Trip Free" functionality, ensuring it cannot be held closed after tripping
• Ignition protected, making it safe for installation on gasoline-powered boats

Technical Specifications

Parameter	Details
Amperage	10A AC / 10A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Operating Temperature Range	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10,000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.38 lb (0.17 kg)
Box Dimensions	1" H x 1" W x 12" L
UPC	632085075415
