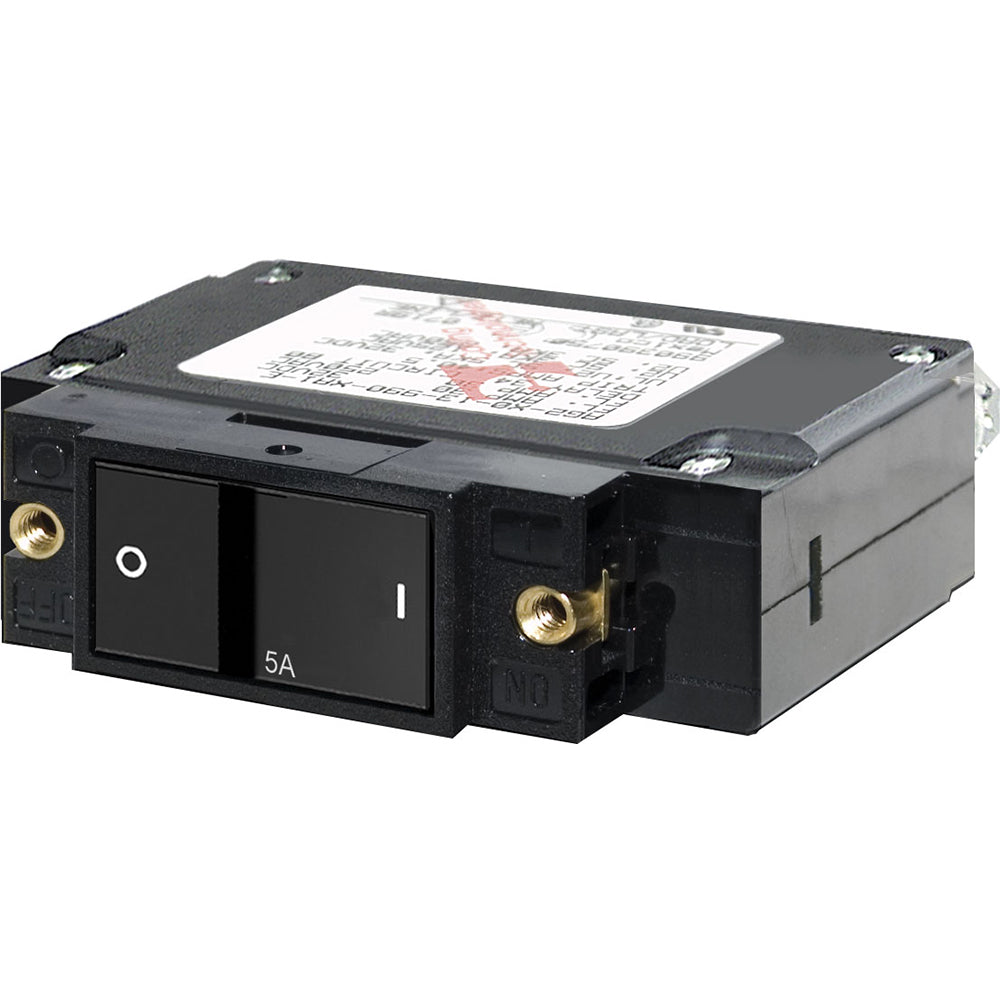

Blue Sea 7540 C-Series Flat Rocker Circuit Breaker - Single Pole - 5A

The C-Series Flat Rocker Circuit Breaker - Single Pole - 5A is an essential component for marine and boating electrical systems, offering reliable overcurrent protection for inverters, bow thrusters, windlasses, and more. Designed to integrate switching and circuit protection into a single, durable device, this circuit breaker ensures the safety and efficiency of your vessel's electrical setup.

Features

• Rocker actuator remains flush in the "ON" position, minimizing the risk of accidental switching
• Color-coded actuator clearly indicates the "OFF" position for easy identification
• Provides robust overcurrent protection tailored for marine applications such as inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into one compact and efficient device
• "Trip Free" mechanism ensures the breaker cannot be held closed after tripping, enhancing safety
• Ignition protected, making it safe for installation aboard gasoline-powered boats

Specifications

Amperage	5A AC / 5A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10,000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.35 lbs (0.17 kg)
Box Dimensions	2" H x 3" W x 5" L
UPC	632085075408
