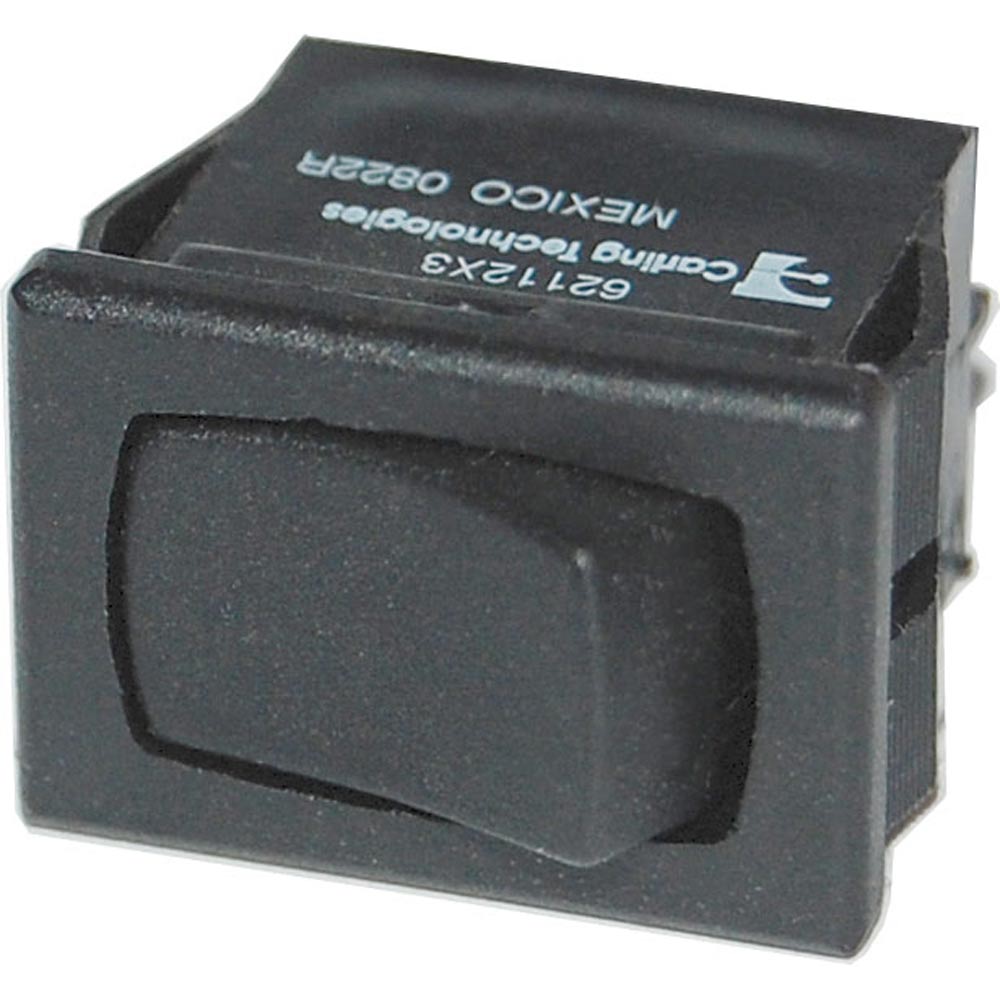

Blue Sea 7493 360 Panel - Rocker Switch DPDT - ON-(ON)

The 360 Panel - Rocker Switch DPDT is a vital component for marine and boating applications, providing reliable and flexible control for various electrical systems on your vessel. Designed to withstand the harsh marine environment, this double pole double throw switch ensures seamless operation of multiple functions within a single panel, enhancing the efficiency and safety of your boat's electrical setup.

Features

• Designed specifically for marine and boating environments
• Compatible with a wide range of 360 Panel modules, including Gauge, DC Push Button + Switch, and DC Battery Management
• Robust construction ensures durability and longevity in demanding conditions
• Easy installation with wire leads and standard terminal sizes
• Versatile action with ON-(ON) momentary functionality
• Supports future expansions and rapid assembly for customizable setups

Specifications

Attribute	Details
Action	ON-(ON)
Pole/Throw	DPDT (Double Pole/Double Throw)
Maximum Amperage	8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC
Terminal Type	Wire Leads
Terminal Size	6.00" (152.4mm)
Weight	0.08 lb (0.04 kg)
Color	Black
Box Dimensions	1"H x 2"W x 7"L
WT	0.05 lbs
UPC	632085074937

Understanding Your Switch

Action: The switch features an ON-(ON) momentary action, allowing for temporary activation of connected devices.

Pole/Throw: With a DPDT configuration, this switch can control two separate circuits simultaneously, providing enhanced functionality for complex electrical systems.

Maximum Amperage: Ensure safe operation by adhering to the maximum amperage ratings: 8A at 125V AC, 5A at 12V DC, 5A at 24V DC, and 4A at 250V AC. Always use appropriately sized fuses and wiring to match your specific application.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
