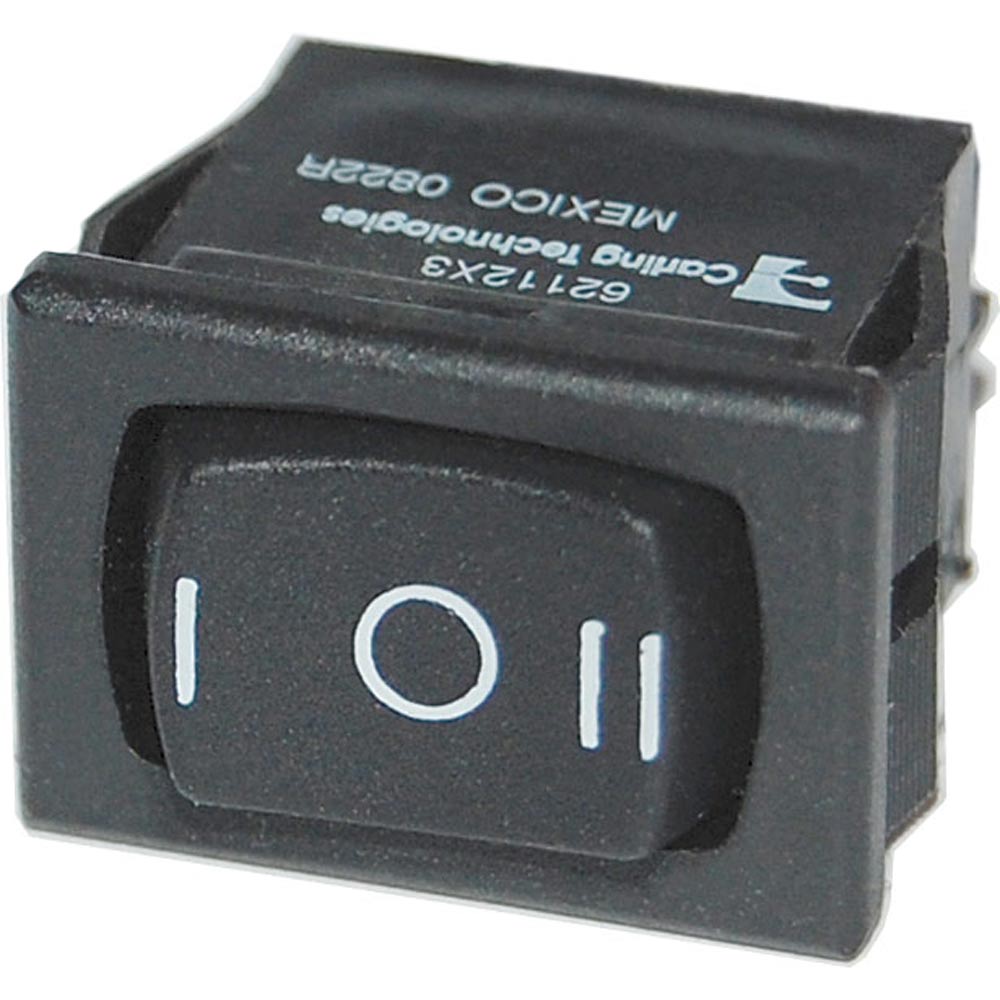

Blue Sea 7484 360 Panel - Rocker Switch SPDT - (ON)-OFF-(ON)

The 360 Panel - 7484 Rocker Switch SPDT is a versatile and reliable switch designed specifically for marine and boating applications. Its robust construction and flexible functionality make it an essential component for managing various electrical systems onboard your vessel.

Features

The 360 Panel System utilizes an open frame design, allowing for the easy mounting of a wide range of modules. This flexibility enables multiple functions to be integrated into a single panel, providing streamlined control over your boat's electrical systems.

• Open frame design for versatile module mounting
• Supports multiple functions within a single panel
• Highly adaptable for future modifications
• Rapid assembly for efficient installation
• Options available for battery management and source selection

Ideal for use in 360 panels, this rocker switch seamlessly integrates with modules such as Gauge, DC Push Button + Switch, and DC Battery Management, ensuring comprehensive control over your marine electrical setup.

Specifications

Feature	Details
Action	(ON)-OFF-(ON)
Pole/Throw	SPDT
Maximum Amperage	8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC
Terminal Type	Quick Connect Tab
Terminal Size	0.187" (4.75mm)
Weight	0.08 lb (0.04 kg)
Color	Black
Box Dimensions	1"H x 3"W x 5"L
UPC	632085074845

Note:

• Action: Momentary ON
• Pole/Throw Definitions:
  • SPST - Single Pole/Single Throw
  • SPDT - Single Pole/Double Throw
  • DPST - Double Pole/Single Throw
  • DPDT - Double Pole/Double Throw
• Maximum Amperage: Ratings dependent on the use of appropriately sized fuses and wiring for a given application.

Compliance and Safety

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
