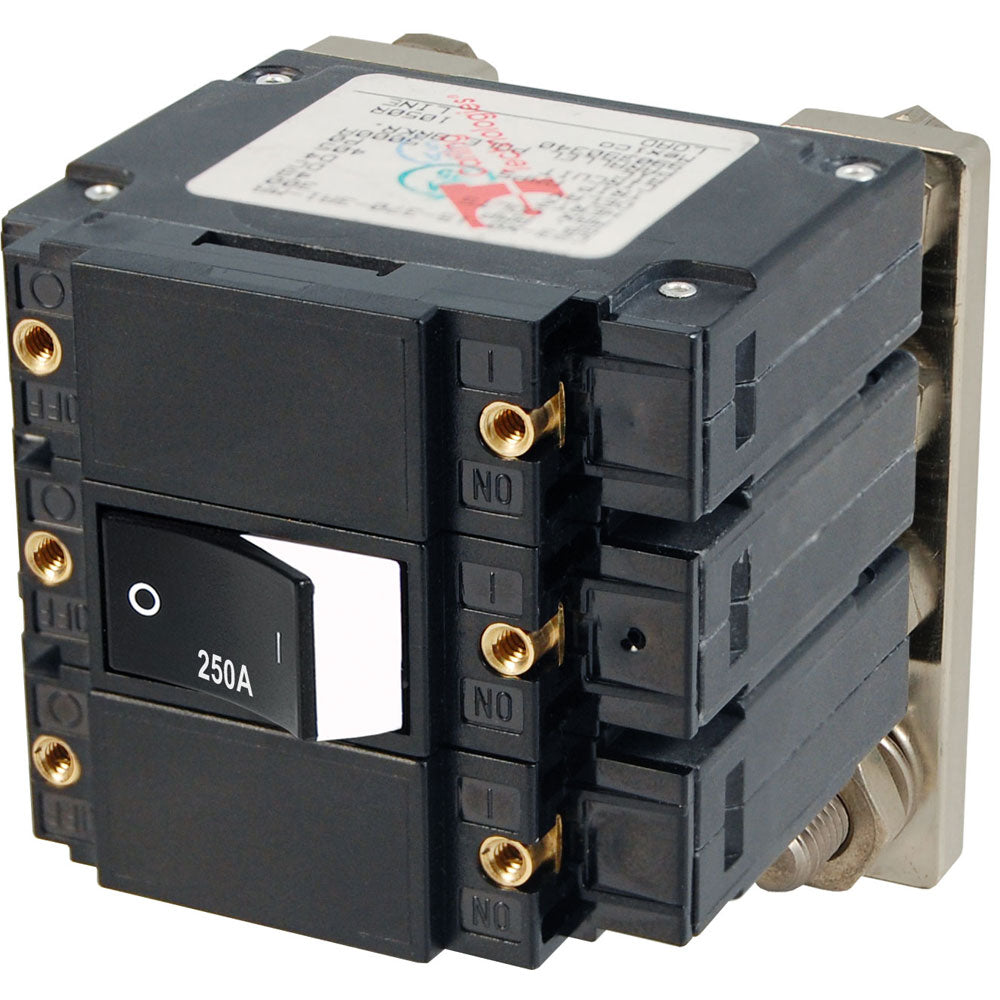

Blue Sea 7477 C - Series Flat Circuit Breaker, Single and Double Pole - 250 Amp

The C-Series Flat Circuit Breaker is an essential component for marine and boating electrical systems, offering reliable protection for your vessel’s electrical circuits. Designed for both single and double pole configurations, this breaker ensures safety and durability even in the harshest marine environments.

Key Features

• Color Actuator: Clearly indicates the "OFF" position for easy monitoring.
• Trip-Free Design: Prevents the breaker from being held "ON" during fault current conditions, enhancing safety.
• Flat Actuator: Protects against accidental switching, ensuring stable electrical performance.

Technical Specifications

Specification
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	80 Volts DC
Amperage	250 Amp
Rated Switch Cycles	10,000 @ Rated Amperage and Voltage
Box Dimensions	4" H x 5" W x 6" L
Weight	1.35 lbs
UPC	632085074777

Why Choose the C-Series Flat Circuit Breaker for Your Boat?

Marine environments demand circuit breakers that can withstand exposure to moisture, salt, and constant vibrations. The C-Series Flat Circuit Breaker is engineered to meet these challenges, providing:

• Durability: Built with high-quality materials to resist corrosion and wear.
• Reliability: Ensures consistent performance, minimizing the risk of electrical failures.
• Easy Installation: Compact design allows for straightforward integration into your boat’s electrical system.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Specifications

• Amperage: 250 Amp
• Box Dimensions: 4" H x 5" W x 6" L
• Weight: 1.35 lbs
• UPC: 632085074777
