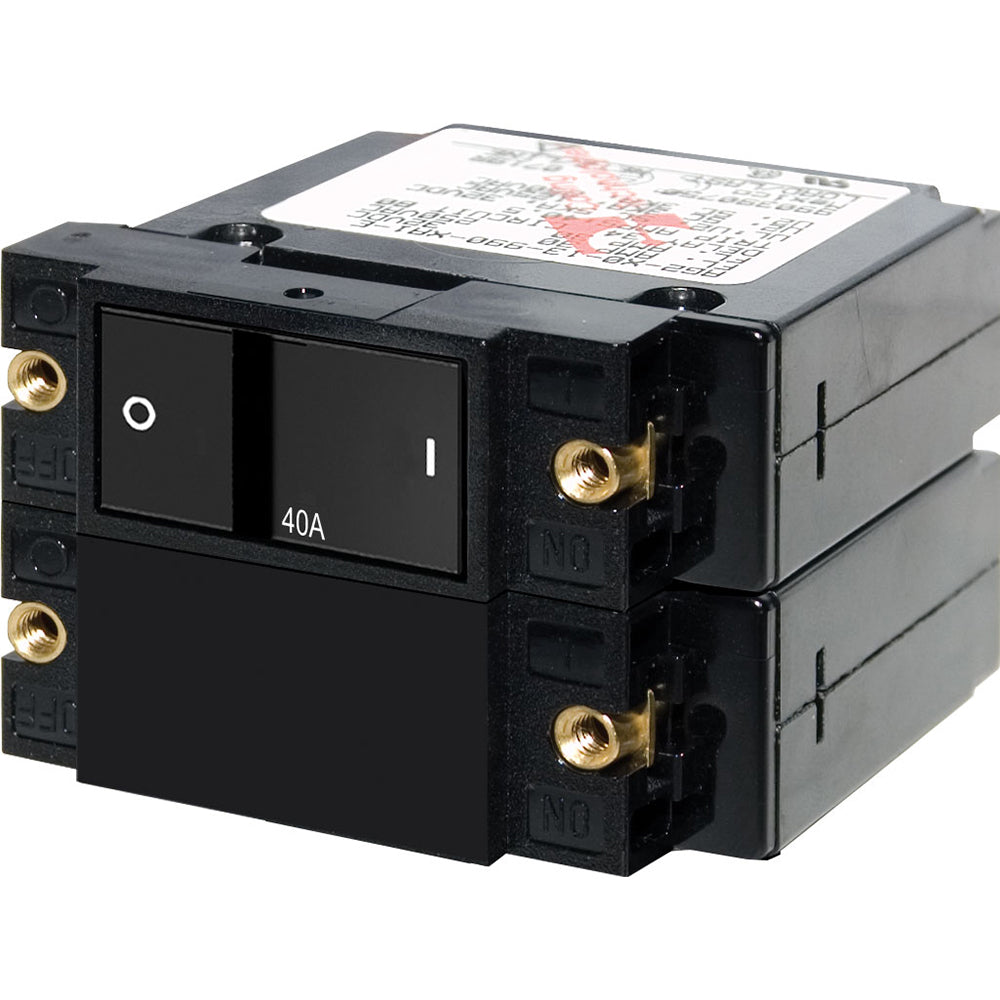

Blue Sea 7416 A-Series Flat Rocker Circuit Breaker - Double Pole - 40A

The A-Series Flat Rocker Circuit Breaker is a reliable double-pole 40A breaker designed specifically for marine and boating applications. Engineered to provide robust protection for your vessel's electrical system, this circuit breaker ensures safety and durability even in the harshest marine environments.

Features

• Color-coded actuator clearly indicates the "OFF" position for easy identification
• "Trip Free" design ensures the breaker cannot be held "ON" during fault conditions, enhancing safety
• International ON/OFF symbols allow for flexible vertical or horizontal mounting options

Specifications

Electrical Specifications
Amperage	40A AC / 40A DC
Maximum Voltage	120V AC / 240V AC / 32V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Interrupt Capacity	3000A @ 240V AC / 1500A @ 240V AC [TUV] / 5000A @ 32V DC
Mechanical Specifications
Actuator Style	Flat Rocker
Poles	2
Switching Cycles	10,000
Temperature Range
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	85°C
Mounting Details
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Terminal Screw	#10-32 Stainless Steel
Physical Specifications
Weight	0.38 lb (0.17 kg)
Box Dimensions	2"H x 3"W x 5"L
UPC	632085074166
