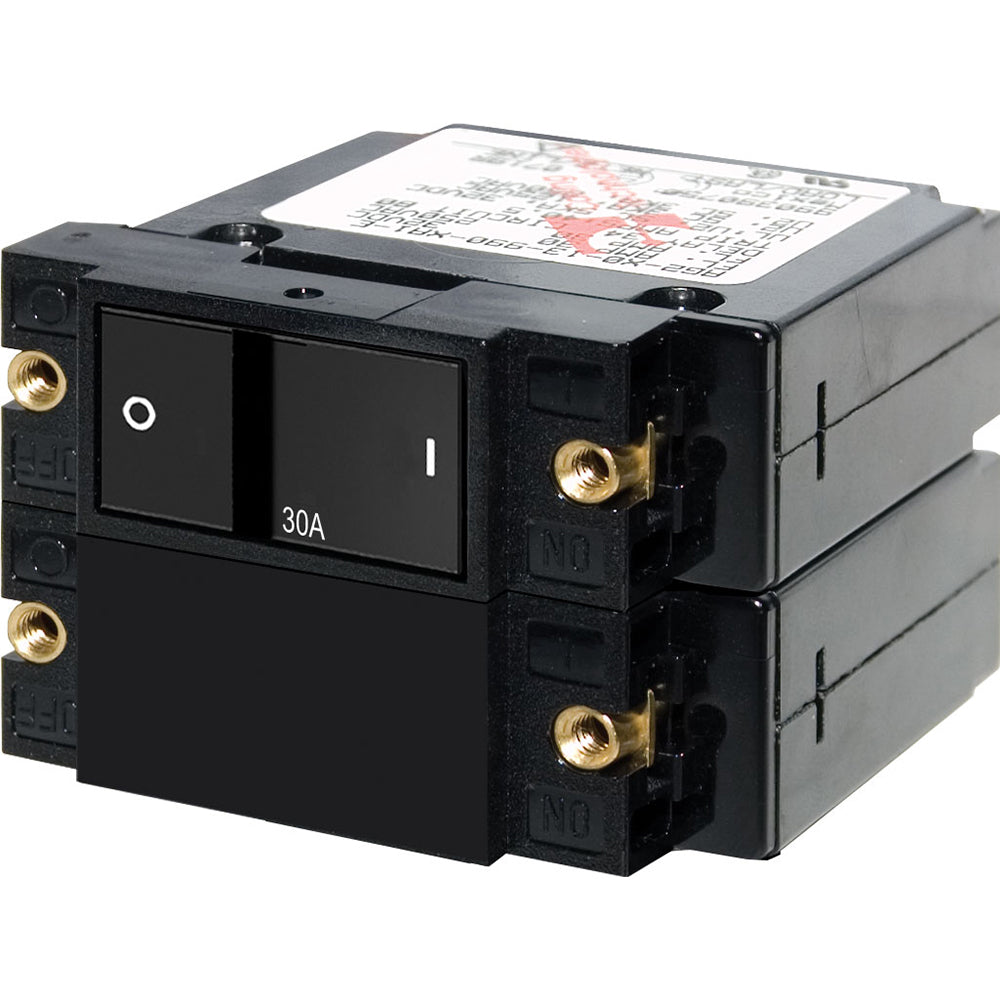

Blue Sea 7414 A-Series Flat Rocker Circuit Breaker - Double Pole - 30A

Ensure the safety and reliability of your vessel’s electrical system with our A-Series Flat Rocker Circuit Breaker. Designed specifically for marine and boating applications, this double pole 30A circuit breaker provides robust protection against overcurrent conditions, ensuring your onboard electronics operate smoothly and safely.

Features

• Visual OFF Indicator: The color actuator clearly displays when the circuit is in the "OFF" position, allowing for easy monitoring even in challenging marine environments.
• Trip Free Design: This safety feature ensures the breaker cannot remain "ON" during fault current conditions, preventing potential electrical hazards on your vessel.
• Versatile Mounting: Equipped with international ON/OFF symbols, this breaker supports both vertical and horizontal installations, providing flexibility to fit various marine applications.

Specifications

Parameter	Details
Amperage	30A AC / 30A DC
Actuator Style	Flat Rocker
Poles	2
Maximum Voltage	120V AC / 240V AC / 32V DC
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Interrupt Capacity	3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
Operating Temperature	-40° C to 85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10,000
Terminal Screw	#10-32 Stainless Steel
Weight	0.38 lb (0.17 kg)
Box Dimensions	2"H x 3"W x 4"L
UPC	632085074142
