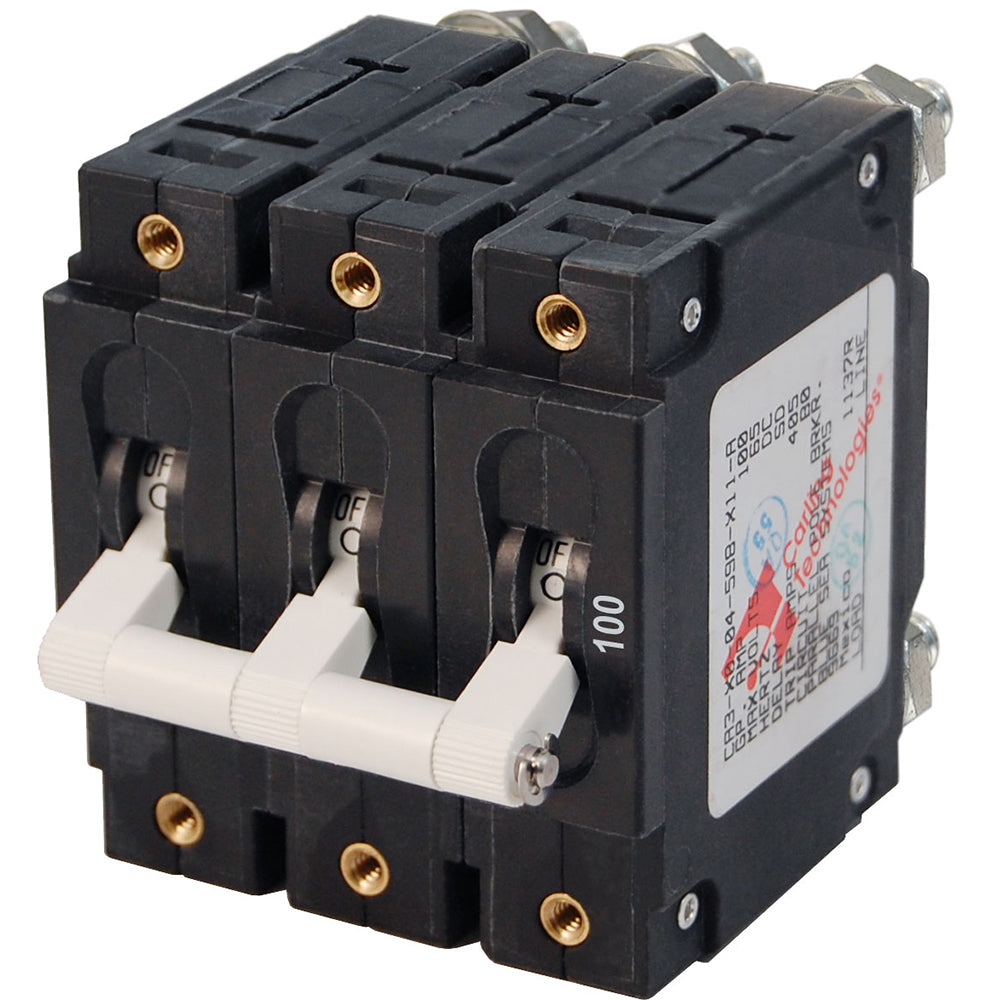

Blue Sea 7290 C-Series Triple Pole Circuit Breaker - 100A

The C-Series Toggle is a high-performance circuit breaker designed specifically for marine and boating applications. With its reliable 100A amperage and robust construction, it ensures optimal protection for your vessel’s electrical systems, meeting stringent ABYC standards.

Product Details

Part Number (PN)	7290
Poles	3
Color	White
Amperage	100A

Features

• 5,000 Ampere interrupt capacity meets ABYC requirements for 120/240 Volt 50 Ampere main protection.
• Double pole configuration acts as a 120-volt AC main circuit breaker, effectively switching both hot and neutral lines.
• Triple pole configuration functions as a 240-volt AC main circuit breaker, switching two hot lines and the neutral.
• Integrated safety mechanism ensures that both double and triple pole breakers trip all poles if any single pole is triggered.
• “Trip Free” design guarantees that the breaker cannot remain in the "ON" position during fault current conditions, enhancing safety.

Specifications

Amperage	100A
Box Dimensions	4"H x 5"W x 5"L
Weight	0.9 lbs
UPC	632085072902

Compliance and Safety

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
