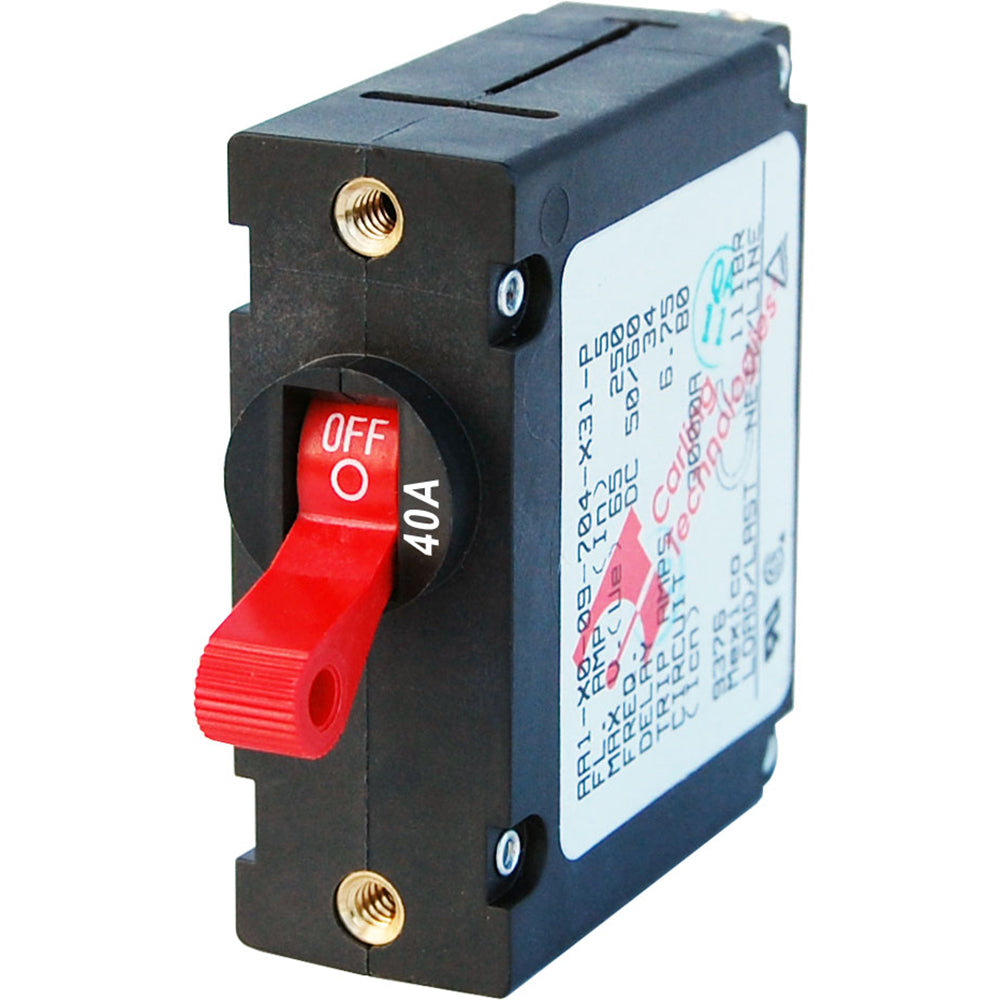

Blue Sea 7225 AC / DC Single Pole Magnetic World Circuit Breaker - 40 Amp

The AC/DC Single Pole Magnetic World Circuit Breaker is an essential component for marine electrical systems, offering reliable protection and seamless switching capabilities tailored for boats and yachts. Engineered to meet international safety standards, this circuit breaker ensures optimal performance and safety in diverse marine environments.

Product Features

• Complies with American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada
• Industry standard circuit breaker for Blue Sea Systems electrical panels
• Integrates switching and circuit protection into a single device
• Single pole Quick Trip models designed specifically for electronics protection
• “Trip Free” design prevents the breaker from being held “ON” during fault current conditions

Key Specifications

Part Number (PN)	7225
Color	Red
Amperage	40 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage

Additional Specifications

Box Dimensions	1" H x 3" W x 5" L
Weight	0.2 lbs
UPC	632085072254
