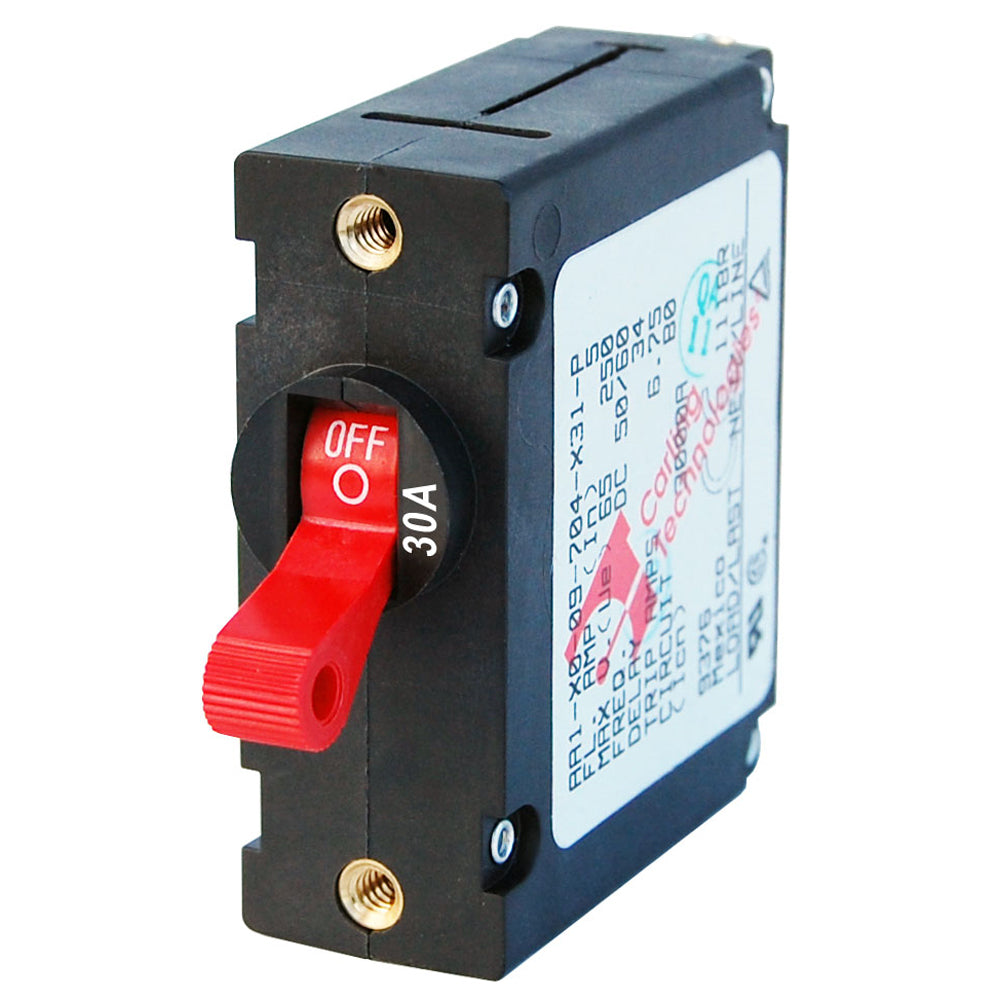

Blue Sea 7221 AC / DC Single Pole Magnetic World Circuit Breaker - 30 Amp

The AC/DC Single Pole Magnetic World Circuit Breaker is a reliable and efficient solution designed specifically for marine and boating electrical systems. Engineered to provide superior circuit protection and seamless switching, this circuit breaker ensures the safety and longevity of your vessel's electrical components.

Key Features

• Industry Standard Compatibility: Perfectly integrates with Blue Sea Systems electrical panels, ensuring seamless installation and performance.
• Integrated Switching and Protection: Combines the functionality of a switch and a circuit breaker into a single, compact device, simplifying your electrical setup.
• Quick Trip Design: Single pole Quick Trip models are optimized for protecting sensitive electronics, providing rapid response to electrical faults.
• Trip Free Mechanism: The "Trip Free" design guarantees that the breaker cannot be held in the "ON" position during a fault condition, enhancing safety by preventing potential electrical hazards.

Technical Specifications

Specification
Model Number	7221
Color	Red
Amperage	30 Amp
Delay Type	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 at rated amperage and voltage
Box Dimensions	1" H x 2" W x 4" L
Weight	0.2 lbs
UPC	632085072216

Certifications & Compliance

• Meets all American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE Marked for Europe
• CSA Certified for Canada
