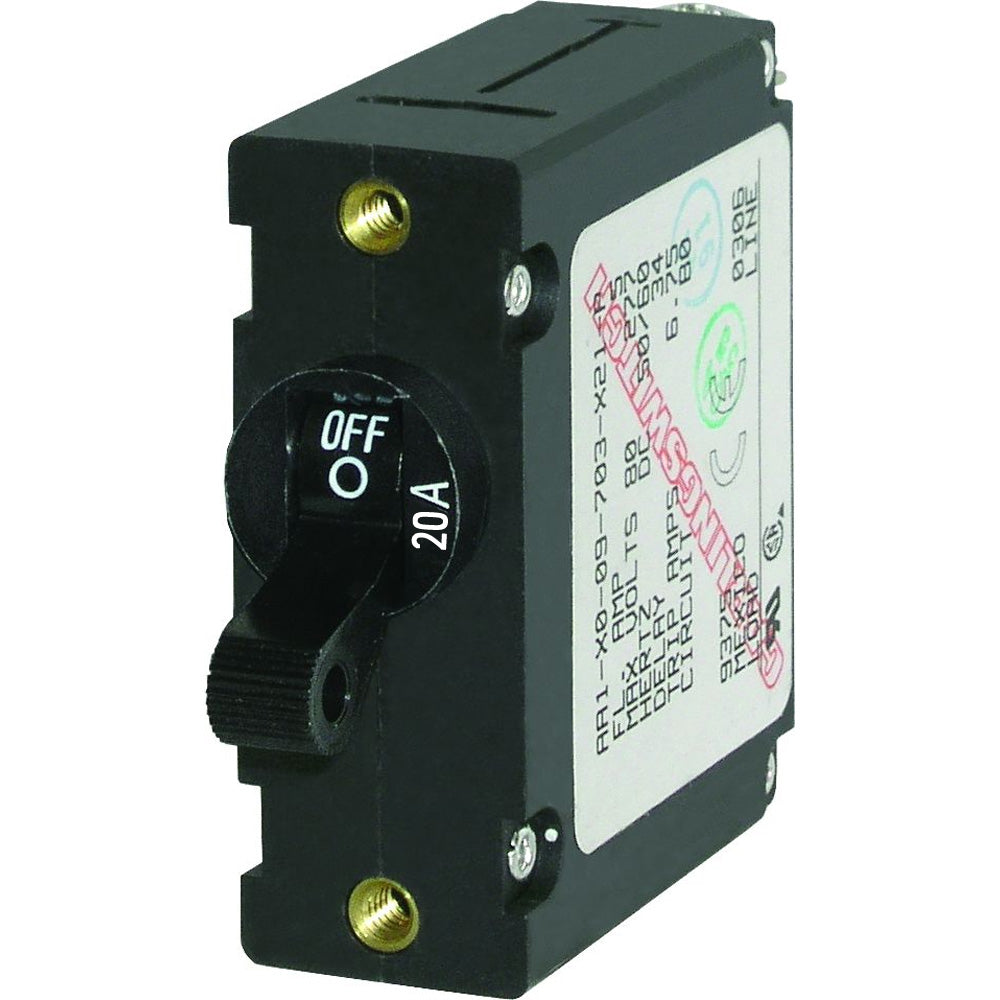

Blue Sea 7212 AC / DC Single Pole Magnetic World Circuit Breaker - 20 Amp

The AC/DC Single Pole Magnetic World Circuit Breaker is a reliable and robust solution designed for marine electrical systems. Engineered to deliver superior protection and seamless switching, it ensures the safety and efficiency of your boat’s electrical setup.

Product Overview

The World Circuit Breaker adheres to all American Boat and Yacht Council (ABYC) Standards, ensuring top-notch quality and safety for your marine applications. Certified with UL 1077 Recognition, TUV Certification, CE marking for Europe, and CSA Certification for Canada, this circuit breaker is a versatile choice for boats and yachts worldwide.

Key Features

• Industry-standard circuit breaker compatible with Blue Sea Systems electrical panels
• Integrates switching and circuit protection in a single device
• Single pole Quick Trip models specifically designed for electronics protection
• “Trip Free” mechanism ensures the breaker cannot remain "ON" during fault current conditions

Technical Specifications

Specification
Part Number (PN)	7212
Color	Black
Amperage	20 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage
Box Dimensions	1" H x 3" W x 5" L
Weight	0.15 lbs
UPC	632085072124

Compliance and Certifications

This product meets the rigorous standards set by the American Boat and Yacht Council (ABYC) and is certified by UL 1077, TUV, CE (Europe), and CSA (Canada). These certifications ensure compatibility and safety across various marine electrical systems globally.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
