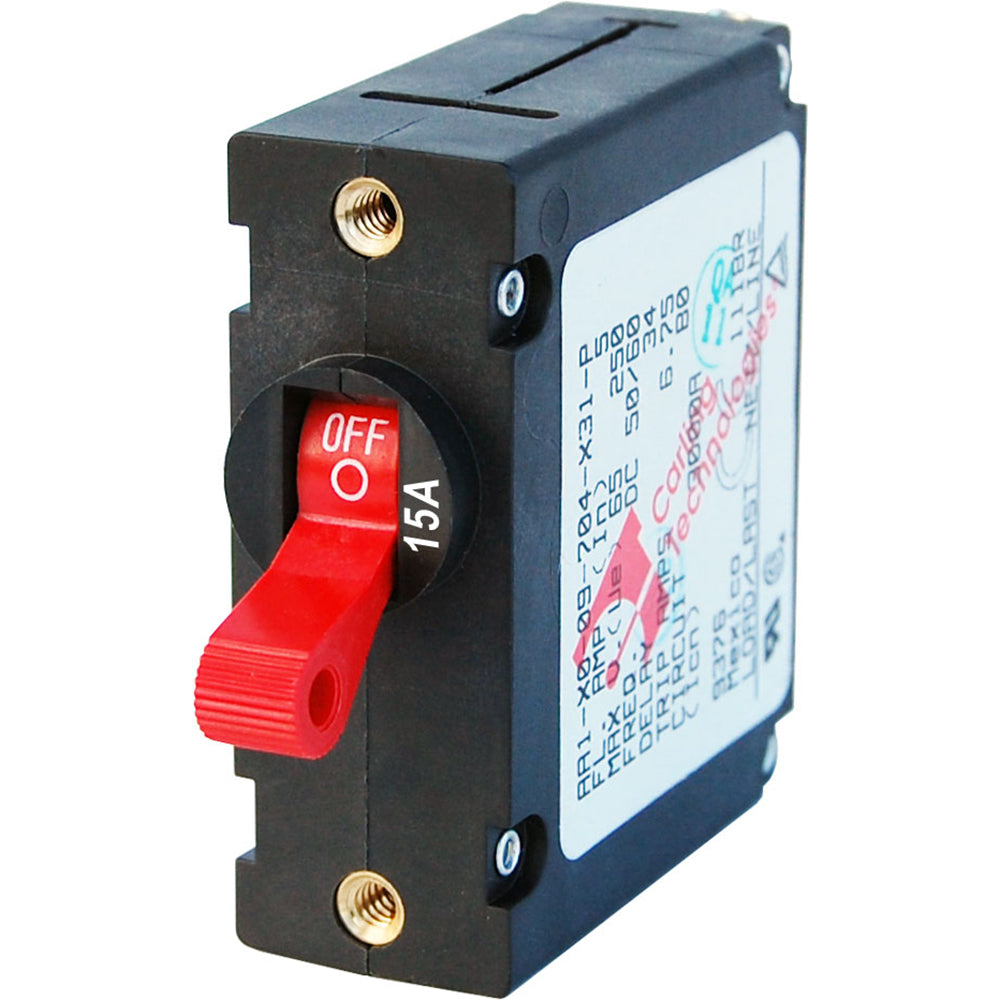

Blue Sea 7209 AC / DC Single Pole Magnetic World Circuit Breaker - 15 Amp

The AC/DC Single Pole Magnetic World Circuit Breaker is expertly crafted to provide superior protection for your marine electrical systems. Compliant with all major marine and safety standards, this circuit breaker delivers reliable performance and easy integration into your boat or yacht's electrical panel.

Features

• Industry Standard: Designed to fit Blue Sea Systems electrical panels seamlessly.
• Integrated Design: Combines switching and circuit protection in a single, compact unit.
• Quick Trip Protection: Single pole Quick Trip models are specifically engineered to protect sensitive electronics.
• Trip Free Mechanism: Ensures the breaker cannot stay in the "ON" position during a fault current, enhancing safety.

Technical Specifications

Specification
Part Number (PN):	7209
Color:	Red
Amperage:	15 Amp
Delay:	Standard
Circuit Breaker Type:	Magnetic Hydraulic - Trip Free
Maximum Voltage:	277 Volts AC / 65 Volts DC
Rated Switch Cycles:	10,000 @ rated amperage and voltage

Additional Details

• Box Dimensions: 2"H x 3"W x 4"L
• Weight: 0.2 lbs
• UPC: 632085072094

Certifications

• American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE Marked for Europe
• CSA Certified for Canada
