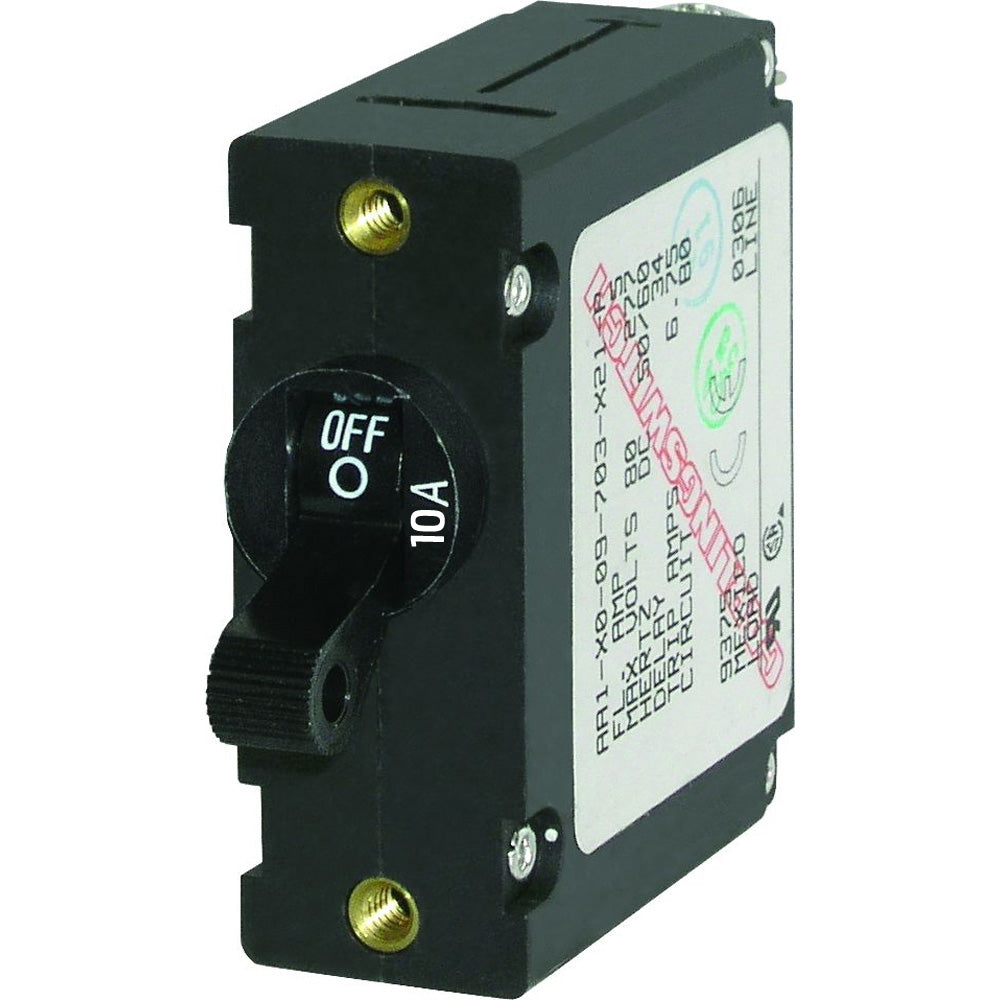

Blue Sea 7204 AC / DC Single Pole Magnetic World Circuit Breaker - 10 Amp

The AC/DC Single Pole Magnetic World Circuit Breaker is a pivotal component for marine and boating electrical systems, delivering dependable protection and efficient switching for your vessel. Designed to withstand the demanding marine environment, this circuit breaker ensures the safety and longevity of your boat's electrical infrastructure.

Key Features

• Industry Standard Compatibility: Seamlessly integrates with Blue Sea Systems electrical panels, ensuring reliable performance in marine applications.
• Integrated Switching and Protection: Combines switching functionality and circuit protection into a single, compact device for streamlined electrical management.
• Electronics Protection: Single Pole Quick Trip models are specifically engineered to safeguard sensitive marine electronics from electrical faults.
• Trip Free Design: Prevents the circuit breaker from being held in the "ON" position during a fault condition, enhancing overall safety.

Specifications

Parameter
Part Number (PN)	7204
Color	Black
Amperage	10 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage
Box Dimensions	1" H x 3" W x 5" L
Weight	0.2 lbs
UPC	632085072049

Compliance and Certifications

The World Circuit Breaker adheres to all major marine and safety standards, ensuring top-notch quality and reliability:

• American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE Marked for Europe
• CSA Certified for Canada

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Specifications

• Amperage: 10A
• Box Dimensions: 1" H x 3" W x 5" L
• Weight: 0.2 lbs
• UPC: 632085072049
