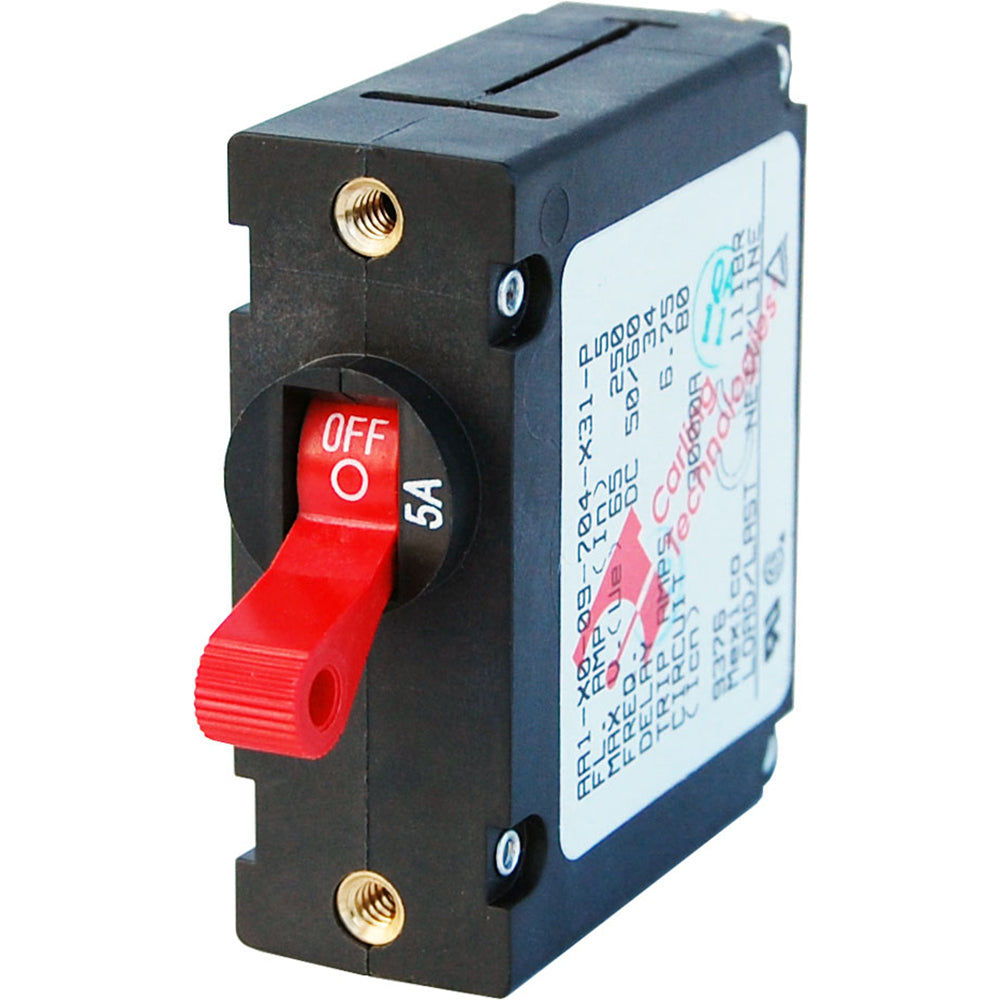

Blue Sea 7201 AC/DC Single Pole Magnetic World Circuit Breaker - 5 AMP

The AC/DC Single Pole Magnetic World Circuit Breaker is a crucial component for marine electrical systems, providing reliable circuit protection and seamless switching to ensure the safety and efficiency of your boat's electrical setup.

Product Overview

The World Circuit Breaker adheres to stringent marine standards, making it the industry standard for Blue Sea Systems electrical panels. Its advanced magnetic hydraulic trip-free design ensures that the breaker cannot remain in the "ON" position during fault conditions, providing enhanced protection for your marine electronics.

Key Features

• Industry-standard circuit breaker for Blue Sea Systems electrical panels
• Integrates switching and circuit protection into a single device
• Designed specifically for electronics protection with Single Pole Quick Trip models
• "Trip Free" design ensures automatic disconnection during fault conditions

Specifications

General Specifications
Part Number (PN)	7201
Color	Red
Amperage	5 Amp
Delay	Standard
Circuit Breaker Type	Magnetic Hydraulic - Trip Free
Maximum Voltage	277 Volts AC / 65 Volts DC
Rated Switch Cycles	10,000 @ rated amperage and voltage

Additional Specifications

• Box Dimensions: 1" H x 2" W x 4" L
• Weight: 0.1 lbs
• UPC: 632085072018

Certifications

• Meets all American Boat and Yacht Council (ABYC) Standards
• UL 1077 Recognized
• TUV Certified
• CE marked for Europe
• CSA Certified for Canada

Compliance and Safety

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
