Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The ST CLB Circuit Breaker Block is an essential component for managing and protecting your boat's electrical system. Designed specifically for marine applications, this 6-position breaker block with a negative bus ensures reliable performance and easy installation, helping you maintain a safe and efficient electrical setup on your vessel.
Features

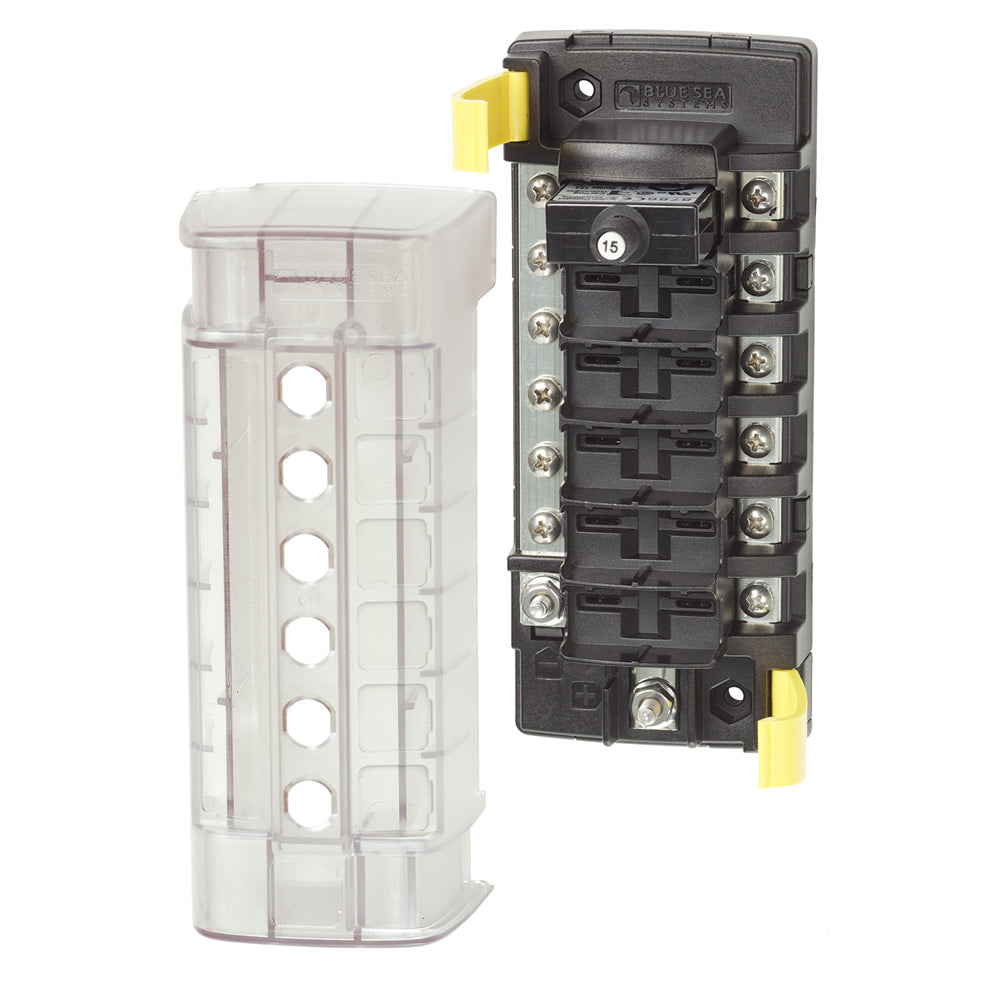

- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals for enhanced conductivity and corrosion resistance

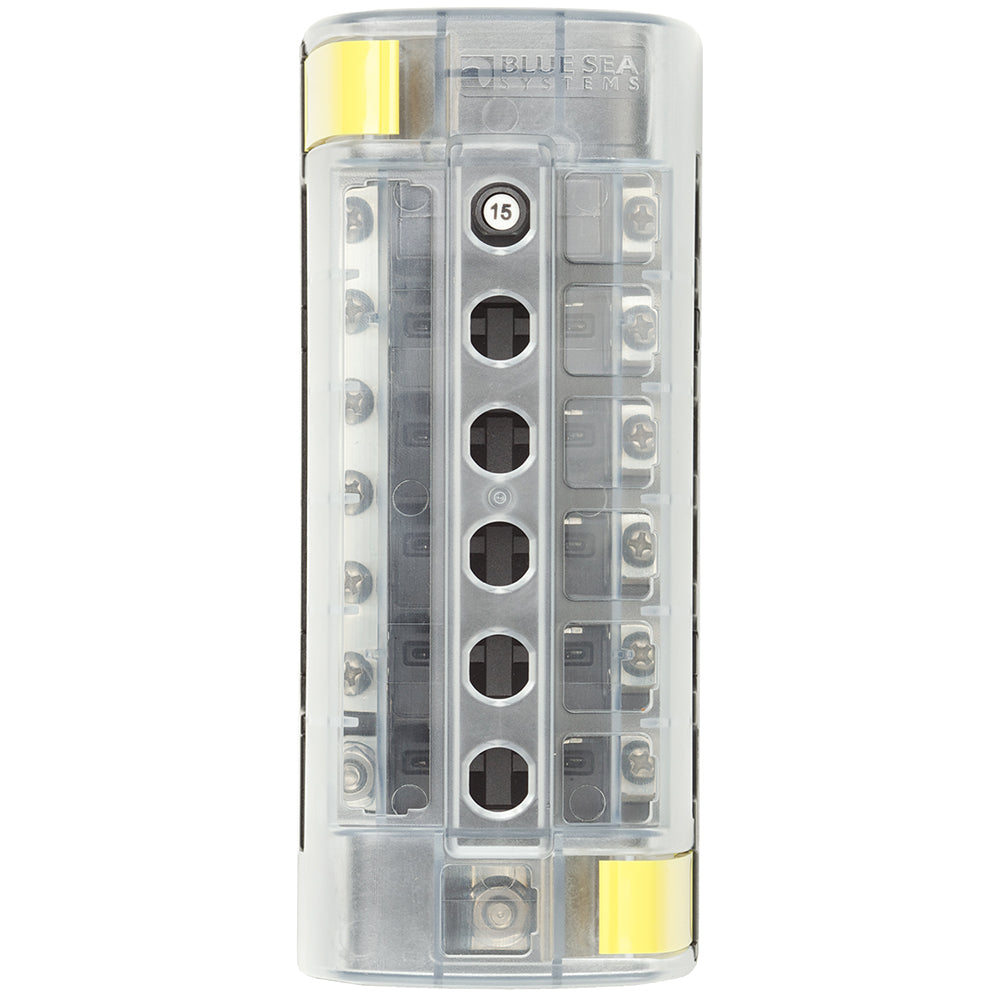

- Clear insulating cover with square format label recesses, meeting ABYC/USCG insulation standards
- Easy-to-open clip-on cover for convenient access
- Breakouts provide wire access in two directions for versatile installation
- Accepts ring terminals for secure connections

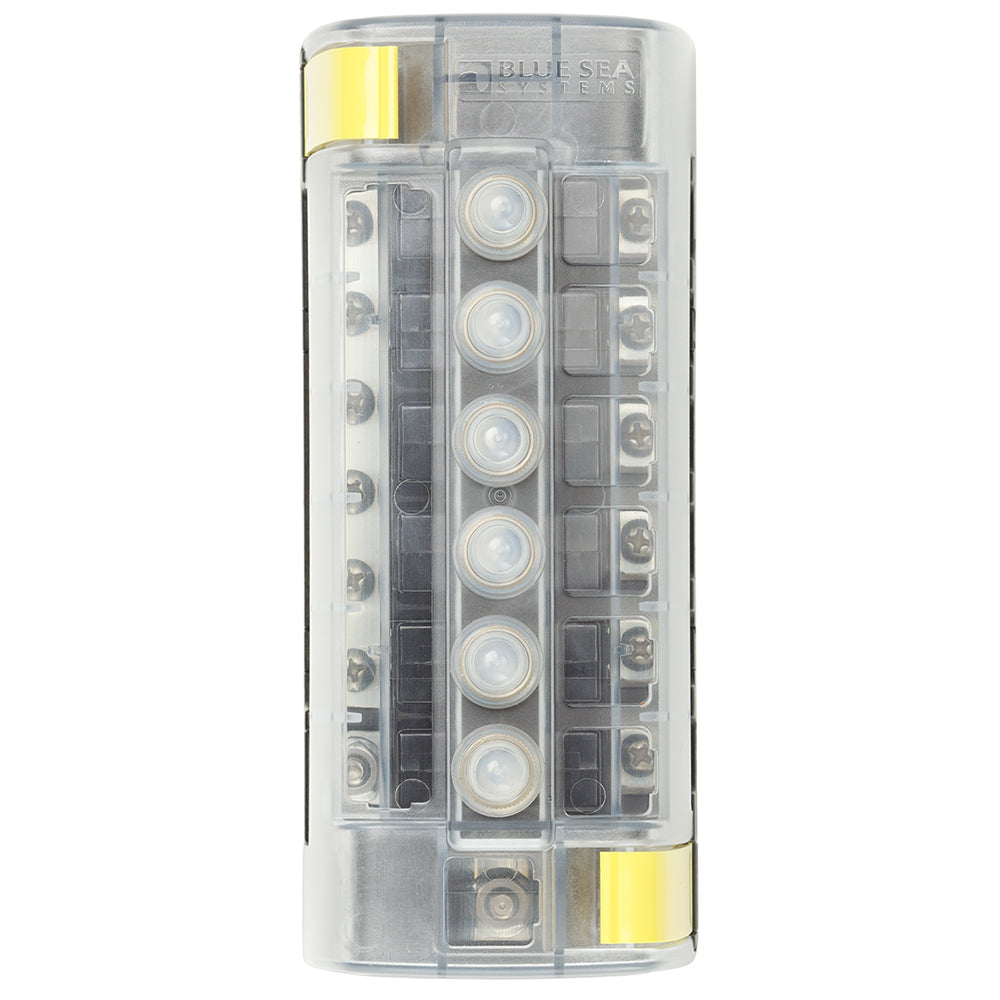

- Optional push-button waterproof boots or dress nuts can be installed over the cover for added protection
Specifications
| Feature | Details |
|---|---|
| Circuits | 6 |
| Maximum Amperage | 100A (per block) / 32A (per circuit) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) or #8 Nut |
| Negative Bus | Yes |
| Source | Common Source |
| Operating Temperature Range | -10° C to 60° C |
| Mounting Centers | 5.63" (143 mm) |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock Washer |
| Height | 6.69" (169.93 mm) |
| Weight | 0.75 lb (0.34 kg) |
| Box Dimensions | 3"H x 5"W x 11"L |
| Additional Weight | 0.9 lbs |
| UPC | 632085050528 |
