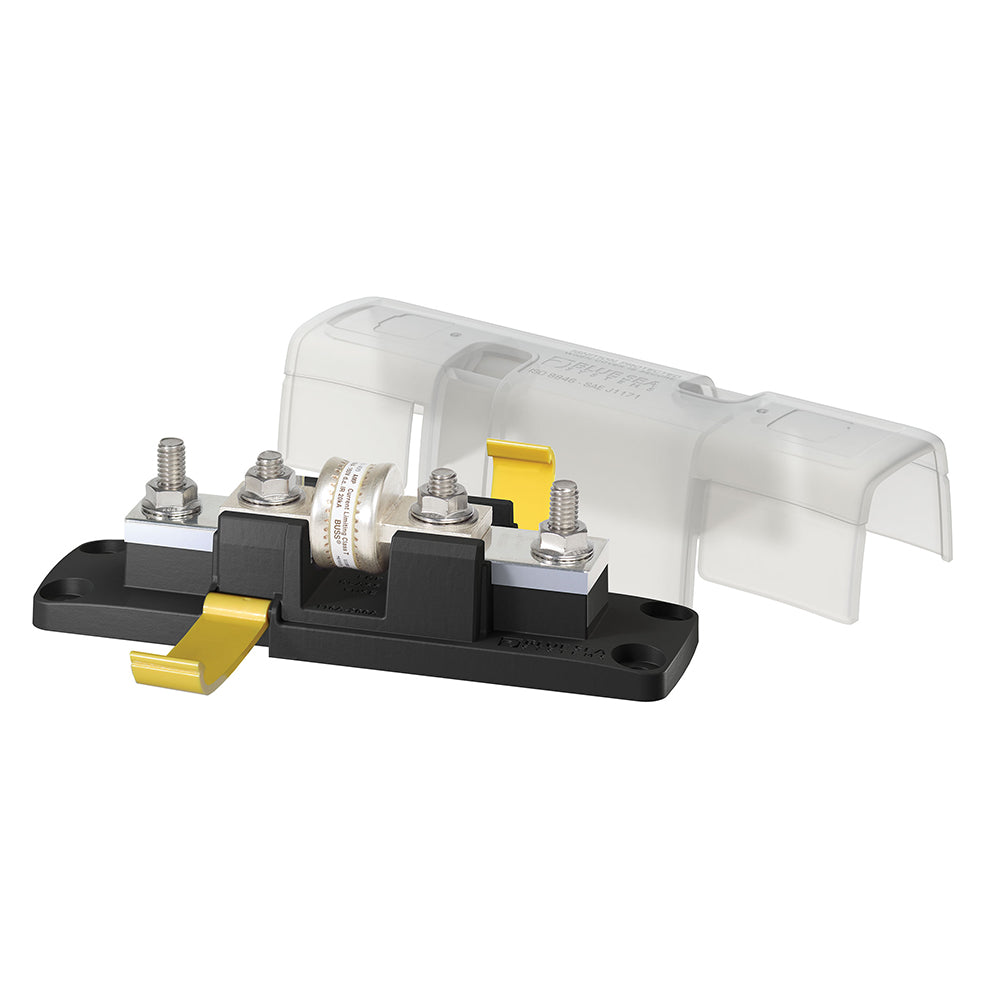

Blue Sea 5007100 Class T Fuse Block w/Insulating Cover - 110 to 200A

Ensure your boat's electrical system is protected with our Class T Fuse Block with Insulating Cover. Designed specifically for marine applications, this fuse block provides fast-acting circuit protection for inverters and other critical electronics, keeping your vessel safe and operational even in the harshest marine environments.

Key Features

• Four-stud design allows easy installation of large cable lugs without obstruction from the fuse, facilitating clean and organized wiring on your boat.
• Insulating cover meets ABYC and USCG insulation standards, ensuring safety and reliability in marine electrical systems.
• Flexible cover breakouts enable wire access in any direction, accommodating various installation configurations on your vessel.
• Robust stud design maintains secure fuse mounting even under high-temperature conditions commonly experienced in marine environments.
• Corrosion-resistant stainless steel studs offer durability and high torque performance, essential for the salty and humid conditions onboard.
• One-piece stainless flange nuts provide safe and secure connections, enhancing the longevity of your electrical setup.
• UL 94-V0 rated base withstands high heat, adding an extra layer of protection against potential electrical hazards.

Technical Specifications

Feature	Details
Fuse Type	Class T
Current Rating	110 to 200A
Cable Size	Up to 4/0 AWG
Ignition Protected	Yes
Maximum Voltage	160V DC
Fuse Mounting Block	Tin-Plated Copper
Terminal Stud Size	5/16"-18 (M8)
Box Dimensions	3"H x 8"W x 9"L
Weight	1.2 lbs
UPC	632085500719
