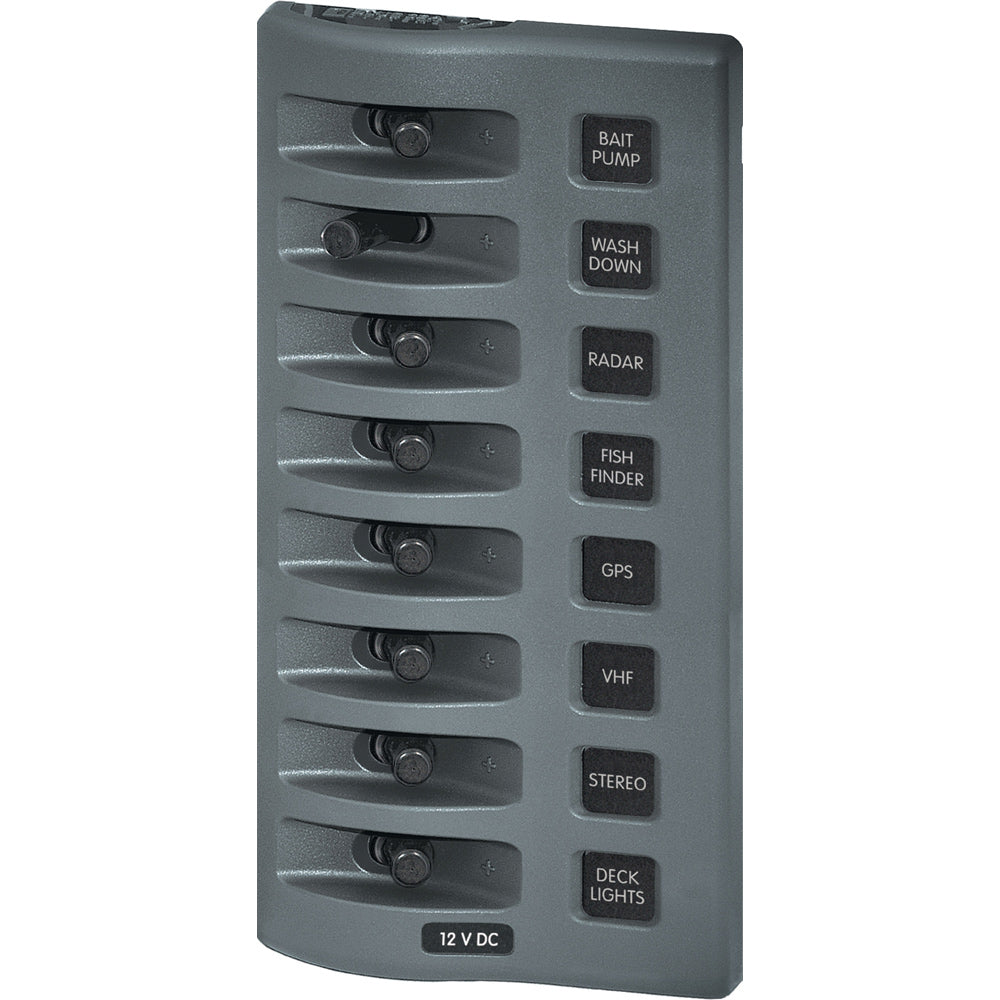

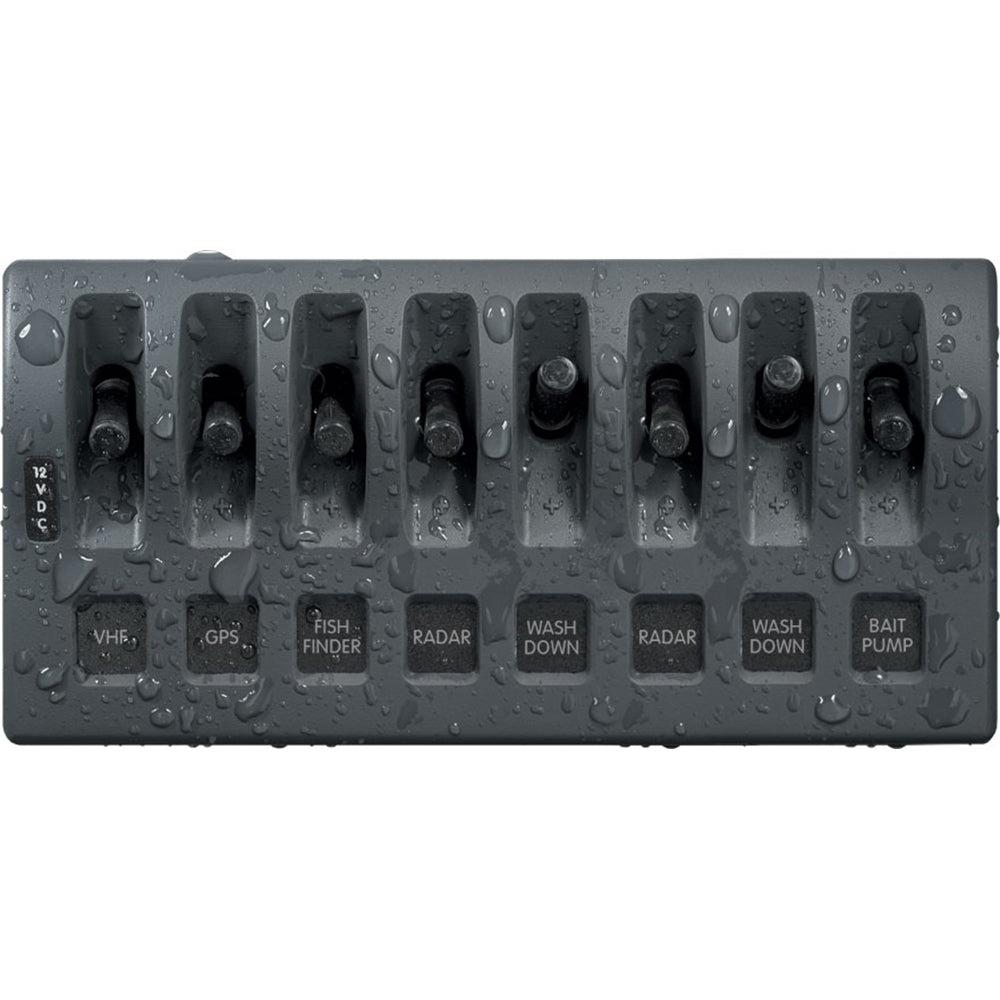

Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position
Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The WeatherDeck® 12V DC Waterproof Switch Panel is an essential addition to any marine or boating electrical system, providing reliable control and robust performance in even the most demanding environments. Designed specifically for boaters, this 8-position switch panel ensures seamless operation and easy management of your vessel’s electrical circuits.
Key Features
- Accidental Switching Prevention: Integrated switch guards minimize the risk of unintended switching, enhancing the safety of your onboard systems.
- Flexible Mounting Options: Install the panel in any of four orientations, allowing for versatile placement to fit your boat’s layout.
- Exceptional Waterproof Protection: Front panel rated IP67 when properly mounted with a watertight mounting gasket, providing excellent protection against moisture and harsh marine environments.
- UV Stabilized Faceplate: The weather-resistant faceplate is designed to withstand UV exposure and easily snaps on and off, allowing access to internal components while concealing mounting screws for a clean, professional look.
Technical Specifications
| Feature | Description |
|---|---|
| Waterproof Rating | IP67 (when properly mounted) |
| Number of Positions | 8 |
| Nominal Voltage | 12V DC / 24V DC |
| Circuit Protection | None |
| Maximum Amperage (per circuit) | 15A @ 12V DC |
| Panel Cumulative Rating | 45A |
| Material | Reinforced Polycarbonate |
| Dimensions | Height: 7.70" (195.58 mm) Width: 3.88" (98.55 mm) Depth: 2.50" (63.5 mm) |
| Weight | 1.55 lb (0.7 kg) |
| Power Type | DC |
| Max Breaker Quantity | 8 |
| Voltage | 12/24V DC |
| UPC | 632085043094 |
Packaging Specifications
| Feature | Description |
|---|---|
| Box Dimensions | 4" H x 6" W x 10" L |
| Box Weight | 1.2 lb |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
