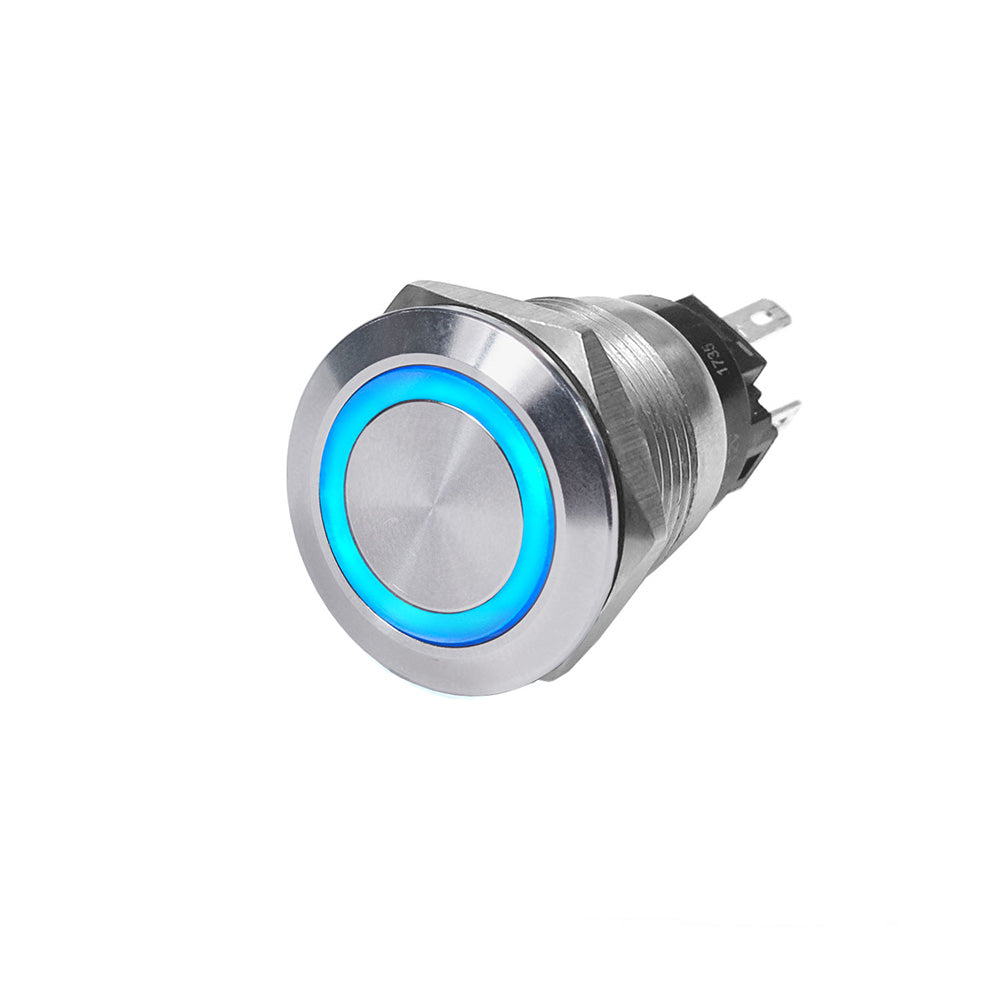

Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A

The 4161 SS Push Button Switch is engineered for marine and boating applications, offering dependable performance in harsh marine environments. Its blue construction not only adds a distinctive look but also ensures durability against corrosion and wear, making it an essential component for your boat's electrical system.

Key Features

• Handles up to 10A continuous current, suitable for various marine electrical setups.
• Available in Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST) configurations.
• Configurable wiring options for normally open or normally closed circuits.
• Includes .110 inch quick connect terminals for swift and secure installation.
• Independent LED illumination with separate power contacts enhances visibility under low-light conditions.

Electrical Specifications

Parameter	Specification
Action	OFF-(ON)
Amperage	10A @ 12V DC
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Switching Cycles	18,000

Environmental Specifications

Parameter	Specification
Minimum Operating Temperature	-10° C
Maximum Operating Temperature	70° C
Minimum Storage Temperature	-55° C
Maximum Storage Temperature	85° C

Physical Specifications

Parameter	Specification
Color	Blue or Stainless
Illumination	Independent – Separate contacts for LED power
Mounting Hole	19mm
Termination	5 – 0.110 inch Quick Connect terminals
Box Dimensions	2"H x 3"W x 5"L
Weight	0.1 lbs
UPC	632085041618
