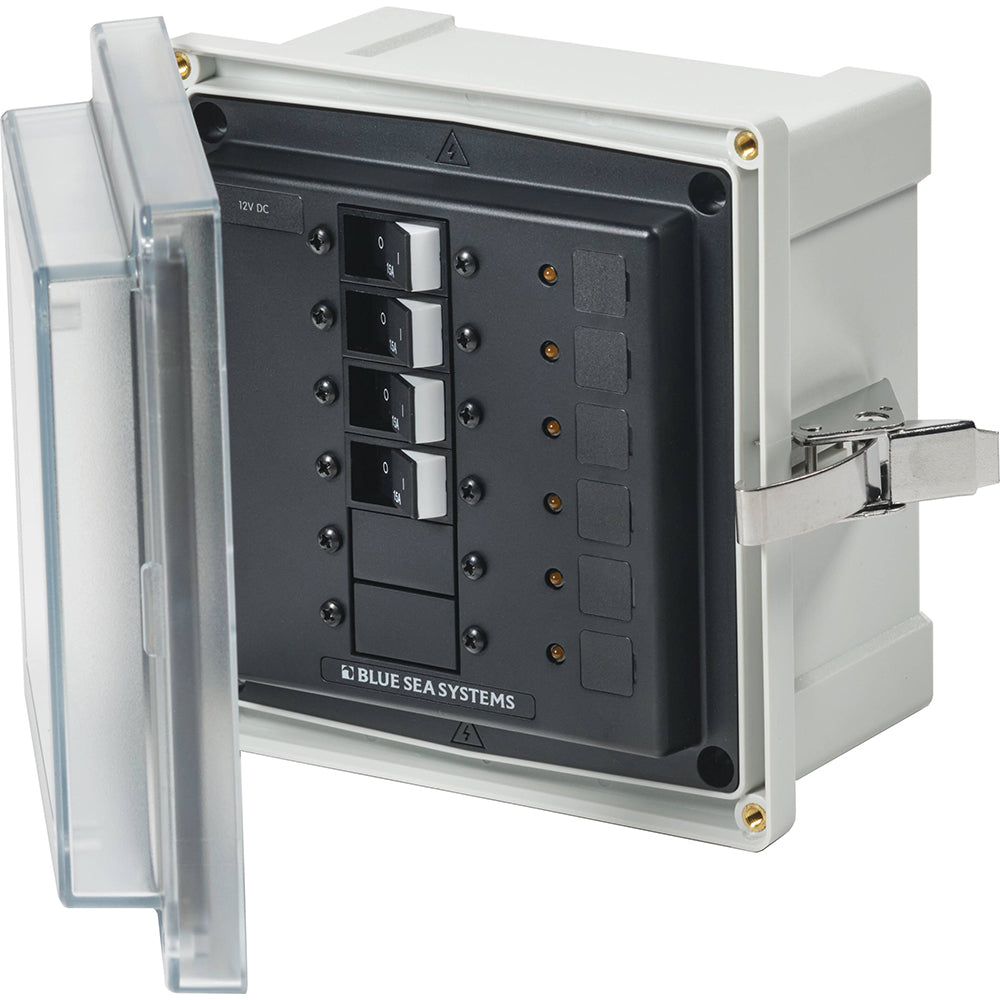

Blue Sea 3134 - SMS Panel Enclosure w/4 Branch (12/24V) - 12/24V DC

The 3134 SMS Panel Enclosure is the ideal solution for securely housing DC circuit breakers and other sizable frame devices in your marine or boating electrical system. Designed for both 12V and 24V applications, this sturdy enclosure ensures reliable performance and easy maintenance while withstanding the demanding marine environment.

Features

• Customizable blank apertures for flexible breaker loading
• Durable glass-filled polycarbonate base for enhanced stability
• Clear cover provides a straightforward view of circuit breaker status at a glance
• Overlapping cover design offers superior strength and increased gasket protection against moisture
• Seamless, oversized PUR gasket formed in place for a watertight seal
• Stainless steel hinge pin is easily removable, allowing unobstructed installation and access
• Stainless steel latch secures the cover firmly without the need for penetration, preventing water ingress
• Blank circuit positions are compatible with Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof cable glands to maintain enclosure integrity
• Integrated LED lights provide backlighting and clear ON status indication for easy monitoring

Technical Specifications

Circuit Breaker Type	4 x Branch 12/24V DC (15A)
Overall Dimensions (H x W x D)	7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
Enclosure Dimensions (H x W x D)	6" x 6" x 4" (152 x 152 x 102mm)
LED Indicators	6 x Amber LEDs indicating 12/24V DC ON status

What's Included

• 3134 SMS Panel Enclosure
• 6 x Waterproof Cable Glands
• Identification Labels
• Mounting Hardware for secure installation
• Comprehensive Instruction Manual for easy setup

Sold individually.

Quick Guide (PDF)
Brochure (PDF)
