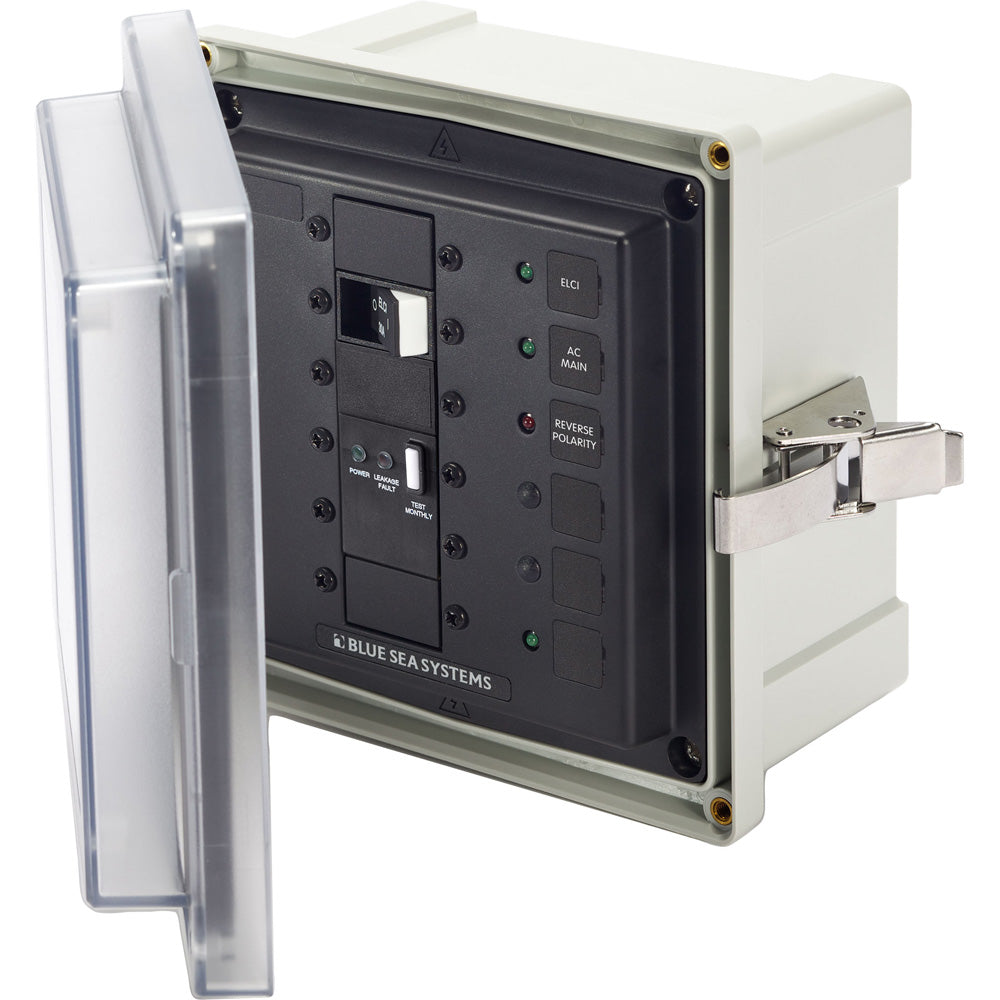

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position

The 3119 SMS Surface Mount System Panel Enclosure is expertly designed for marine and boating applications, providing a secure and reliable housing for ELCI Main circuit breakers and other substantial frame devices. Engineered to meet ABYC E-11 standards when paired with an ELCI Main circuit breaker and installed within 10 feet of the shore power inlet, this enclosure ensures both safety and compliance for your vessel's electrical system.

Features

• Includes one 120/240V AC / 50A ELCI Main and one blank circuit position for versatile installation options
• Blank apertures allow for custom breaker loading to accommodate various electrical needs
• Constructed from durable glass-filled polycarbonate, ensuring longevity and resistance to harsh marine environments
• Clear cover provides an unobstructed view of circuit breaker status for easy monitoring
• Overlapping cover design enhances strength and increases gasket protection against moisture and debris
• Features an oversized, formed-in-place seamless PUR gasket for superior sealing
• Easily removable stainless steel hinge pin facilitates unobstructed and convenient installation
• Stainless steel latch secures the cover without penetrating the enclosure, maintaining its integrity
• Compatible with Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers, thanks to blank circuit positions
• Includes high-quality stainless steel mounting hardware for secure installation
• Comes with waterproof glands to ensure a watertight seal and protect against moisture ingress
• Integrated LED lights offer backlighting and indicate when the system is powered on

Technical Specifications

Minimum Operating Temperature	-35° C
Maximum Operating Temperature	66° C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
Exterior Overall Dimensions	7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
Mounting Hardware	1/4" Diameter, #12 (6 mm)
Weight	7.00lb (3.18 kg)

What’s in the Box

• 3119 Enclosure
• 5 Waterproof Glands
• Labels for easy identification
• Stainless Steel Mounting Hardware
• Comprehensive Instruction Manual

*Sold as an Individual Unit*

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
