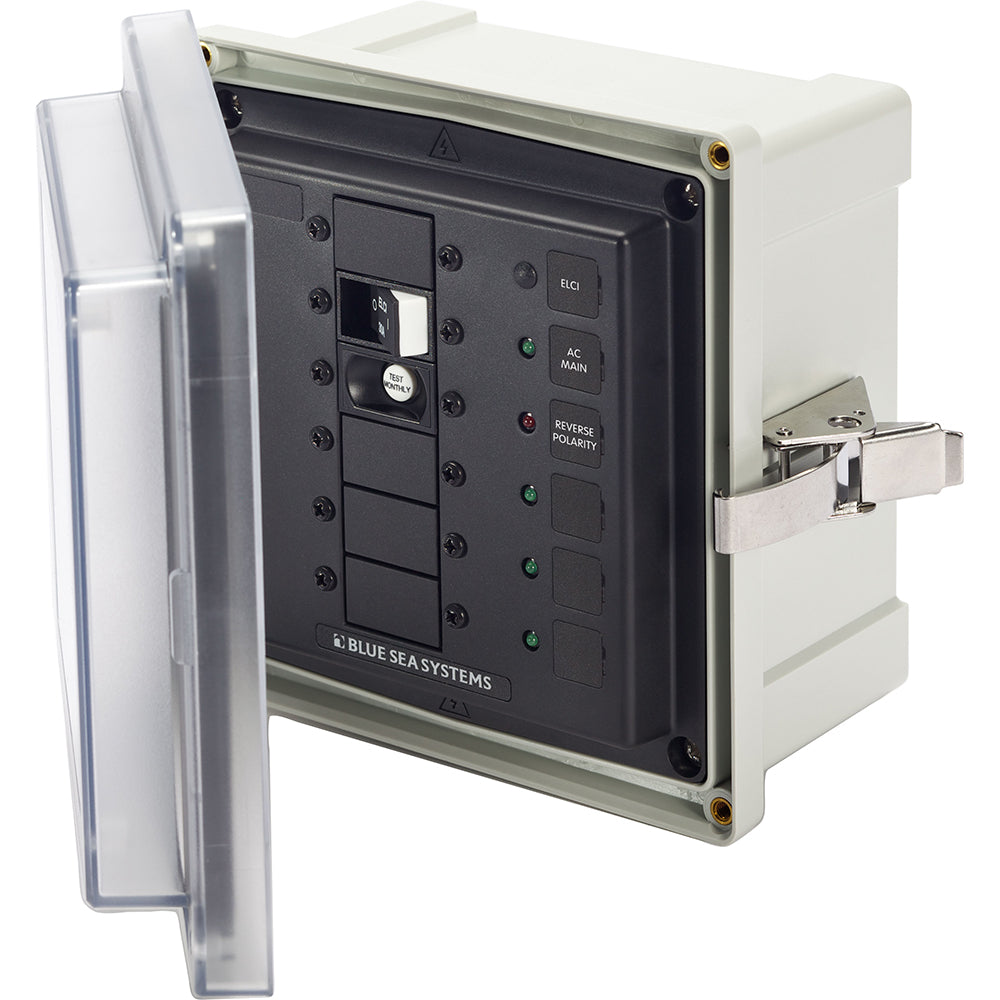

Blue Sea 3116 - SMS Panel Enclosure w/ELCI (30A) and 3 Blanks - 120V

The 3116 SMS Panel Enclosure is the ideal solution for marine and boating applications, designed to house Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and accommodate other large frame devices. Engineered to meet ABYC E-11 standards when paired with an ELCI Main circuit breaker and installed within 10 feet of an AC shore power inlet, this enclosure ensures safety and reliability on your vessel.

Key Features

• Customizable blank apertures for tailored breaker loading
• Durable glass-filled polycarbonate base for enhanced strength
• Clear cover provides a straightforward view of circuit breaker status
• Overlapping cover design offers superior strength and gasket protection
• Seamless, oversized PUR gasket formed in place for watertight sealing
• Removable stainless steel hinge pin allows for unobstructed installation
• Stainless steel latch secures the cover without penetrating the enclosure
• Blank circuit positions compatible with Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands to prevent moisture ingress
• Integrated LED lights for backlighting and ON status indication

Technical Specifications

Feature	Specification
Circuit Breaker Configuration	1 x ELCI (30A) Main 120V and 3 x Blank
Overall Dimensions (H x W x D)	7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
Enclosure Dimensions (H x W x D)	6" x 6" x 4" (152 x 152 x 102mm)
Installed LEDs	1 x Red (Reverse Polarity - 120V AC) and 4 x Green ON (120V AC)

What's Included

• 3116 SMS Panel Enclosure
• 5 Waterproof Glands
• Identification Labels
• Mounting Hardware
• Comprehensive Instruction Manual

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)

Brochure (PDF)
