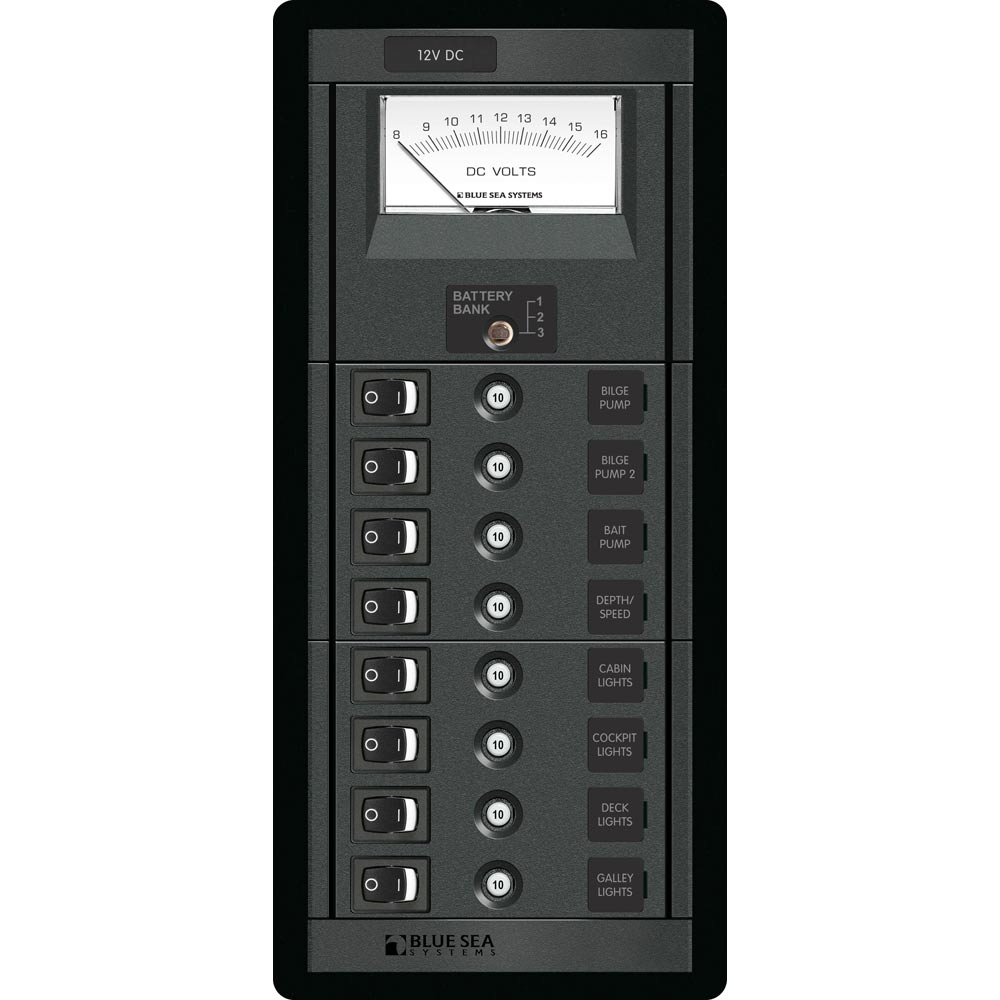

Blue Sea 1463 8 Position Switch CLB + Meter Vertical

Enhance your marine electrical system with our 8 Position Switch CLB + Meter Vertical. Designed for durability and functionality, this switch panel provides comprehensive control and monitoring for your boat's battery banks, ensuring reliable performance on every voyage.

Features

• Comes equipped with precise voltmeters and ammeters for accurate monitoring of your electrical system.
• Includes toggle switches that allow you to effortlessly monitor voltage across up to three separate battery banks.
• Comes with a 4205-Square Format Label Set for easy identification and organization of your electrical components.

Specifications

Feature	Details
Positions	8
Nominal Voltage	12V DC
Maximum Amperage*	80A per bus
Height	10.75" (273.05mm)
Width	4.88" (123.95mm)
Depth	3.50" (88.9mm)
Weight	3.66lb (1.66kg)
Power Type	DC
Box Dimensions	5"H x 10"W x 13"L
UPC	632085014636

Note: Maximum amperage ratings depend on the use of appropriately sized fuses and wiring for your specific application.

Included Components

• (8) - 7054 Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
• (8) - 7480 Rocker Switch SPST - ON-OFF
• (1) - 4205 Basic DC Label Kit - 30 Black Square Labels [LABEL]
• (1) - 8003 DC Analog Voltmeter - 8 to 16V DC (Meter)

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Information

• AC/DC: DC
• Box Dimensions: 5"H x 10"W x 13"L
• Weight: 3 lbs
• UPC: 632085014636

Quick Guides

• Quick Guide (PDF)
• Owner's Manual (PDF)
