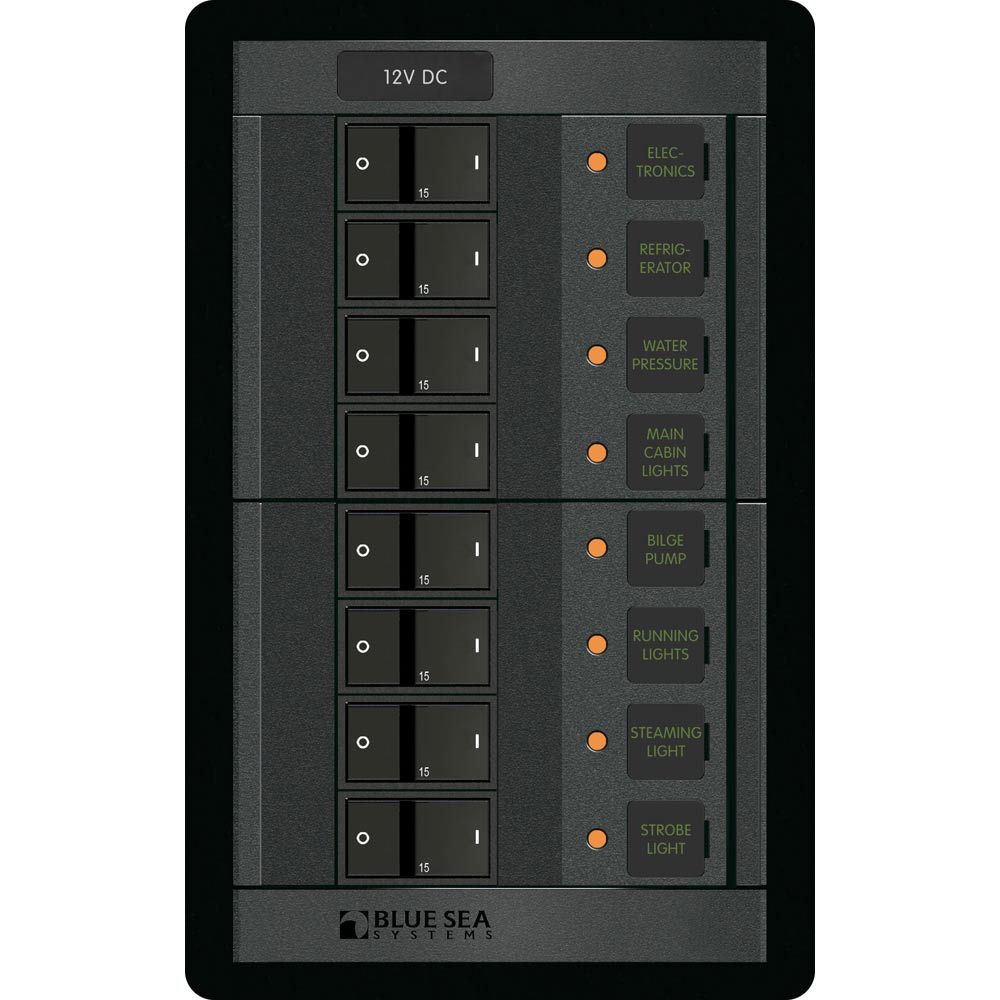

Blue Sea 1200 12V DC 8 Position - Vertical

The Vertical 8-Position 12V DC Circuit Breaker Panel is an essential component for marine and boating electrical systems, providing reliable protection for your vessel’s electrical circuits. Designed to handle demanding marine environments, this breaker panel ensures safe and efficient power distribution, making it an ideal choice for boat owners seeking durability and performance.

Features

• Supports 4 to 32 branch circuits with integrated 15 Ampere circuit breakers
• Option to include voltmeters, ammeters, and digital multimeters for precise monitoring
• Comes with the 4205-Square Format Label Set for easy circuit identification

Specifications

Attribute	Details
Positions	8
Nominal Voltage	12V DC
Maximum Amperage	100A
Height	7.75" (196.85mm)
Width	4.88" (123.95mm)
Depth	3.00" (76.2mm)
Weight	2.60 lb (1.18 kg)
AC/DC	DC
Box Dimensions	6"H x 6"W x 16"L
Box Weight	2.3 lbs
UPC	632085012007

Note: Maximum amperage ratings depend on the use of appropriately sized fuses and wiring for your specific application.

What's Included

• (8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
• (1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
