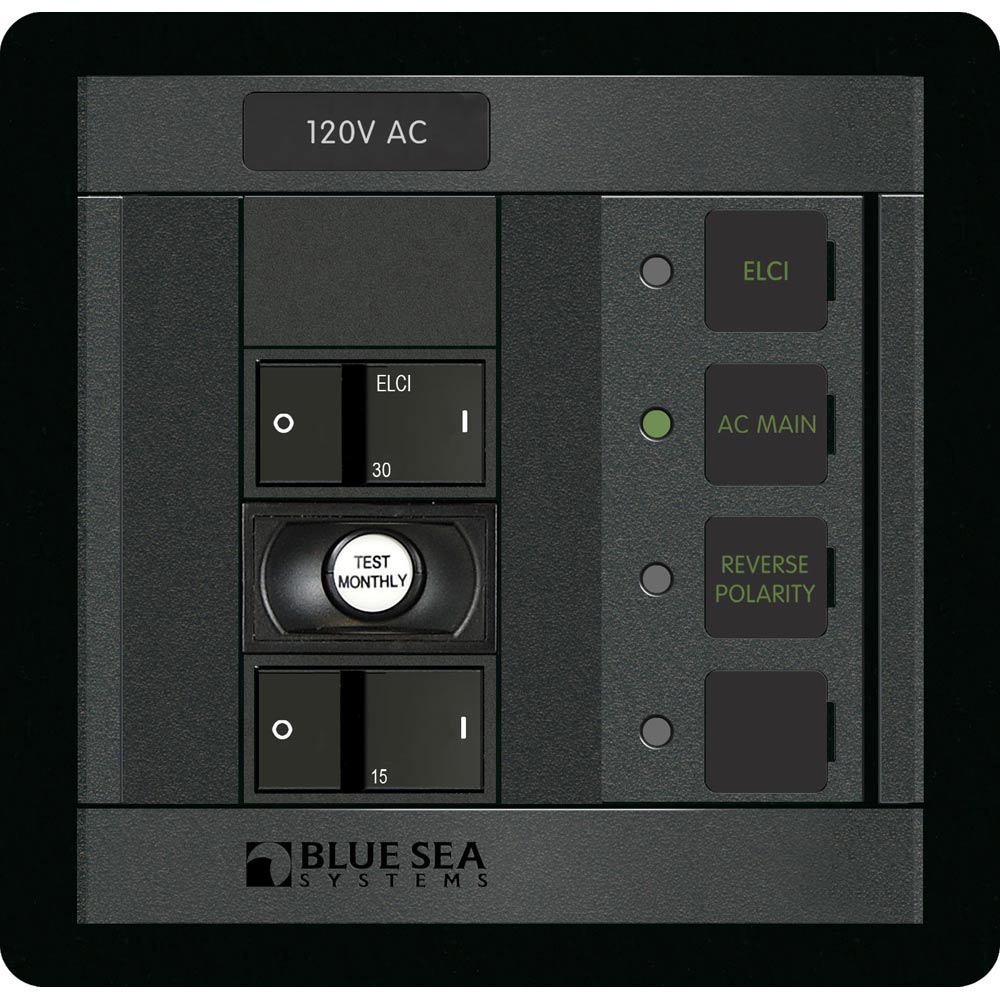

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position

The ELCI Main 30A Double Pole + 1 Position Circuit Breaker is designed specifically for marine and boating applications, ensuring safe and reliable shore power connections for your vessel. This high-performance circuit breaker provides crucial overcurrent and leakage protection, complying with ABYC E-11 standards to safeguard your boat's electrical system against potential hazards.

Features

• 30A AC ELCI Main Residual Current Circuit Breaker: Delivers robust protection with a leakage trip current of 30 mA.
• Comprehensive Protection: Meets ABYC E-11 standards, offering overcurrent and leakage protection for the entire boat shore power connection.
• 15A AC Branch Circuit Breaker: Includes a single pole 15A flat rocker circuit breaker for auxiliary electrical circuits.
• Reverse Polarity Indicator: Red LED alerts you to any reverse polarity conditions, ensuring correct electrical connections.
• Backlit Labels: All circuit label positions are backlit with green LEDs for enhanced visibility in low-light environments.
• "ON" Indicators: LEDs clearly indicate the active state of each circuit, providing immediate visual confirmation.
• Panel Label Set Included: Comes with a 4206 AC Panel Basic Square Format Label Set for easy identification and organization of circuits.

Specifications

Attribute	Details
Positions	1
Nominal Voltage	120V AC
Backlit Label	Green LED
Height	4.75" (120.65 mm)
Width	4.88" (123.95 mm)
Depth	3.99" (101.35 mm)
Weight	1.00 lb (0.45 kg)
AC/DC	AC
Box Dimensions	6"H x 7"W x 9"L (inches)
Total Weight	1.6 lbs
UPC	632085011901

What's Included

• 1 x 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
• 1 x 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Note: The green LEDs on the circuit breaker panels enhance readability in low-light conditions. All labels will illuminate when the panel is powered, irrespective of individual switch positions.

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
